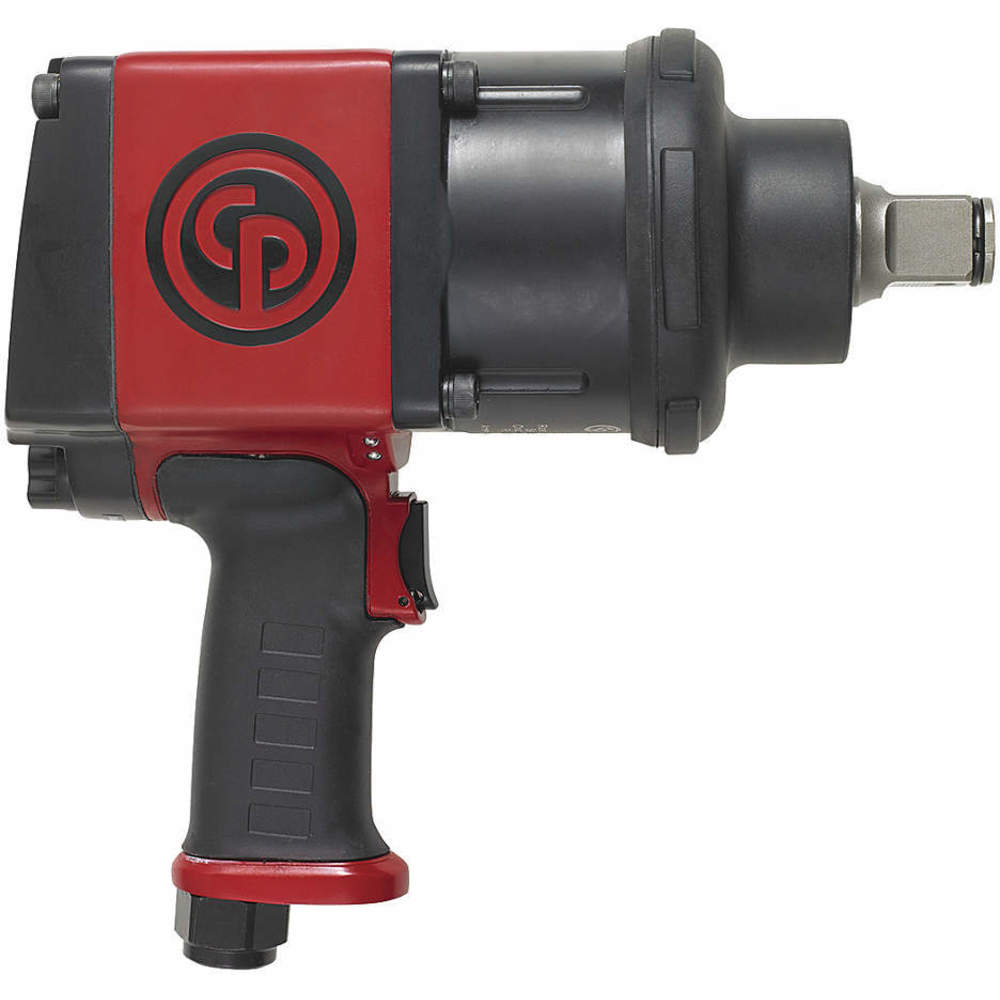

CHICAGO PNEUMATIC CP7776 Air Impact Wrench 1 Inch 5500 rpm
Get it by Thursday, Dec 25
10.00% off
€1,490.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Impact Wrench |
| Air Consumption | 33 CFM |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Anvil | Standard |
| Anvil Type | Standard |
| Average Cfm @ 15 Second Run Time | 8.2 CFM |
| Blows Per Minute | 750 BPM |
| Breakaway Torque | 1770 lbs.-ft. |
| Built-in Light | No |
| Cfm @ Full Load | 33 CFM |
| Clutch Style | Rocking Dog |
| Drive Size | 1" Square |
| Drive Type | Standard |
| Duty | Industrial |
| Duty Rating | Industrial Duty |
| Exhaust Location | Bottom |
| Fastening Torque | 1530 lbs.-ft. |
| Features | Handle Being Able To Rotate In 4 Positions For Ultimate Operator Comfort, Rubber Bumper Protecting Both Applications & Tool (Included), Tpr Handle & Side Handle-Being Able To Rotate In 4 Positions |
| Free Speed | 5000 RPM |
| Handle Material | Rubber |
| Handle Type | Pistol Grip |
| Housing Material | Aluminum, Steel |
| Impact Rated | Yes |
| Impact Sound Level | 104 dB |
| Impacts Per Minute | 750 |
| Max. Bolt Capacity | 1-1/2" |
| Max. Bolt Capacity | 1 1/2" |
| Maximum Air Pressure | 90 psi |
| Min. Hose Size | 1/2" |
| Minimum Air Pressure | 90 psi |
| Number Of Speed Settings | 3 |
| Overall Length | 11 3/8" |
| Power Source | Air Powered |
| Power To Weight Ratio | 71.7 lbs.-ft. |
| Required Pressure | 90 psi |
| Retainer Type | Friction Ring, Through Hole |
| Square Drive Size | 1" |
| Style | Pistol Grip |
| Tool Style | Compact |
| Tool Weight | 24.7 lbs. |
| Torque Range | 500 lbs.-ft. to 1100 lbs.-ft. |
| Vibration Level | 8.7 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 12.56 |
| Ship height (cm) | 15.75 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 31.5 |
| Country of Origin | TW |
Product Variants
| Product | Model | Drive Type | Anvil Type | Handle Type | Tool Style | Duty Rating | Retainer Type | Drive Size | Fastening Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

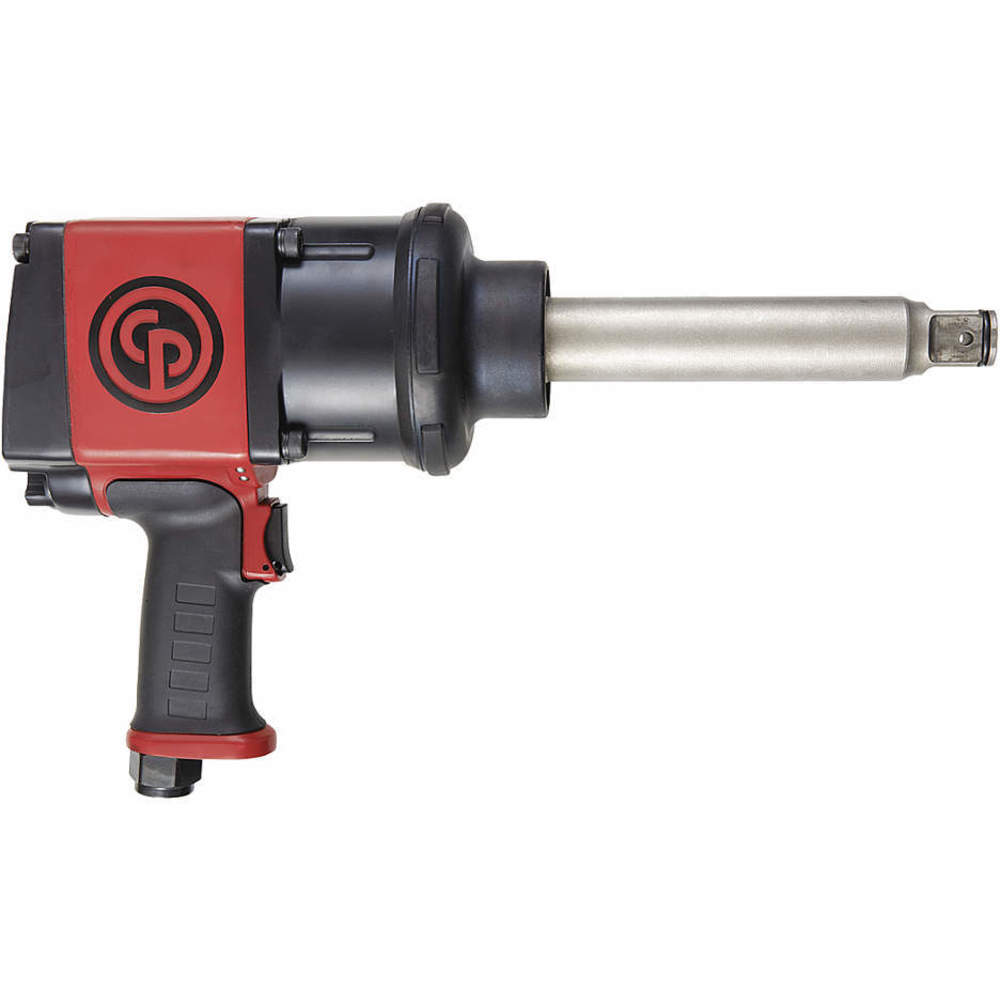

CP7776-6 | Extended | Extended | Pistol Grip | Compact | Industrial Duty | Friction Ring, Through Hole | - | - | €1,427.05 |
