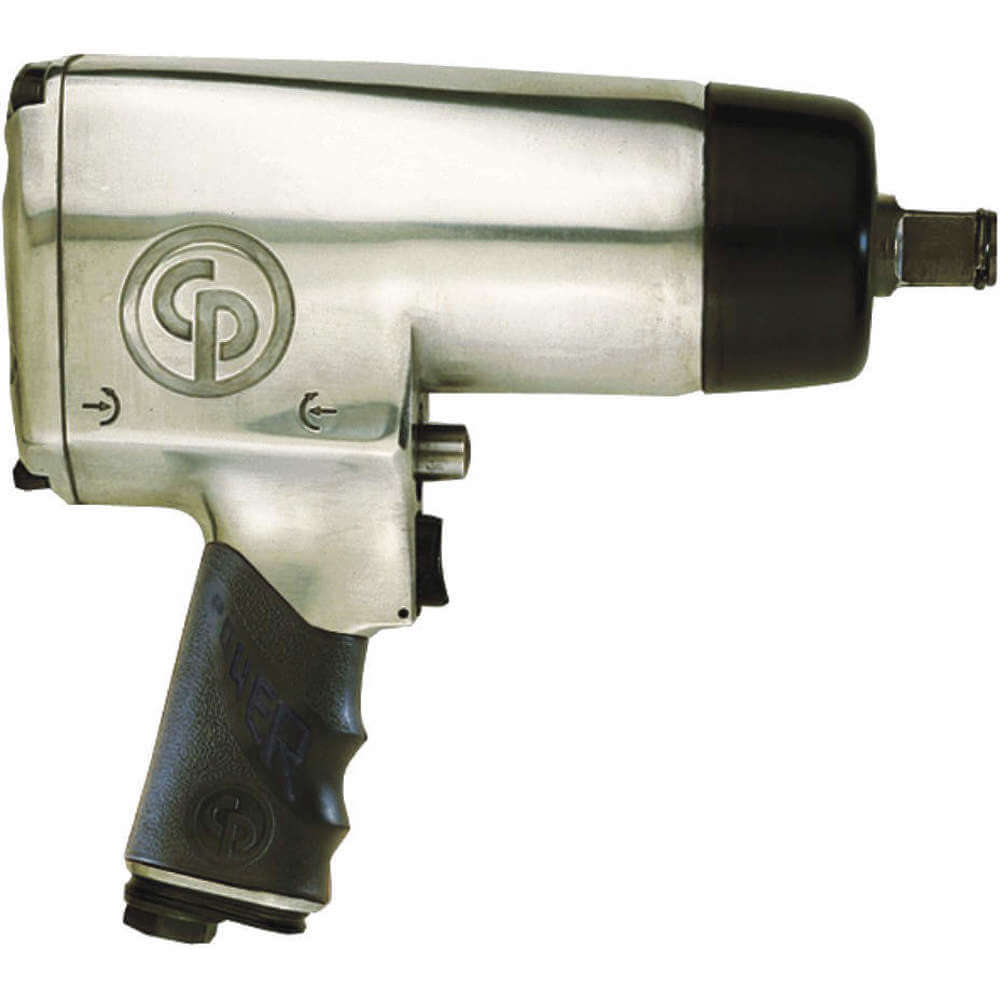

CHICAGO PNEUMATIC CP772H Air Impact Wrench 3/4 Inch Drive 4200 rpm
Item: AA2VHCModel: CP772HCross Ref: 11C938
7 In Stock
Ships within 2 days via
10.00% off
€877.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Impact Wrench |
| Air Consumption | 24 CFM |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Anvil | Standard |
| Anvil Type | Standard |
| Average Cfm @ 15 Second Run Time | 6 CFM |
| Blows Per Minute | 900 BPM |
| Breakaway Torque | 1000 lbs.-ft. |
| Built-in Light | No |
| Cfm @ Full Load | 24 CFM |
| Clutch Style | Pin Clutch |
| Drive Size | 3/4" Square |
| Drive Type | Standard |
| Duty | General |
| Duty Rating | General Duty |
| Exhaust Location | Bottom |
| Fastening Torque | 700 lbs.-ft. |
| Features | 360° Air Inlet Swivel, Comfortable Handle Grip, Dyna-Pact Oil Bath Clutch |
| Free Speed | 4200 RPM |
| Handle Material | Aluminum |
| Handle Type | Pistol Grip |
| Housing Material | Aluminum |
| Impact Rated | Yes |
| Impact Sound Level | 107 dB |
| Impacts Per Minute | 900 |
| Max. Bolt Capacity | 1-1/8" |
| Max. Bolt Capacity | 1 1/8" |
| Maximum Air Pressure | 90 psi |
| Min. Hose Size | 1/2" |
| Minimum Air Pressure | 90 psi |
| Number Of Speed Settings | 4 |
| Overall Length | 9 5/8" |
| Power Source | Air Powered |
| Power To Weight Ratio | 95.2 lbs.-ft. |
| Required Pressure | 90 psi |
| Retainer Type | Friction Ring |
| Square Drive Size | 3/4" |
| Style | Pistol Grip |
| Tool Style | Compact |
| Tool Weight | 10.5 lbs. |
| Torque Range | 150 lbs.-ft. to 700 lbs.-ft. |
| Vibration Level | 5.8 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 4.92 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 27.43 |
| Ship width (cm) | 23.88 |
| HS code | 8467115040 |
| Country of Origin | JP |
Product Variants
| Product | Model | Handle Type | Drive Type | Tool Style | Duty Rating | Drive Size | Retainer Type | Fastening Torque | Breakaway Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

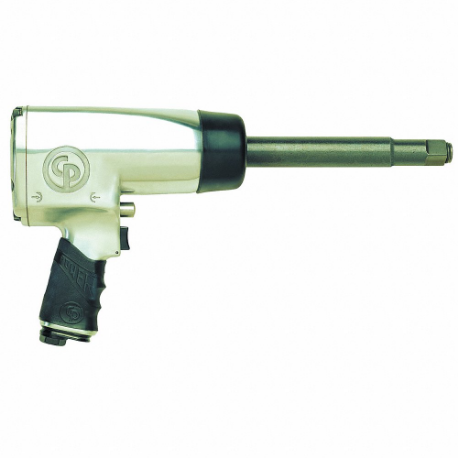

CP772H-6 | - | - | - | - | - | - | - | - | €1,022.47 |
