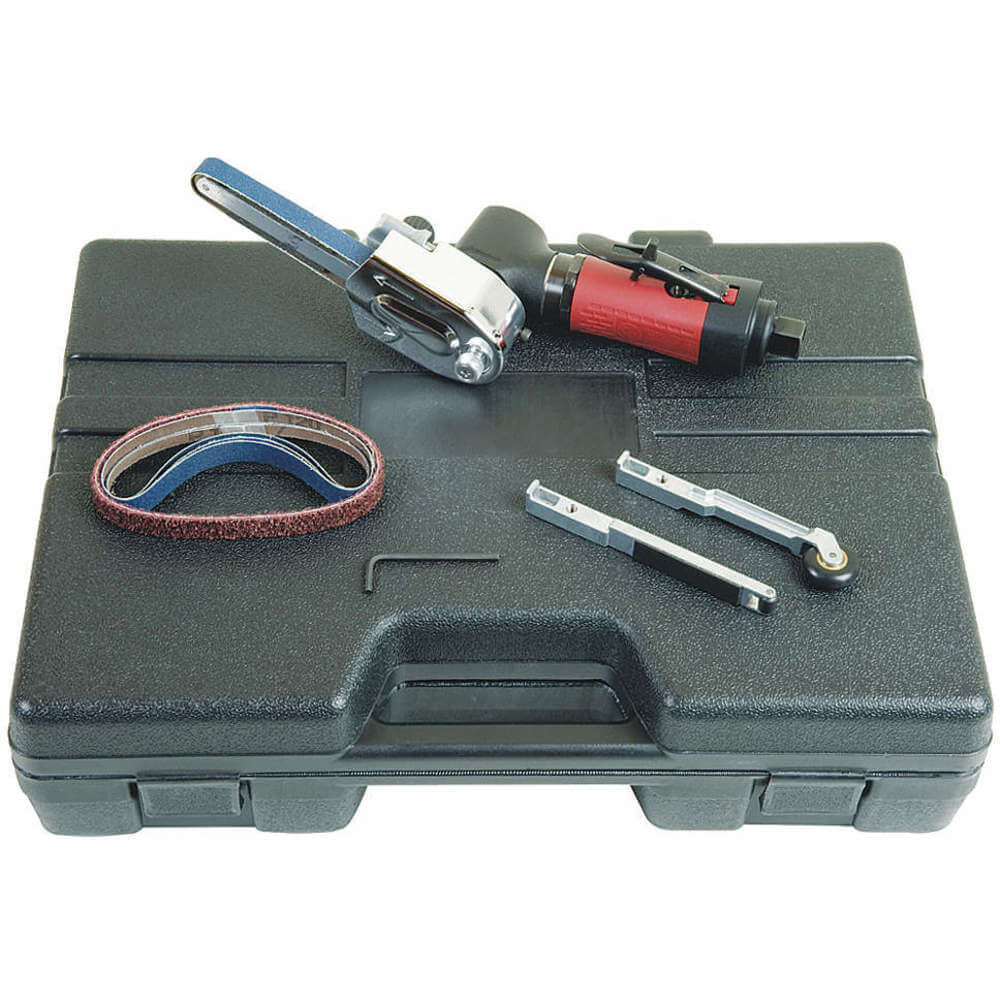

CHICAGO PNEUMATIC CP5080-3260D12K Air Belt Sander General 0.4 Hp 1/2 x 12
Item: AB6XYMModel: CP5080-3260D12KCross Ref: 22P510
7 In Stock
Ships within 2 days via
5.00% off
€1,039.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Belt Sander |
| Air Consumption | 22 CFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Arm Rotation | 360° |
| Arm Type | Pivoting |
| Average Cfm @ 15 Sec. Run Time | 5.4 CFM |
| Belt Length | 12" |
| Belt Size | 1/2" W x 12" L |
| Belt Width | 1/2" |
| Cfm @ Full Load | 21.8 CFM |
| Duty | Medium |
| Exhaust Location | Rear |
| Exhaust Type | Rear |
| Features | Tight Spots |
| Free Speed | 26000 RPM |
| Grip Type | Offset |
| Handle Material | Aluminum |
| Housing Material | Composite |
| Included | (3) Contact Arms, (5) Belts, Hex Key |
| Max. Belt Speed | 2150 SFPM |
| Min. Hose Size | 1/4" , 3/8" |
| Overall Length | 11 3/8" |
| Product Type | Air-Powered Belt Sander Kit |
| Required Pressure | 90 psi |
| Sound Level | 93 dBA |
| Speed Settings | Variable |
| Throttle | Non Locking Lever |
| Tool Length | 11" |
| Tool Series | CP5080 Series |
| Tool Weight | 1.7 lbs. |
| Vacuum Type | Non Vacuum |
| Variable Speed | Yes |
| Vibration Level | 2.5 VPM |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 39.88 |
| HS code | 8467111040 |
| Country of Origin | TW |
Product Variants
| Product | Model | Hp | Average Cfm @ 15 Sec. Run Time | Overall Length | Duty | Throttle | Exhaust Type | Min. Hose Size | Required Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

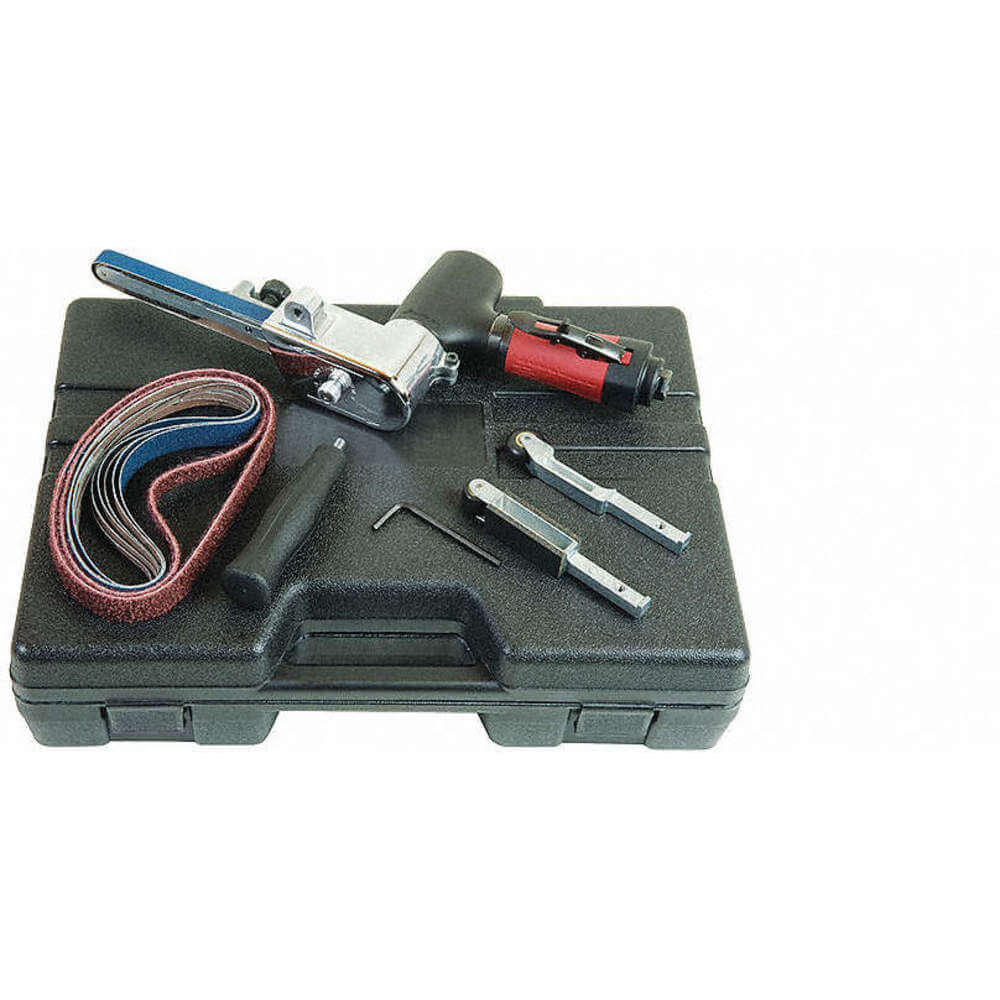

CP5080-4200H18K | 0.54 hp | 6.3 CFM | 13 3/8" | Medium | Non Locking Lever | Rear | 1/4" | 90 psi | €1,194.27 |
