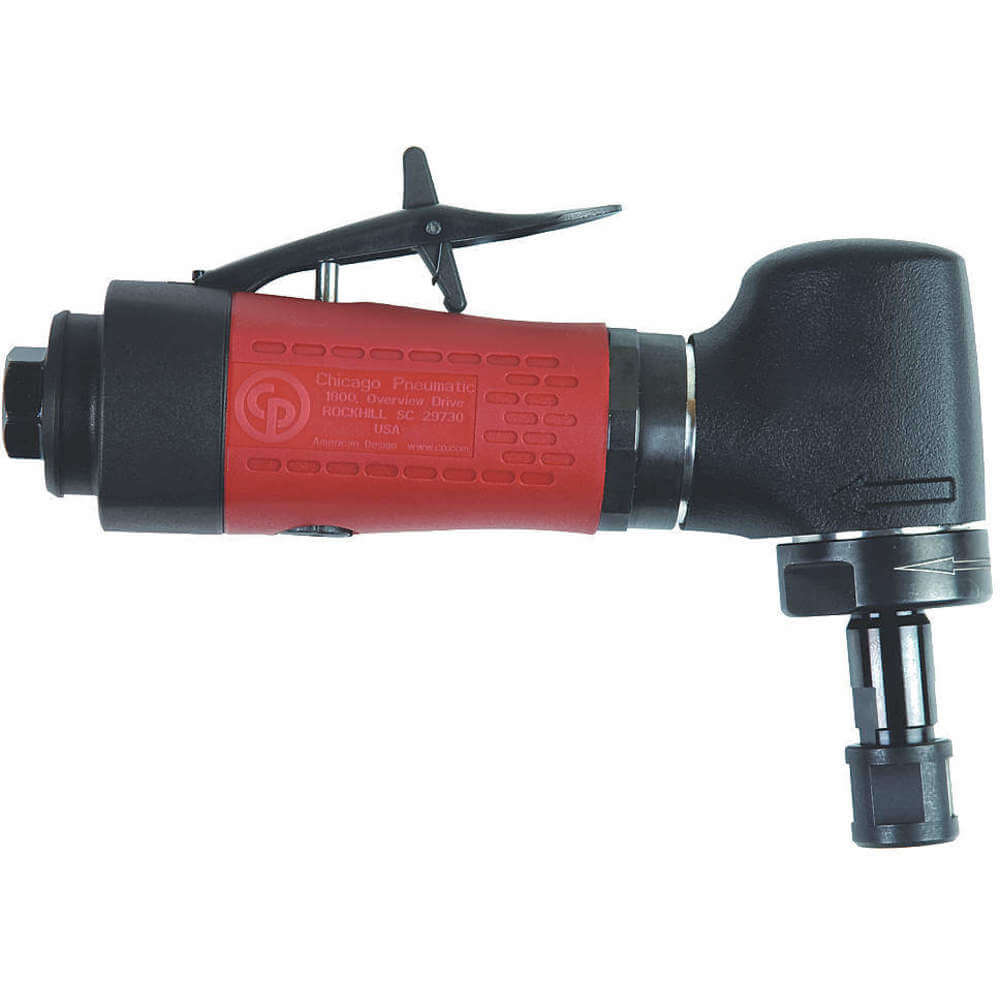

CHICAGO PNEUMATIC CP3030-330R Air Die Grinder Right Angle 30k Rpm 0.4 Hp 19cfm
Item: AB6XXRModel: CP3030-330RCross Ref: 22P488
7 In Stock
Ships within 2 days via
10.00% off
€595.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Die Grinder |
| Accessory Free Tool Change | No |
| Air Consumption | 19 CFM |
| Air Inlet | 1/4" NPT Female |
| Air Inlet Connection Size | 1/4" |
| Air Inlet Gender | Female |
| Air Inlet Type | NPT |
| Application | Ideal For Smoothing Rough Surfaces On The Face Of A Workpiece, Use In Metal Fabrication Applications With Either Carbide Burs Or Mounted Grinding Stones |
| Average Cfm @ 15 Sec. Run Time | 4.75 CFM |
| Bearing Type | Ball |
| Cfm @ Full Load | 19 CFM |
| Characteristics | Compact, Ergonomic, Gearless, Lightweight |
| Collet | 1/4" |
| Collet Size | 1/4" |
| Duty | Heavy Duty |
| Duty Cycle | Heavy Duty |
| Exhaust Location | Rear |
| Features | Easy Maintenance, High Precision, Lightweight And Ergonomic |
| Free Speed | 30000 RPM |
| Grinder Orientation | 7 Degree Angle |
| Grinder Type | Right Angle |
| Grip Style | Barrel Grip |
| Handle Material | Composite |
| Horsepower | 0.4 hp |
| Hp | 2/5 hp |
| Includes | Wrenches |
| Kit Contents | (1) Bare Tool |
| Max. Speed | 30000 RPM |
| Min. Hose Size | 3/8" |
| Minimum Speed | 30000 RPM |
| Power Source | Air Powered |
| Product Datasheet | chicago-pneumatic-cp3030-330r.pdf |
| Required Pressure | 90 psi |
| Right Angle Length | 2 1/2" |
| Right Angle Length | 2-1/2" |
| Safety Features | Safety Lever |
| Safety Stop Mechanisms | Not Applicable |
| Switch Location | Top |
| Switch Type | Safety Lever |
| Throttle | Safety Lever |
| Tool Style | Right Angle |
| Tool Weight | 1.1 lbs. |
| Variable Speed | Yes |
| Vibration Level | 2.5 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 0.84 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 11.43 |
| HS code | 8467111040 |
| Country of Origin | TW |
Product Details:
- Characteristics: Gearless, Compact, Lightweight, Ergonomic
Documentation:
Product Variants
| Product | Model | Hp | Max. Speed | Average Cfm @ 15 Sec. Run Time | Free Speed | Tool Weight | Air Consumption | Right Angle Length | Cfm @ Full Load | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

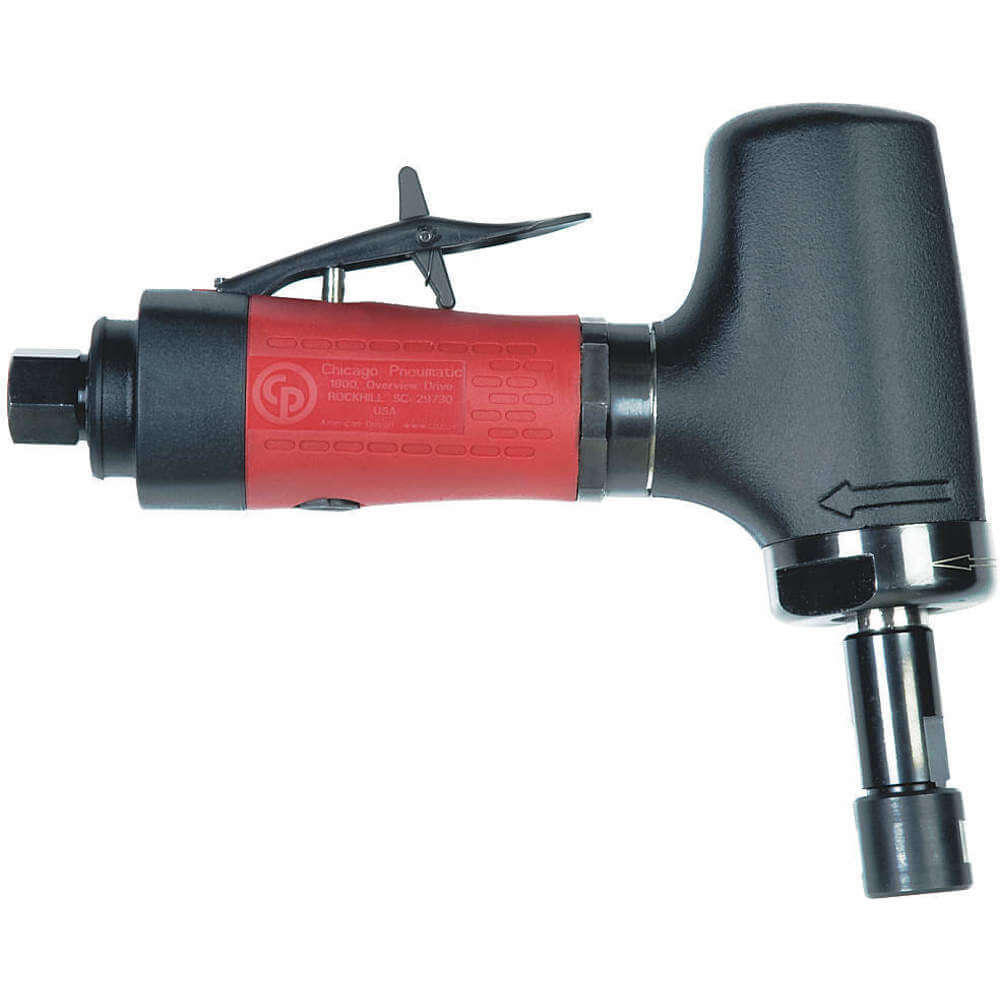

CP3030-424R | 1/2 hp | 24000 RPM | 6.25 CFM | 24000 RPM | 1.8 lbs. | 23 CFM | 4 7/16" | 25 CFM | €721.91 | |
 |

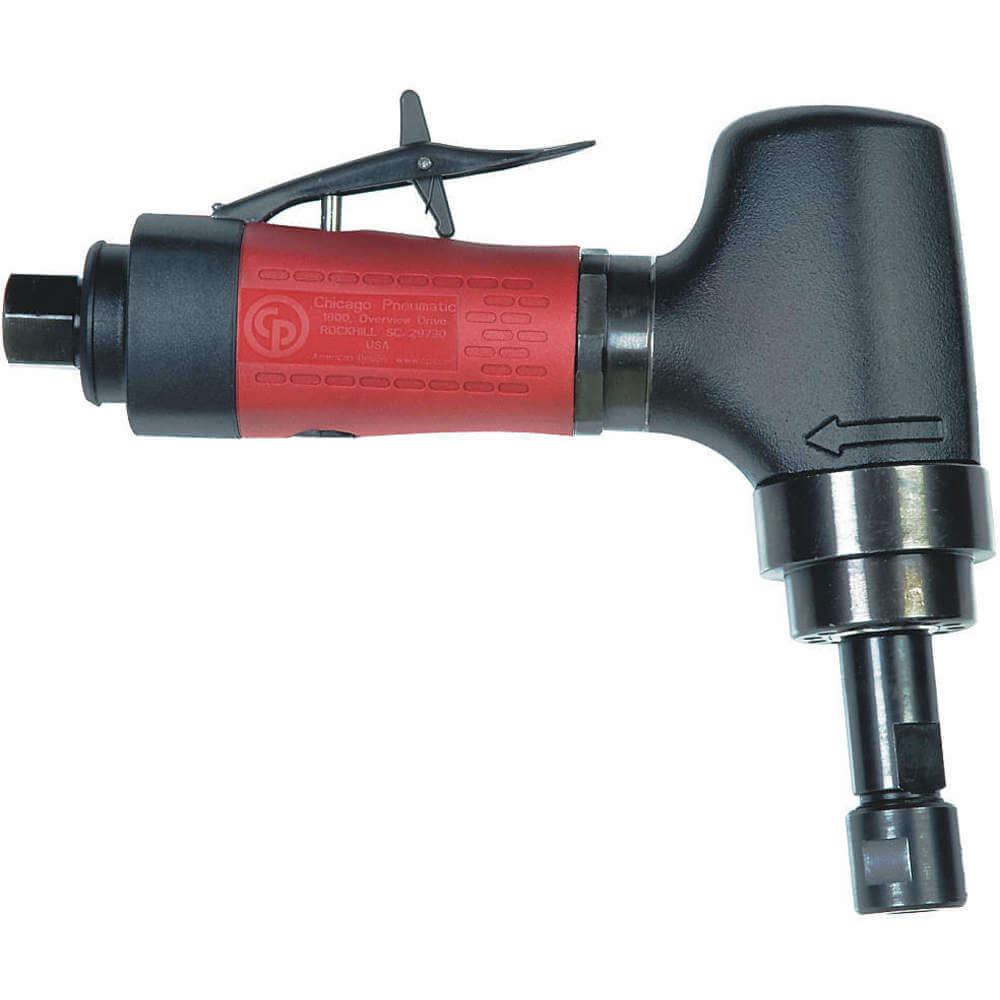

CP3030-520R | 7/10 hp | 20000 RPM | 7.5 CFM | 20000 RPM | 1.9 lbs. | 30 CFM | 4 7/16" | 30 CFM | €772.01 | |
 |

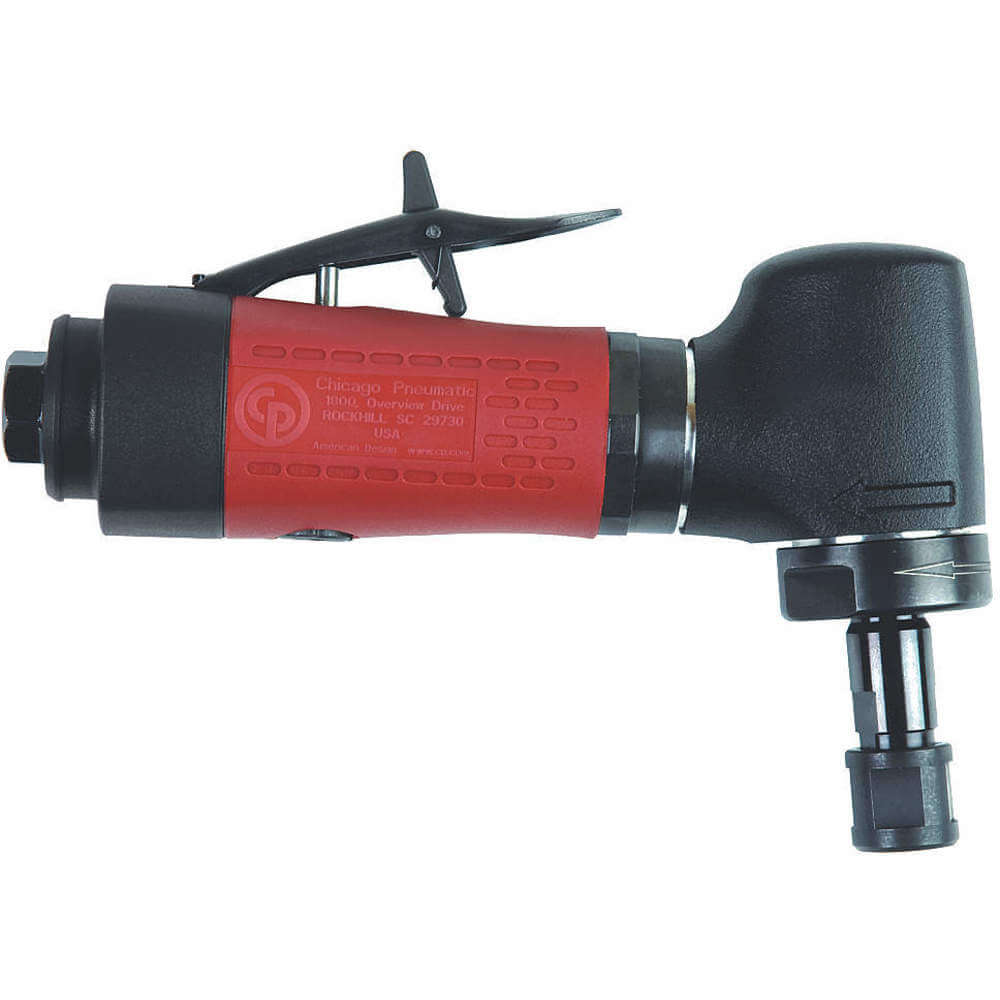

CP3030-325R | 2/5 hp | 25000 RPM | 4.75 CFM | 25000 RPM | 1.1 lbs. | 17 CFM | 2 1/2" | 19 CFM | €653.14 | |
|
CP3030-418R | 1/2 hp | 18000 RPM | 5.25 CFM | 18000 RPM | 1.8 lbs. | 21 CFM | 4 7/16" | - | €708.73 | |
|
CP3030-420R | 1/2 hp | 20000 RPM | 5.7 CFM | 20000 RPM | 1.8 lbs. | 23 CFM | 4 7/16" | 23 CFM | €710.79 |
