CHICAGO PNEUMATIC CP1117P09 Air Drill Industrial Pistol 1/2 Inch
Item: AD3TWEModel: CP1117P09Cross Ref: 40P207
7 In Stock
Ships within 2 days via
10.00% off
€748.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Drill |
| Air Consumption | 29.5 CFM |
| Air Inlet | 1/4" |
| Air Inlet Size | 1/4" |
| Application | Drilling, Reaming Holes |
| Average Cfm @ 15 Sec. Run Time | 6 CFM |
| Bearing Design | Ball |
| Bearing Type | Ball Bearing |
| Cfm @ Full Load | 29.8 CFM |
| Chuck Material | Metal |
| Chuck Size | 1/2" |
| Drill Chuck Type | Keyed |
| Drill Chuck Type | Keyless |
| Drilling Capacity In Aluminum | 1/2" |
| Drilling Capacity In Cast Iron | 1/2" |
| Drilling Capacity In Steel | 1/2" |
| Duty Rating | Industrial |
| Exhaust Location | Handle |
| Free Speed | 900 RPM |
| Gear Train | Planetary |
| Handle Material | Aluminum |
| Handle Type | Pistol Grip |
| Horsepower | 1 hp |
| Housing Material | Aluminum |
| Includes | Chuck Key, Side Handle |
| Max. Torque | 14.3 lbs.-ft. |
| Min. Hose Size | 3/8" |
| Min. Torque | 0 lbs.-ft. |
| Noise Level | 83 dBA |
| Overall Height | 6 3/4" |
| Overall Length | 8" |
| Overall Width | 3 3/8" |
| Power Source | Air Powered |
| Required Pressure | 90 psi |
| Reversible | No |
| Spindle Thread Size | 3/8"-24 |
| Style | Pistol |
| Throttle Type | Trigger |
| Tool Weight | 3.4 lbs. |
| Torque Range | 0 lbs.-ft. to 14.3 lbs.-ft. |
| Variable Speed | Yes |
| Vibration Level | 2.5 m/sq. sec. |
Shipping Info:
| Ship weight (kg) | 2.63 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 17.02 |
| HS code | 8467210050 |
| Country of Origin | TW |
Product Variants
| Product | Model | Chuck Size | Free Speed | Drill Chuck Type | Tool Weight | Overall Length | Overall Width | Overall Height | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

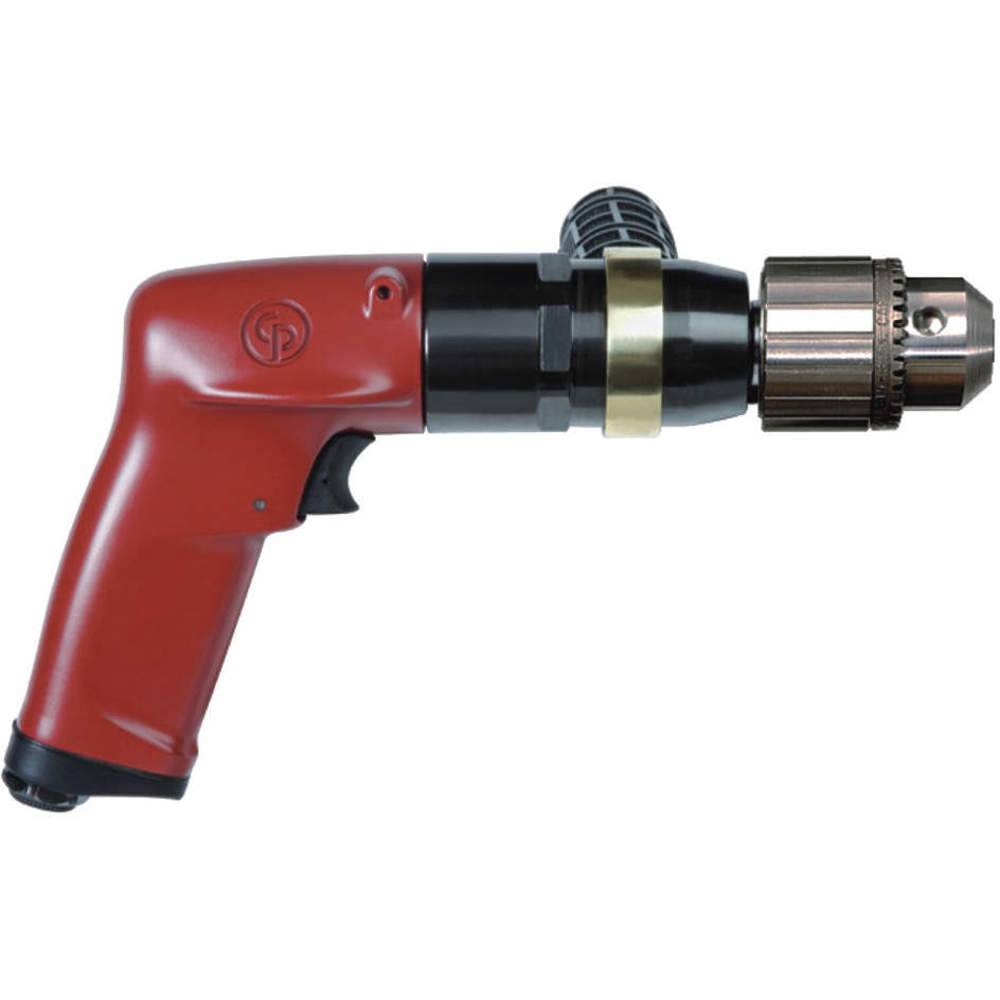

CP1117P05 | 1/2" | 500 RPM | Keyless | 3.4 lbs. | 8" | 3 1/8" | 6 7/8" | 22.2 lbs.-ft. | €821.14 | |
 |

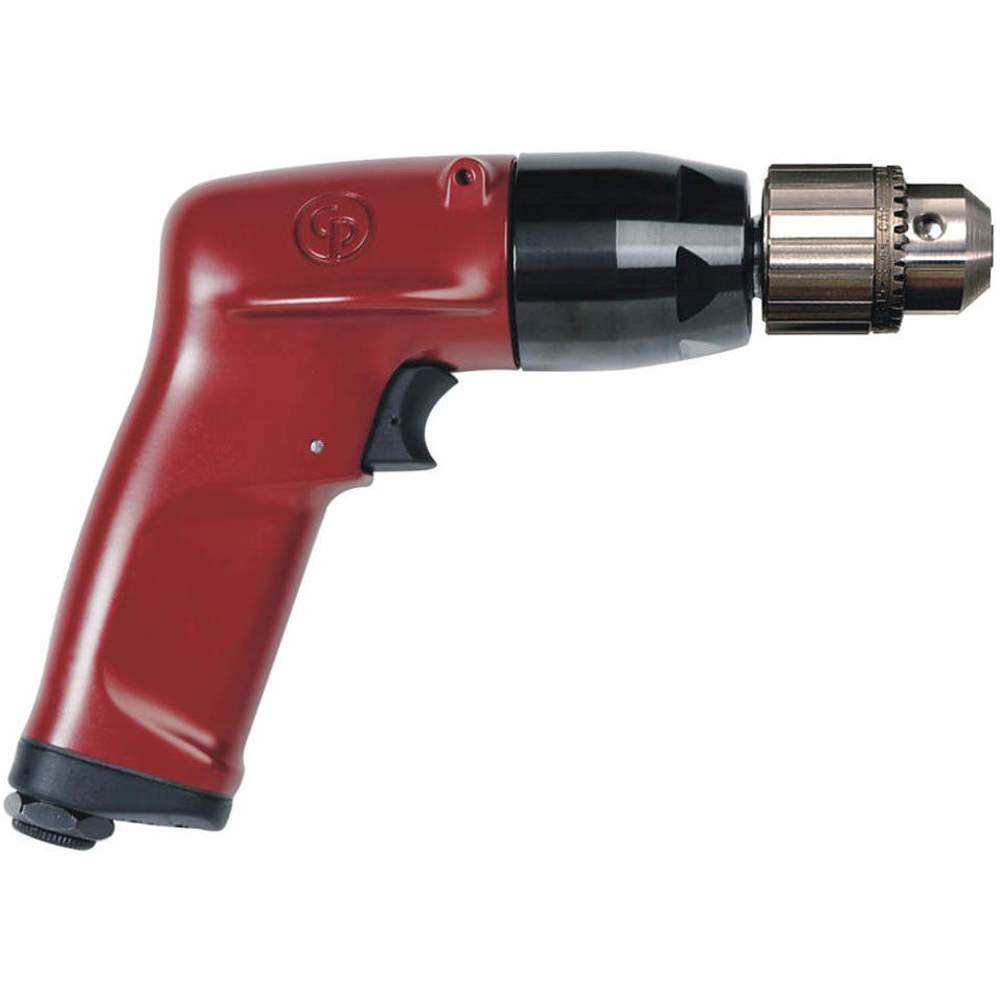

CP1117P26 | 3/8" | 2600 RPM | Keyed | 2.2 lbs. | 7 15/16" | 3" | 6 7/8" | 4.7 lbs.-ft. | €698.58 | |
 |

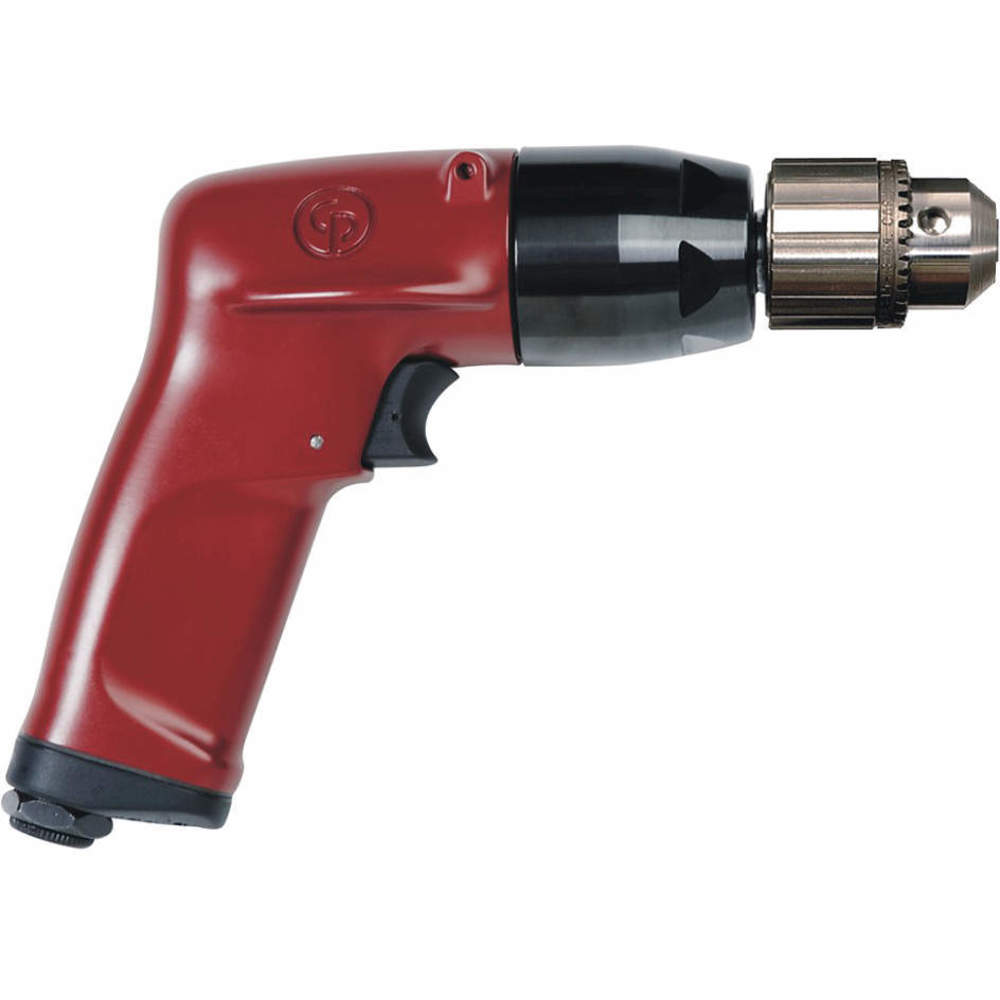

CP1117P32 | 3/8" | 3200 RPM | Keyed | 2.2 lbs. | 7 15/16" | 3 1/8" | 6 3/4" | 4 lbs.-ft. | €683.95 | |
 |

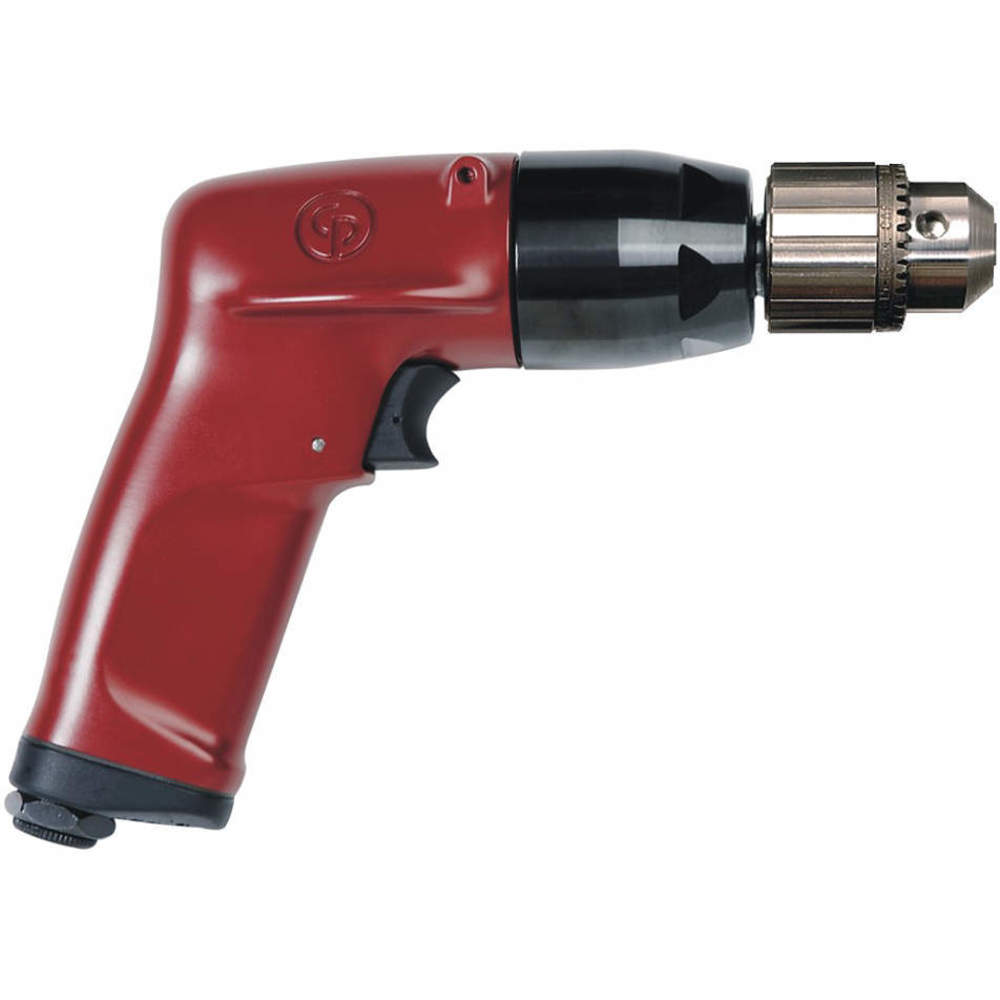

CP1117P60 | 3/8" | 6000 RPM | Keyed | 2.2 lbs. | 7 15/16" | 3 1/8" | 6 7/8" | 2.5 lbs.-ft. | €693.80 |
