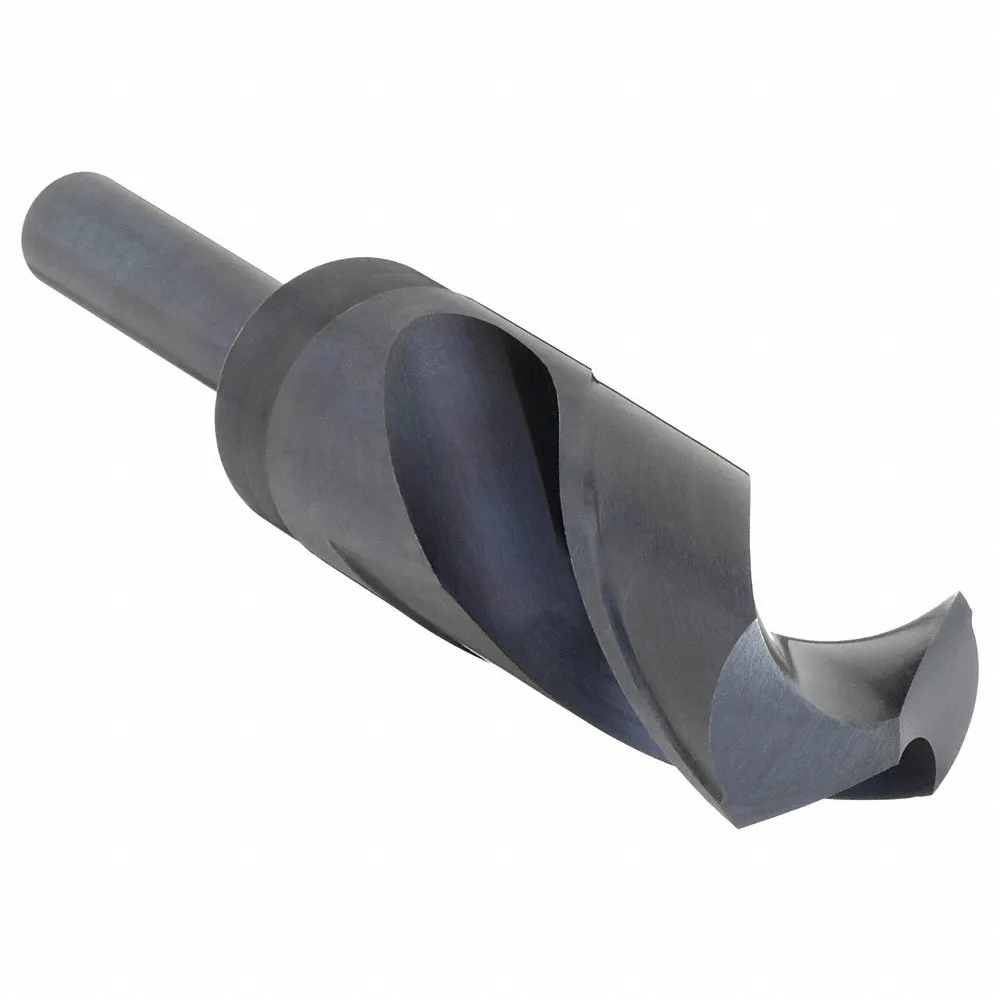

CHICAGO-LATROBE 55489 Reduced Shank Drill Bit, 1 25/64 Inch Drill Bit Size, 3 1/8 Inch Flute Length
Item: CX7HMCModel: 55489Cross Ref: 407A31
7 In Stock
Ships within 2 days via
10.00% off
€362.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1.3906 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1 25/64" |
| Drill Diameter Tolerance | -0.0015" to 0" |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 190 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 5 9/16" |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Primary Material Application | Cast Iron, Steel, Wood |
| Primary Material Application Iso Code | K, O, P |
| Shank Dia. | 1/2" |
| Shank Length | 2 1/4" |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
