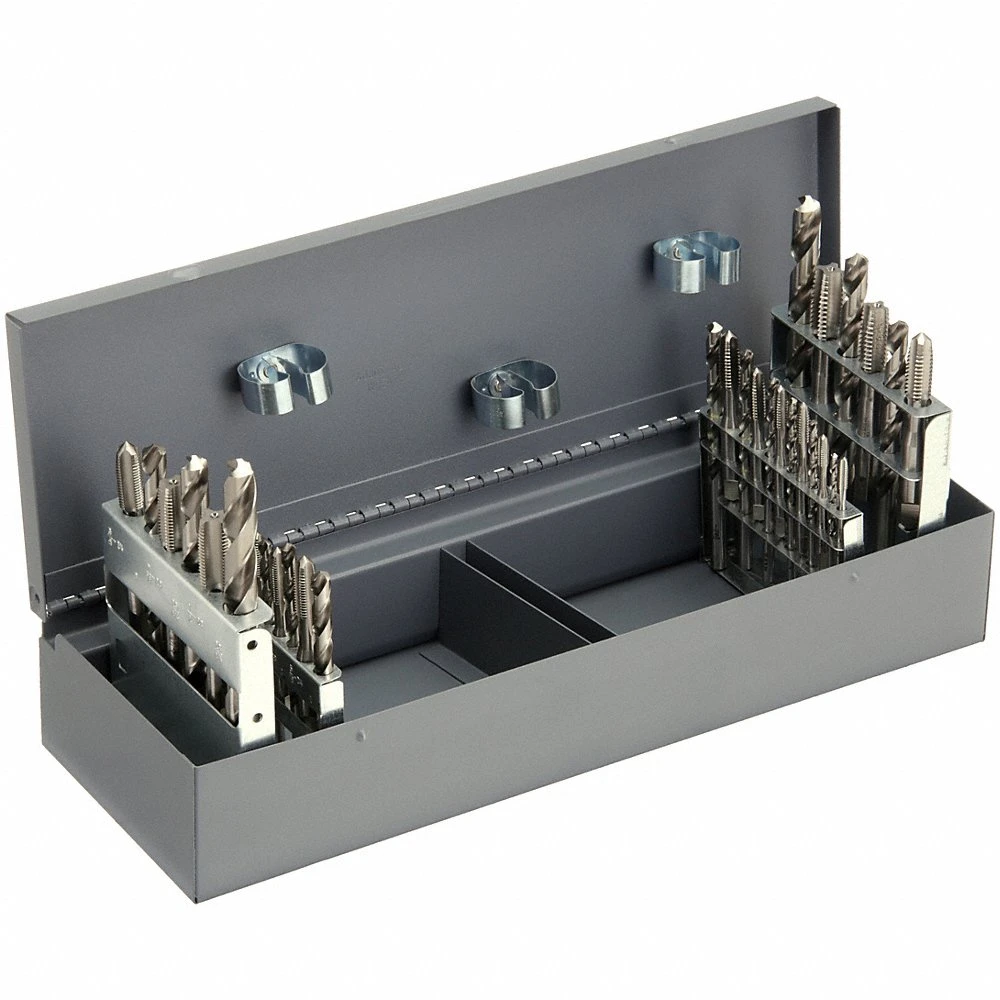

CHICAGO-LATROBE 55305 Hand Tap/drill Bit Set
Item: AB2VNBModel: 55305Cross Ref: 1P273
7 In Stock
Ships within 2 days via
10.00% off
€626.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drill and Tap Set |
| Dimensions Standard | Fractional Inch |
| Drill Bit Dia. Included | #3, #7, #15, #16, #21, #25, #29, #33, #36, 5/16", 25/64", 27/64", F, I, Q, U, 39/64" |
| Drill Bit Finish | Bright (Uncoated) |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Series | 150D Series |
| Drill Sizes | #15, #16, #21, #25, #29, #3, #33, #36, #7, 25/64", 27/64", 39/64", 5/16", F, I, Q, U |
| Features | Hand Tap |
| Finish | Bright |
| Impact Rated | No |
| Includes | Metal Index Case |
| Largest Drill Bit Dia. | 39/64" |
| Largest Drill Bit Size | 39/64" |
| Largest Thread Size | 1/2"-20 |
| Material | High Speed Steel |
| No. Of Pieces | 36 |
| Number Of Drills | 18 |
| Number Of Pieces | 36 |
| Number Of Taps | 9 |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application Iso Code | M |
| Size Range | 1/2-13, 1/2-20, 1/4-20, 1/4-28, 10-32, 12-24, 12-28, 3/8-16, 3/8-24, 5/16-18, 5/16-24, 6-32, 6-40, 7/16-14. 7/16-20, 8-32, 8-36, 10-24 |
| Smallest Drill Bit Dia. | #36 |
| Smallest Thread Size | #6-32 |
| System Of Measurement | Fractional Inch |
| Tap Chamfer | Plug |
| Tap Drill Size | #15, #16, #21, #25, #29, #3, #33, #36, #7, 25/64", 27/64", 39/64", 5/16", F, I, Q, U |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Sizes Included | #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 |
| Tap Type | Hand Tap |
| Thread Direction | Right Hand |
| Thread Limit | 2B |
| Thread Sizes Included | #12-28, 1/4"-20, 1/4"-28, #10-32, #12-24, #8-36, #10-24, 1/2-13, 1/2-20, 3/8-16, 3/8-24, 5/16-18, 5/16-24, 6-32, 6-40, 7/16"-14, 7/16"-20, 8-32 |
| Thread Standard | UNC, UNF |
| Thread Type | NC, NF |
| Threads Per Inch | 13, 14, 18, 20, 24, 28, 32, 36, 40 |
| Type | Hand Tap |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 12.35 |
| Ship length (cm) | 35.1 |
| Ship width (cm) | 10.92 |
| HS code | 8206000000 |
| Country of Origin | US |
Product Details:
- Drill Sizes (36, 33, 29(2), 25, 21, 16, 15, 7, 3, F, I, 5/16, Q, U, 25/64, 27/64, 29/64)
- Drill Style (150D)
Product Variants
| Model | Tap Type | Tap Sizes Included | Number Of Pieces | Type | Largest Thread Size | Smallest Thread Size | Number Of Drills | Number Of Taps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52581 | Spiral Point | #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | 18 | Spiral Point | 1/2"-13 | #6-32 | 9 | 9 | €306.02 | |
| 52580 | Hand Tap | #6-32, #8-32, #10-24, #10-32, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | 18 | Hand Tap | 1/2"-13 | #6-32 | 9 | 9 | €295.26 | |
| 52541 | Hand Tap | M2.5 x 0.45, M12 x 1.75 | 18 | Hand Tap | M12 x 1.75 | M2.5 x 0.45 | 9 | 9 | €295.65 | |

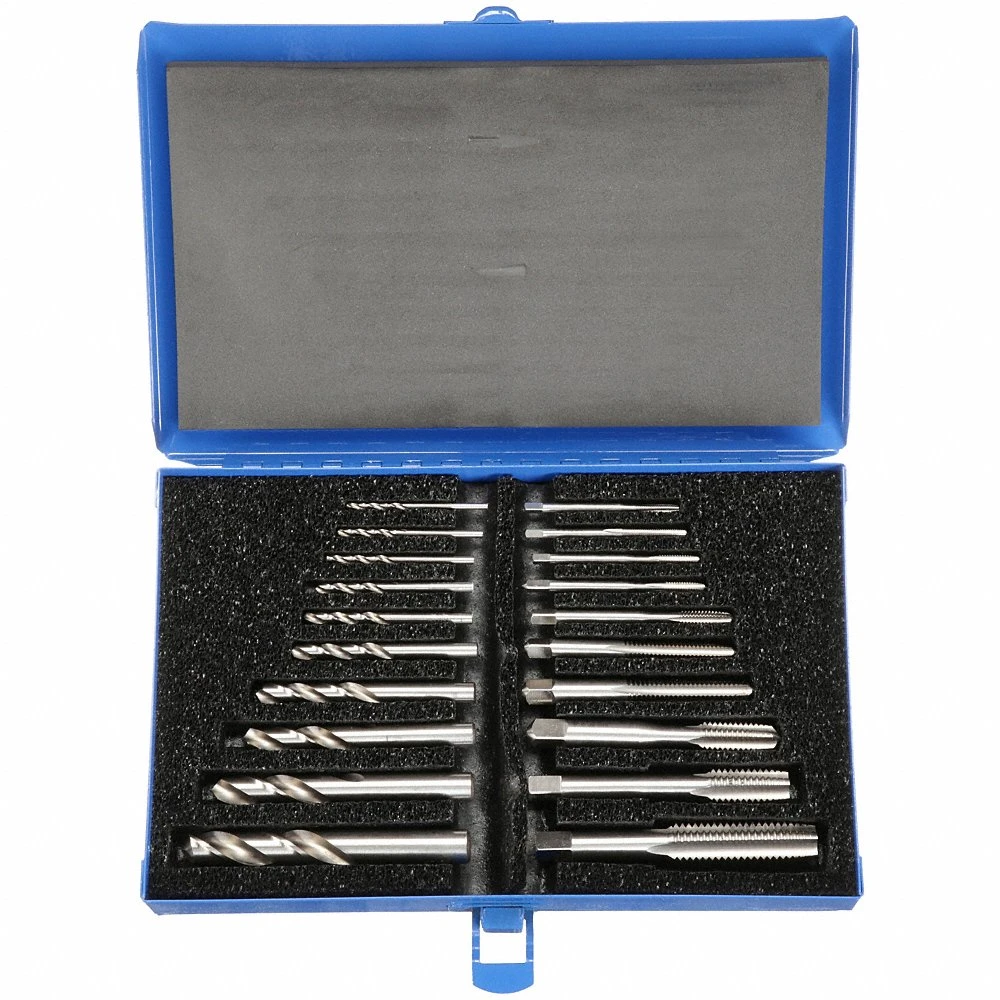

| 12910 | Hand Tap | #4-40, #5-40, #6-32, #8-32, #10-24, 1/4"-20, 5/16"-18, 3/8"-16, 7/16"-14, 1/2"-13 | 20 | Hand Tap | 1/2"-13 | #4-40 | 10 | 10 | €374.11 |
