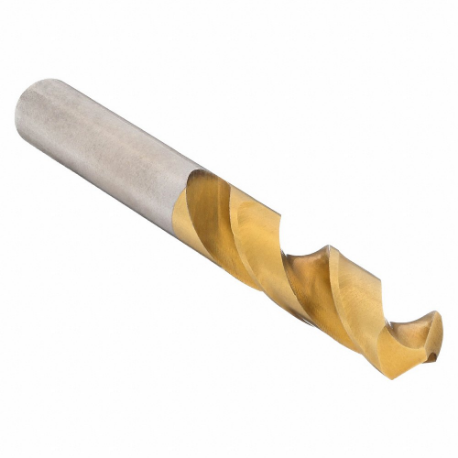

CHICAGO-LATROBE 55122 Screw Machine Drill Bit, 15/32 Inch Size, 2 1/8 Inch Flute Length, Tin Finish
Item: CQ8VGAModel: 55122Cross Ref: 10U289
7 In Stock
Ships within 2 days via
10.00% off
€39.14 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4688 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 15/32" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.1408" |
| Finish | Tin |
| Finish - Machining | Tin |
| Flute Length | 2 1/8" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 2157 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Overall Length | 3 5/8" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 0.469" |
| Shank Diameter | 15/32" |
| Shank Length | 1 1/2" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 9.85 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Overall Length | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
48701 | 0.228 | 2 7/16" | 0.234" | #1 | 1 5/16" | €5.61 | |
 |
49071 | 0.228 | 2 7/16" | 0.234" | #1 | - | €15.02 | |
 |
48371 | 0.228 | 2 7/16" | 0.234" | #1 | - | €11.75 | |
|
49080 | 0.1935 | 2 1/4" | 0.188" | #10 | - | €12.50 | |
 |
48380 | 0.1935 | 2 1/4" | 0.188" | #10 | 1 3/16" | €10.50 | |
|
49081 | 0.191 | 2 1/4" | 0.188" | #11 | - | €12.04 | |
|
48381 | 0.191 | 2 1/4" | 0.188" | #11 | - | €10.40 |
