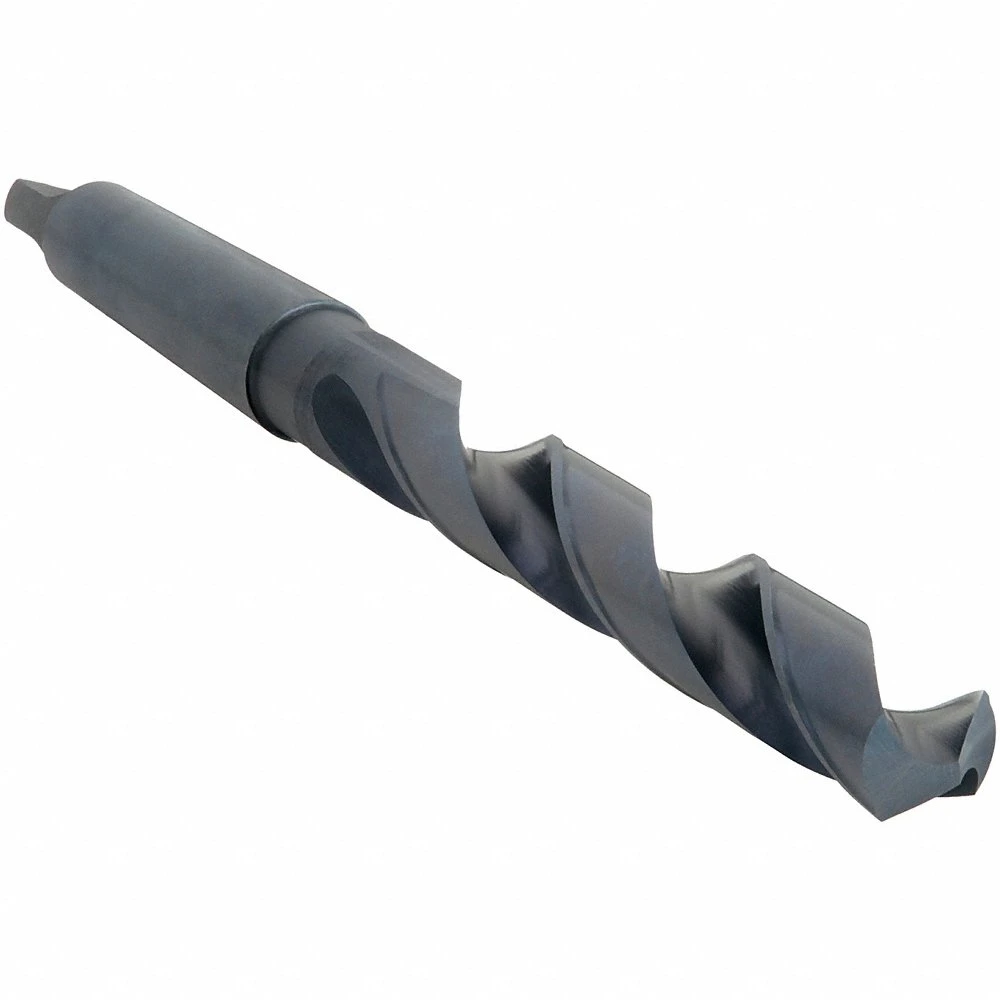

CHICAGO-LATROBE 53159 Drill Bit, 59/64 Inch Drill Bit Size, 6 1/8 Inch Flute Length, Mt3 Taper Shank
Item: CQ8TTQModel: 53159Cross Ref: 4HAT3
7 In Stock
Ships within 2 days via
10.00% off
€185.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Drill Bit |
| Application | For Alloy, Carbon And Tool Steels And Cast Iron |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.9219 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 59/64" |
| Drill Diameter Tolerance | -0.0012" to 0" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 6 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| List Number | 110 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 6 1/8" |
| Morse Taper | 3 |
| Number Of Flutes | 2 |
| Overall Length | 1 3/4" |
| Primary Material Application | Cast Iron, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, P |
| Shank Type | Taper |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch |
| Taper Shank Size | MT3 |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 28 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Drill Bit Size | Decimal Equivalent | Max. Drilling Depth | Overall Length | Price | |
|---|---|---|---|---|---|---|---|
 |
53572 | 1 1/8" | 1.125 | 7 1/8" | 11 3/4" | €369.83 | |
 |
53194 | 1 15/32" | 1.4688 | 9 1/4" | 14 7/8" | €631.38 | |
 |
51371 | 1/2" | 0.5 | 8" | 12" | €223.80 | |
|
51423 | 11/16" | 0.6875 | 8" | 12" | €244.43 | |
|
51361 | 15/32" | 0.4688 | 8" | 12" | €219.03 | |
 |
53848 | 3/4" | 0.75 | 5 7/8" | 5 1/2" | €227.29 | |
|
51439 | 47/64" | 0.7344 | 8" | 12" | €259.44 |
