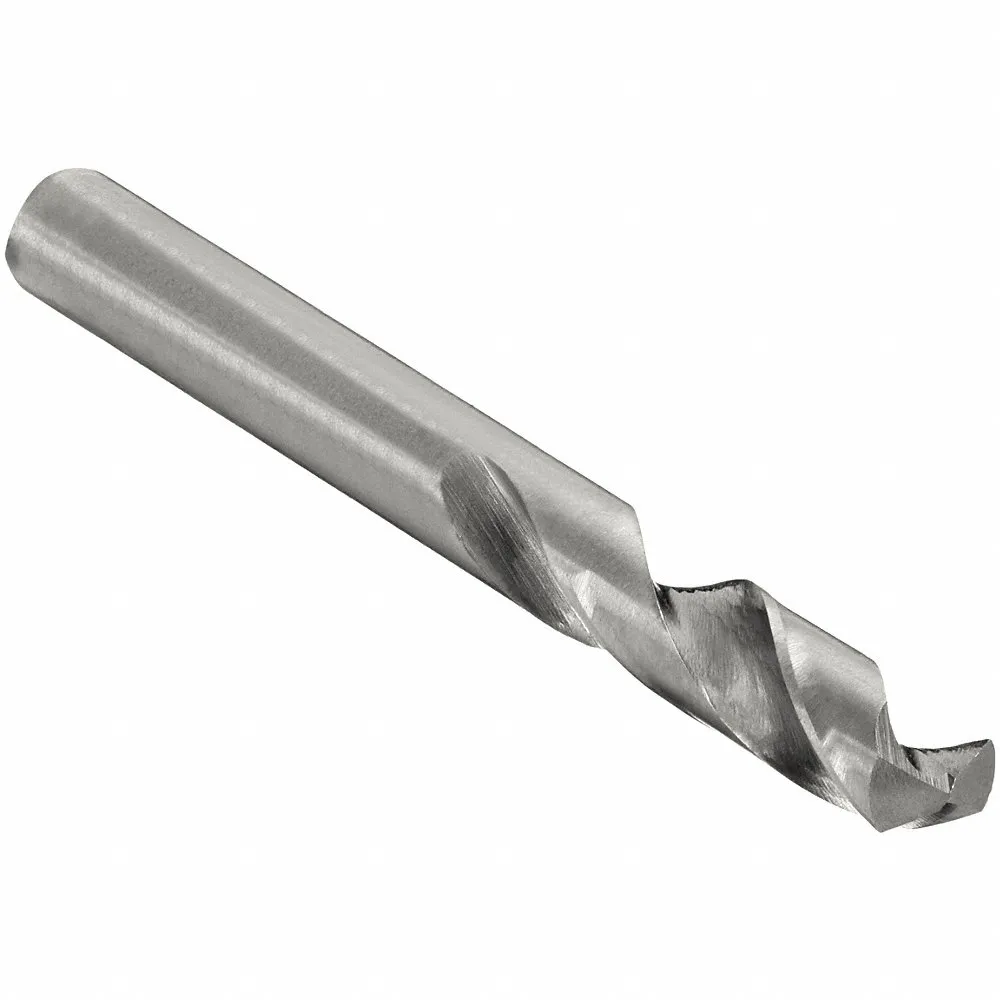

CHICAGO-LATROBE 50809 Screw Machine Drill Bit, 3/16 Inch Size, 1 1/8 Inch Flute Length, Split Point
Item: CX7GRGModel: 50809Cross Ref: 1TNU1
7 In Stock
Ships within 2 days via
10.00% off
€7.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1875 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3/16" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0388" |
| Finish - Machining | Straw, Bronze |
| Flute Length | 1 1/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 559 |
| Material | Cobalt Steel |
| Material - Machining | Cobalt |
| Material Grade - Machining | Grade M42 |
| Number Of Flutes | 2 |
| Overall Length | 2 3/16" |
| Primary Material Application | Cast Iron, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, P |
| Shank Diameter | 3/16" |
| Shank Length | 1 1/16" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
