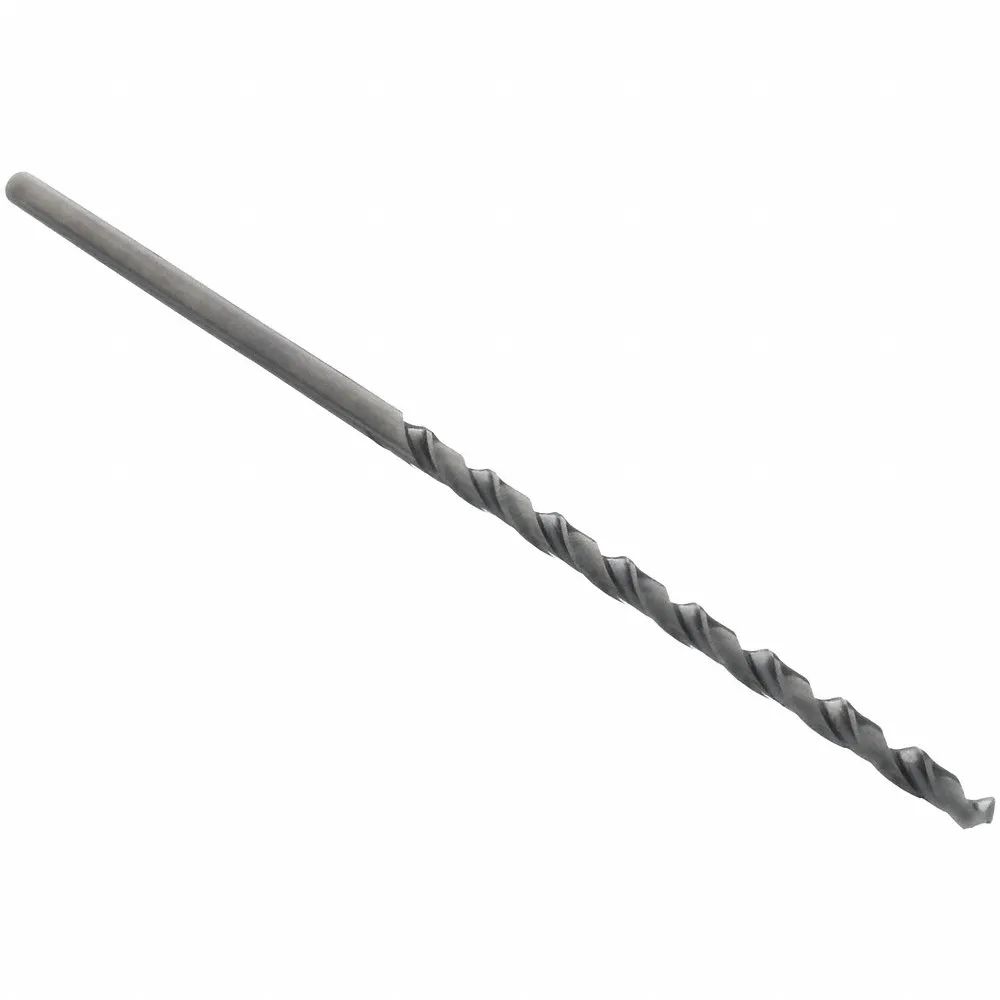

CHICAGO-LATROBE 50328 Taper Length Drill Bit, #38 Size, 2 1/2 Inch Flute Length, 3/32 Inch Shank Dia.
Item: CX7GKRModel: 50328Cross Ref: 438Y81
7 In Stock
Ships within 2 days via
10.00% off
€15.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Application | For Metalworking |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1015 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #38 |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0305" |
| Finish - Machining | Black Oxide |
| Flute Length | 2 1/2" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| List Number | 120 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 2 1/2" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 4 5/8" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 3/32" |
| Shank Length | 2 1/8" |
| Shank Type - Machining | Straight |
| Sizes Included | #38 |
| Spiral Direction | Right Hand |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11.75 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
