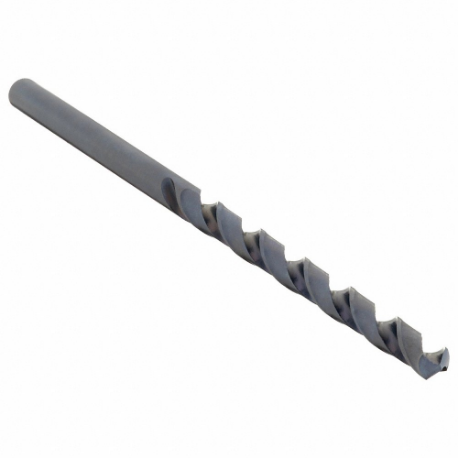

CHICAGO-LATROBE 49709 Taper Length Drill Bit, 9/64 Inch Drill Bit Size, 9/64 Inch Shank Dia
Item: CQ8VTBModel: 49709Cross Ref: 2VRZ8
7 In Stock
Ships within 2 days via
10.00% off
€12.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Application | For Deeper Drilling On Alloy And Carbon Steel And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1406 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Radial Point |
| Drill Bit Size | 9/64" |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.0422" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 120 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 9/16" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 5 3/8" |
| Point Angle | 118° |
| Point Type | Radial Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 9/64" |
| Shank Length | 2 3/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 0.141" |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.15 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Flute Type | Flute Length | Overall Length | Decimal Equivalent | Material | Finish | Coolant Fed | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 50305 | Spiral | 3 3/8" | 5 3/4" | 0.18 | High Speed Steel | Black Oxide | Non-Coolant Through | 3 3/8" | €21.81 | |
| 50306 | Spiral | 3 3/8" | 5 3/4" | 0.177 | High Speed Steel | Black Oxide | Non-Coolant Through | 3 3/8" | €22.05 | |
| 50309 | Spiral | 3 3/8" | 5 3/4" | 0.166 | High Speed Steel | Black Oxide | Non-Coolant Through | 3 3/8" | €21.59 | |
| 68861 | Parabolic | 4 1/8" | 5 3/4" | 0.159 | High Speed Steel | Bright, Uncoated | Non-Coolant Through | 4 1/8" | €28.27 | |
| 50312 | Spiral | 3 3/8" | 5 3/4" | 0.157 | High Speed Steel | Black Oxide | Non-Coolant Through | 3 3/8" | €22.27 | |
| 50314 | Spiral | 3" | 5 3/8" | 0.152 | High Speed Steel | Black Oxide | Non-Coolant Through | 3" | €21.42 | |
| 68866 | Parabolic | 3 3/4" | 5 3/8" | 0.147 | High Speed Steel | Bright, Uncoated | Non-Coolant Through | 3 3/4" | €25.08 |
