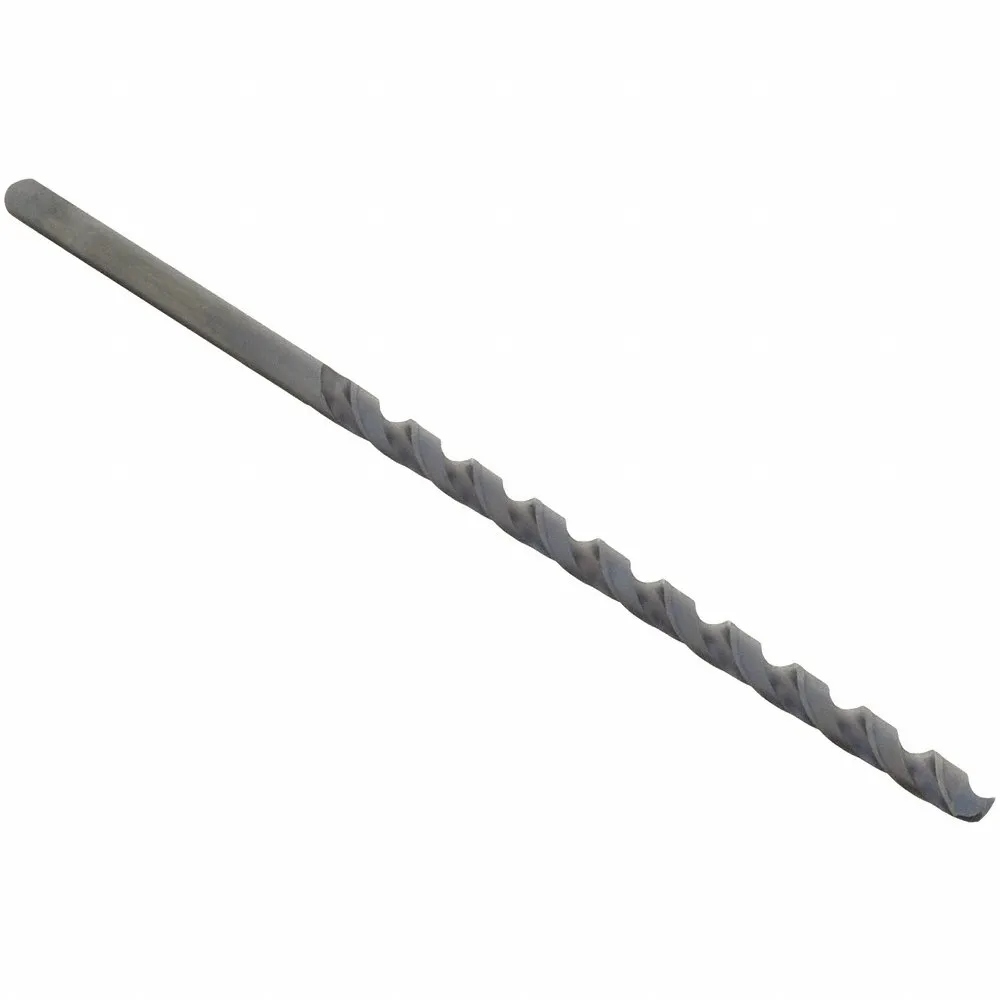

CHICAGO-LATROBE 49626 Taper Length Drill Bit, 13/32 Inch Size, 5 5/8 Inch Flute Length, 7 Inch Length
Get it by Tuesday, Jul 7
Request a Quote
Payment
Delivery
Product Specifications:
| Application | For Metalworking |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4062 |
| Depth Dia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 13/32" |
| Drill Dia. Tolerance | -0.001" to 0" |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.122" |
| Finish-machining | Black Oxide |
| Flute Length | 5 5/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| List Number | 120F |
| Material | High Speed Steel |
| Material Grade-machining | Heavy Duty |
| Material-machining | High Speed Steel |
| Max. Drilling Depth | 5 5/8" |
| No. Of Flutes | 2 |
| Overall Length | 7" |
| Primary Material Application | Cast Iron, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 13/32" |
| Shank Length | 1 3/8" |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 17.78 |
| Country of Origin | US |
