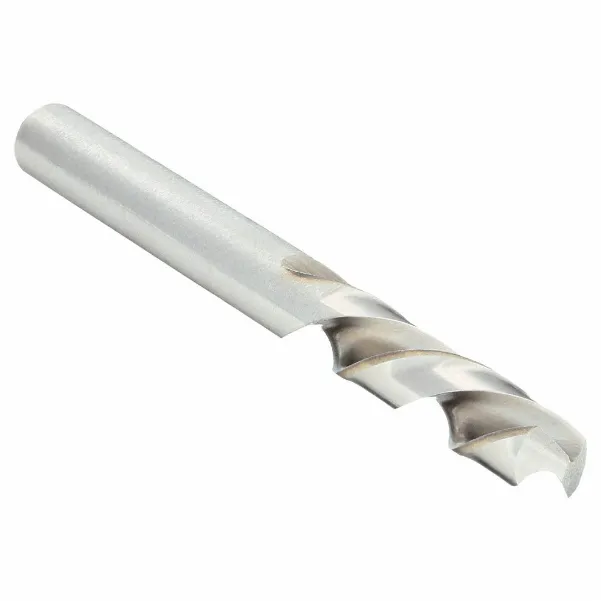

CHICAGO-LATROBE 49091 Screw Machine Drill Bit, #21 Size, 1 1/16 Inch Flute Length
Item: CQ8VCUModel: 49091Cross Ref: 6ZRT8
7 In Stock
Ships within 2 days via
10.00% off
€8.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Cutting Direction | Left Hand |
| Decimal Equivalent | 0.159 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #21 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0478" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1 1/16" |
| Flute Type | Spiral |
| Helix Angle | 28° |
| List Number | 157L |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 1 1/16" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 2 1/8" |
| Primary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Slate, Steel, Wood |
| Primary Material Application Iso Code | N, O, P |
| Shank Dia. | 0.156" |
| Shank Diameter | 5/32" |
| Shank Length | 1 1/16" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Left Hand |
| Standards | ISO |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.55 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Overall Length | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
48701 | 0.228 | 2 7/16" | 0.234" | #1 | 1 5/16" | €5.61 | |
 |
49071 | 0.228 | 2 7/16" | 0.234" | #1 | - | €15.02 | |
 |
48371 | 0.228 | 2 7/16" | 0.234" | #1 | - | €11.75 | |
|
49080 | 0.1935 | 2 1/4" | 0.188" | #10 | - | €12.50 | |
 |
48380 | 0.1935 | 2 1/4" | 0.188" | #10 | 1 3/16" | €10.50 | |
|
49081 | 0.191 | 2 1/4" | 0.188" | #11 | - | €12.04 | |
|
48381 | 0.191 | 2 1/4" | 0.188" | #11 | - | €10.40 |
