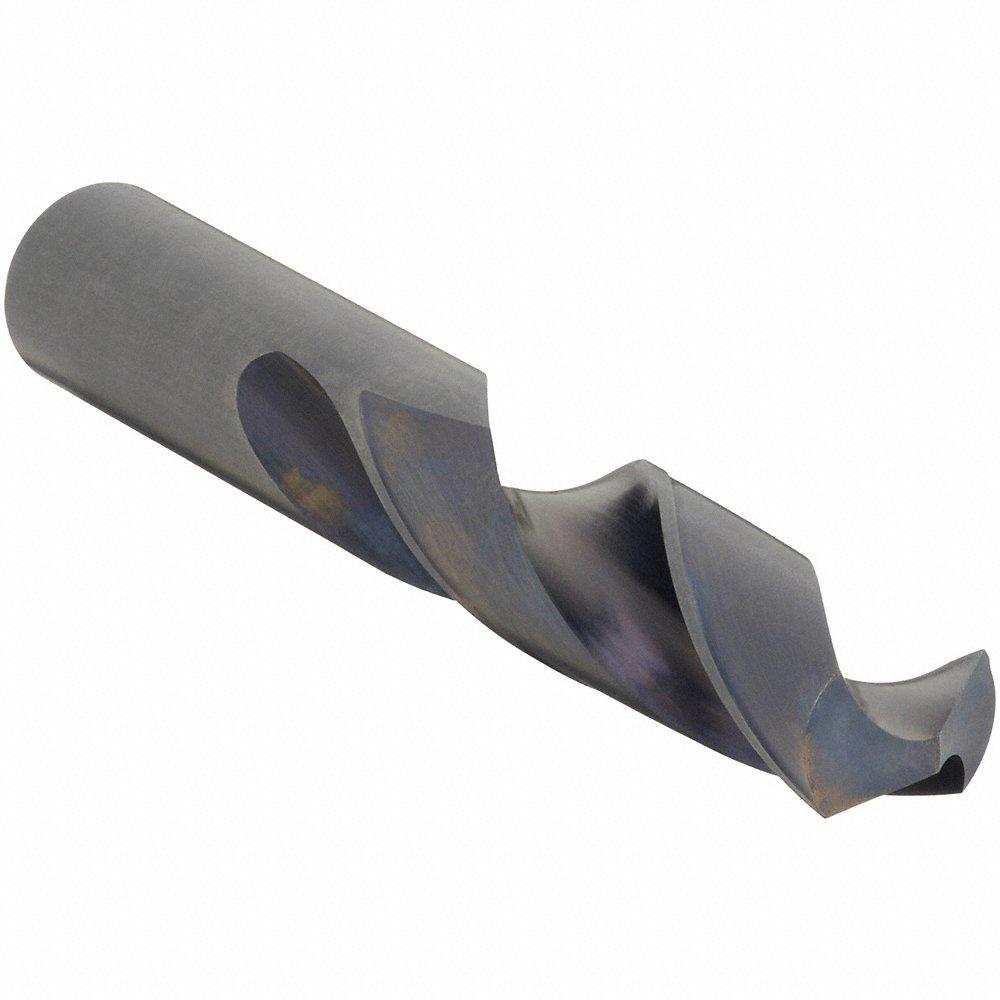

CHICAGO-LATROBE 48580 Screw Machine Drill Bit, 1 1/4 Inch Size, 4 3/8 Inch Flute Length
Item: CQ8VFRModel: 48580Cross Ref: 439J89
7 In Stock
Ships within 2 days via
5.00% off
€240.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Application | For Drilling Alloy Steel, Carbon Steel, Cast Iron |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1.25 |
| Depth Dia. Ratio | 4Xd |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1 1/4" |
| Drill Dia. Tolerance | -0.0015" to 0" |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.3755" |
| Finish | Black Oxide |
| Finish-machining | Black Oxide |
| Flute Length | 4 3/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| List Number | 157 |
| Material | High Speed Steel |
| Material Grade-machining | General Purpose |
| Material-machining | High Speed Steel |
| No. Of Flutes | 2 |
| No. Of Pieces | 0 |
| Overall Length | 6 3/4" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 1" |
| Shank Length | 2 1/4" |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.65 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 20.75 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Overall Length | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
48701 | 0.228 | 2 7/16" | 0.234" | #1 | 1 5/16" | €5.61 | |
 |
49071 | 0.228 | 2 7/16" | 0.234" | #1 | - | €15.02 | |
 |
48371 | 0.228 | 2 7/16" | 0.234" | #1 | - | €11.75 | |
|
49080 | 0.1935 | 2 1/4" | 3/16" | #10 | - | €12.50 | |
 |
48380 | 0.1935 | 2 1/4" | 3/16" | #10 | 1 3/16" | €10.50 | |
|
49081 | 0.191 | 2 1/4" | 3/16" | #11 | - | €12.04 | |
|
48381 | 0.191 | 2 1/4" | 0.188" | #11 | - | €10.40 |
