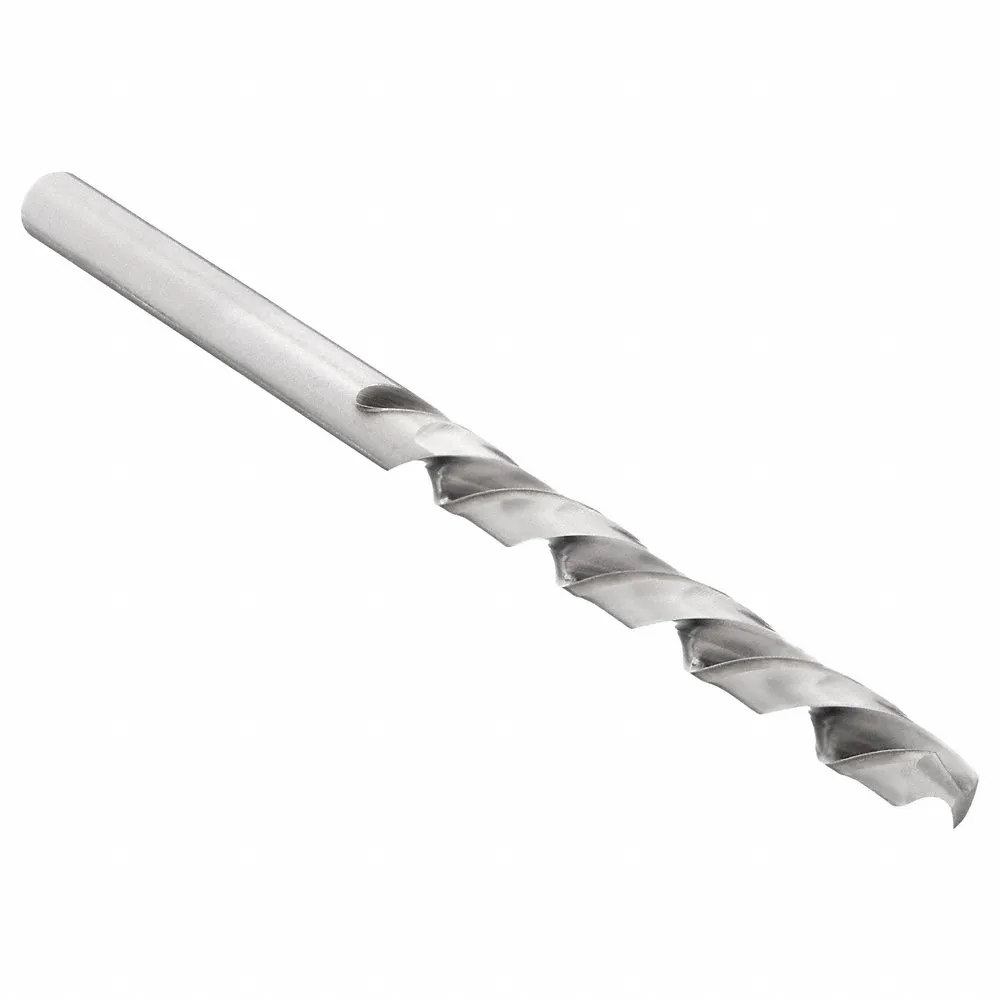

CHICAGO-LATROBE 44535 Jobber Length Drill Bit, Left Hand, #65 Size, 5/8 Inch Flute Length
Item: CX7EGEModel: 44535Cross Ref: 434D44
7 In Stock
Ships within 2 days via
10.00% off
€20.29 /unit
This product can only be shipped in multiples of 12Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | No |
| Application | Substitute For Screw Extractors |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Left Hand |
| Decimal Equivalent | 0.035 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #65 |
| Drill Diameter Tolerance | -0" to +0.0005" |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0105" |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 5/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| Left/right Hand | Left |
| List Number | 150L |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 15/32" |
| Maximum Drilling Depth | 1/8" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 1 1/2" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | N, P |
| Series | 150L Series |
| Shank Dia. | 1/32" |
| Shank Length | 7/8" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Left Hand |
| Web Thinning | Thinned |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
