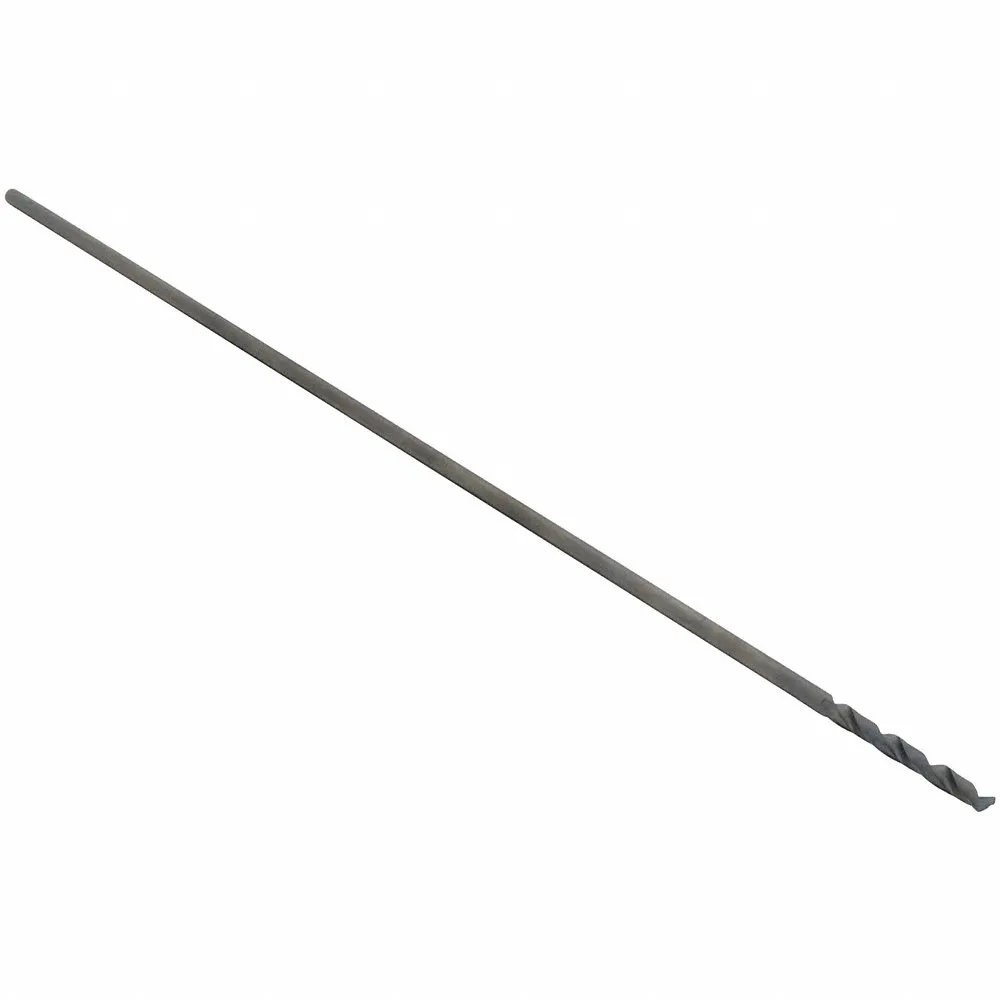

CHICAGO-LATROBE 11152 Extra Long Drill Bit, #28 Size, 1 3/4 Inch Flute Length, 1/8 Inch Shank Dia.
Item: CX7CZKModel: 11152Cross Ref: 406Y22
7 In Stock
Ships within 2 days via
5.00% off
€21.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1405 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #28 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0291" |
| Finish - Machining | Black Oxide |
| Flute Length | 1 3/4" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 912 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 1 3/4" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 12" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 1/8" |
| Shank Length | 11/4" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
