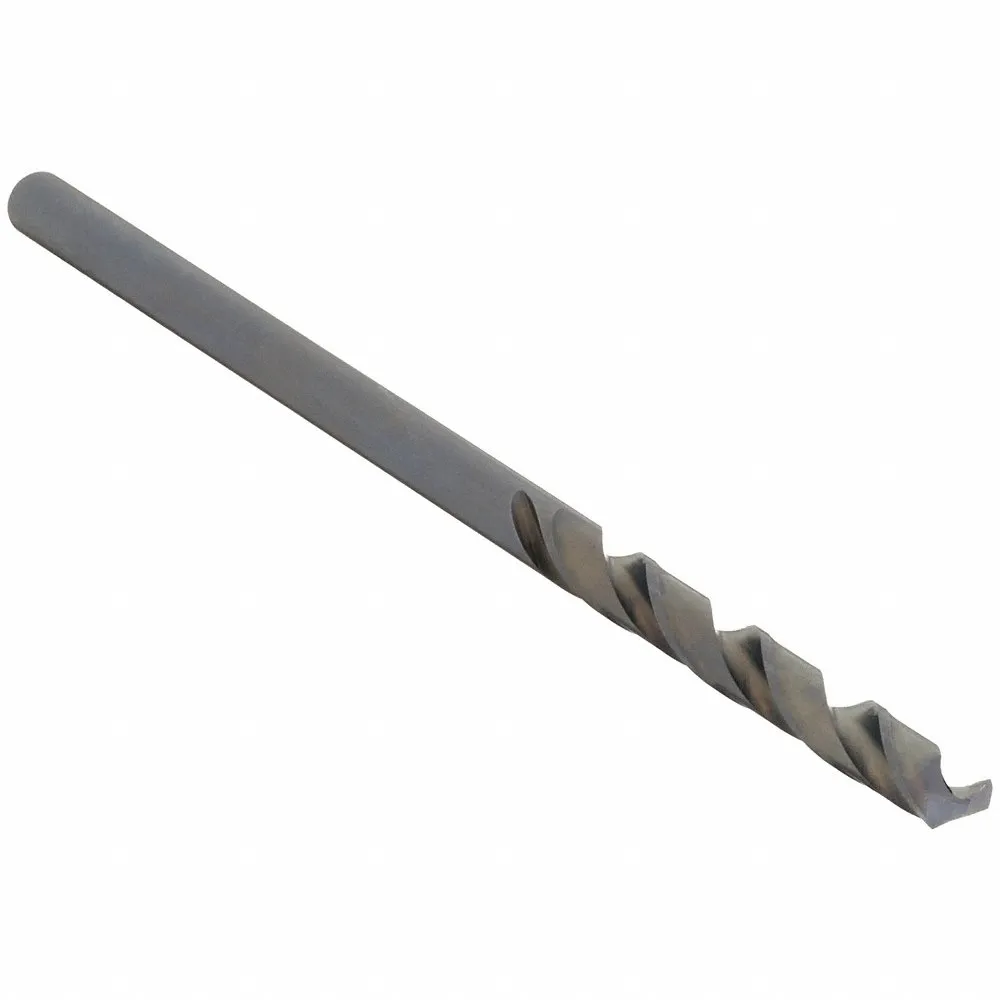

CHICAGO-LATROBE 11047 Extra Long Drill Bit, #17 Size, 2 3/16 Inch Flute Length, 11/64 Inch Shank Dia.
Item: CX7CVXModel: 11047Cross Ref: 406X21
7 In Stock
Ships within 2 days via
10.00% off
€8.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.173 |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #17 |
| Drill Diameter Tolerance | -0" to +0.0007" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.0358" |
| Finish - Machining | Black Oxide |
| Flute Length | 2 3/16" |
| Flute Type | Spiral |
| Grade | Heavy Duty , High Performance |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 906 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 2 3/16" |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 11/64" |
| Shank Length | 3 13/16" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
