CHICAGO-LATROBE 11029 Extra Long Drill Bit, 31/64 Inch Size, 6 Inch Overall Length
Item: CQ8TUQModel: 11029Cross Ref: 406X03
7 In Stock
Ships within 2 days via
10.00% off
€47.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extra Long Drill Bit |
| Aircraft Drill | Yes |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4844 |
| Depth X Dia. Ratio | 4xd |
| Depthdia. Ratio | 4Xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135° |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 31/64" |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.1003" |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 4 3/8" |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28° |
| Left/right Hand | Right |
| List Number | 906 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 4 3/8" |
| Overall Length | 6" |
| Point Angle | 135° |
| Point Type | Split Point |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Shank Dia. | 31/64" |
| Shank Length | 1 5/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size | 0.484" |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 16 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Decimal Equivalent | Flute Length | Shank Dia. | Overall Length | Drill Bit Size | Drill Bit Point Angle | Drill Bit Point Type | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

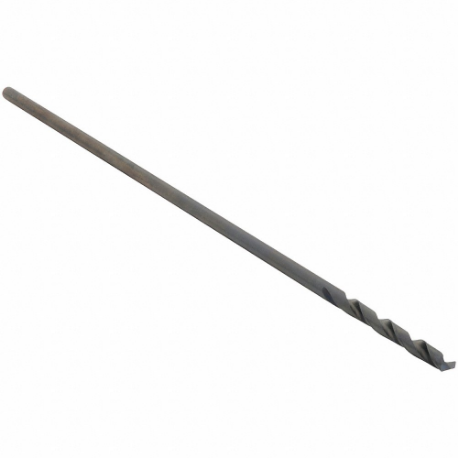

11135 | 0.191 | 2 5/16" | 3/16" | 12" | #11 | 135° | Split Point | 2 5/16" | €23.23 | |
|
11137 | 0.185 | 2 5/16" | 11/64" | 12" | #13 | 135° | Split Point | 2 5/16" | €22.14 | |
|
11147 | 0.154 | 2" | 9/64" | 12" | #23 | 135° | Split Point | 2" | €24.45 | |
|
11127 | 0.213 | 2 1/2" | 13/64" | 12" | #3 | 135° | Split Point | 2 1/2" | €27.03 | |
 |

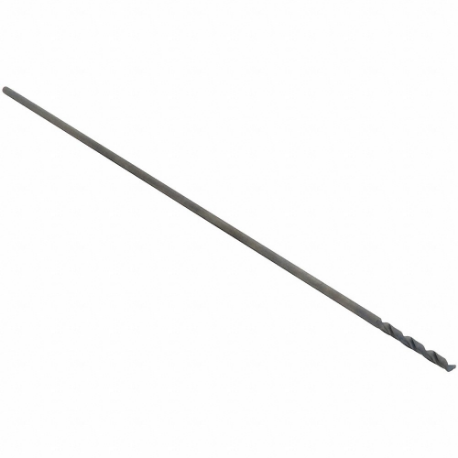

11169 | 0.082 | 1 1/8" | 5/64" | 12" | #45 | 135° | Split Point | 1 1/8" | €23.50 | |
 |

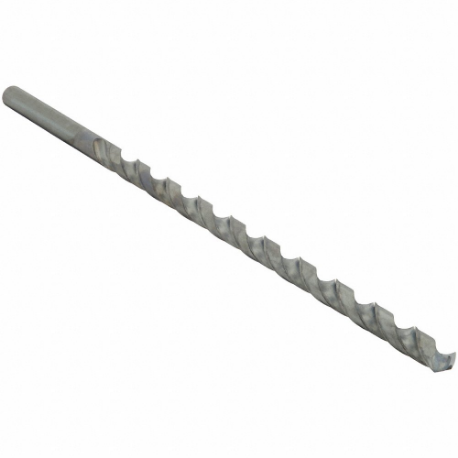

50471 | 0.1719 | 5 1/2" | 11/64" | 8" | 11/64" | 118° | Notched Point | 5 1/2" | €36.77 | |
|
50476 | 0.2031 | 5 1/2" | 13/64" | 8" | 13/64" | 118° | Notched Point | 5 1/2" | €36.99 |
