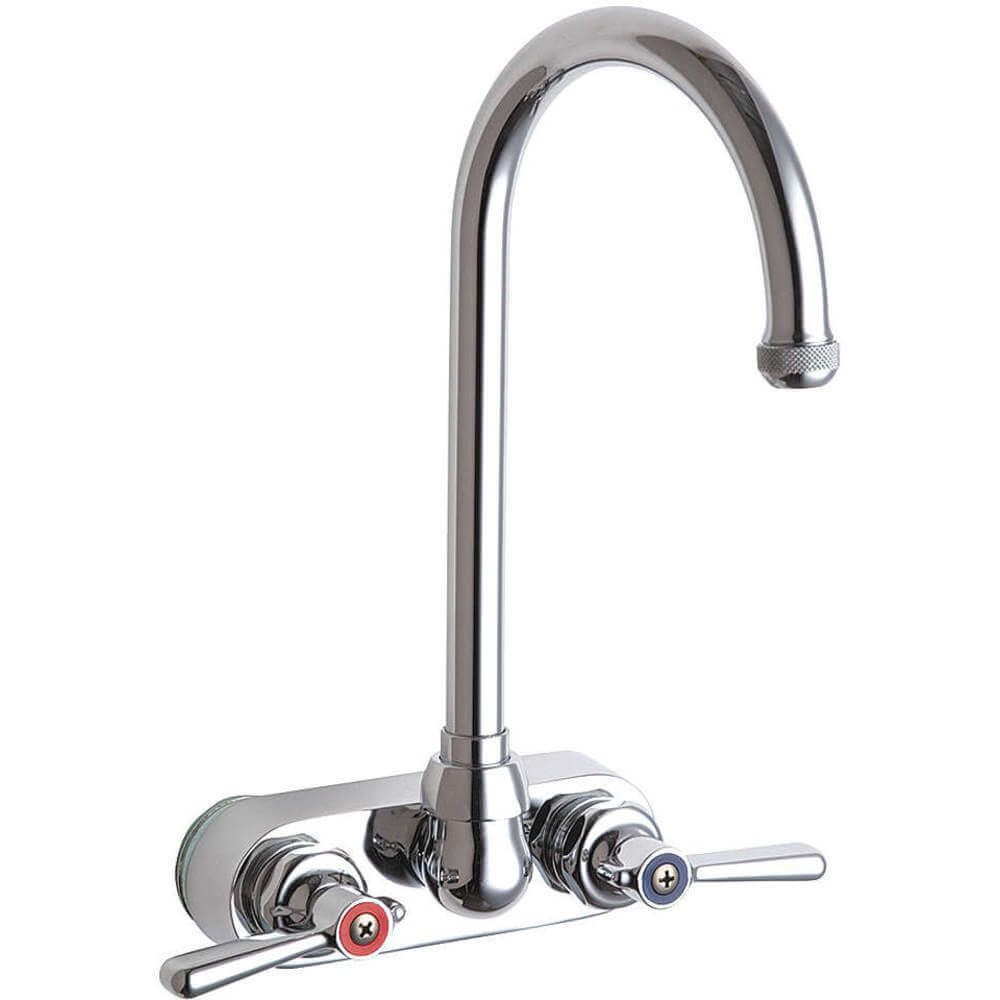

CHICAGO FAUCETS 521-GN2AE1ABCP Gooseneck Kitchen Faucet 5-1/4in Spout
Item: AB8RQGModel: 521-GN2AE1ABCPCross Ref: 26Y192
7 In Stock
Ships within 2 days via
13.00% off
€446.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gooseneck Kitchen Faucet |
| Ada Compliance | Yes |
| Body Material | Brass |
| Cec Compliant | Non Cec Compliant |
| Compliance | ASME A112.18.1M, CSA B125.1, California Health And Safety Code 116875 (Ab 1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content Certified To NSF/ANSI 61, Section 9 By CSA, ADA ANSI/ICC A117.1 |
| Faucet Activation | Manual |
| Faucet Body Material | Cast Brass |
| Faucet Finish | Chrome |
| Faucet Handle Material | Metal |
| Faucet Operation | Manual |
| Faucet Spout | Rigid, Swing |
| Faucet Type | Kitchen Sink Faucet |
| Features | Mounting Hardware Included |
| Finish | Chrome Plated |
| Flow Outlet Type | Full Flow |
| Flow Outlet Type Faucet | Laminar |
| Flow Rate | 12 GPM |
| Handle Type | Lever |
| Included | Mounting Hardware |
| Ligature Resistant | No |
| Max. Installation Surface Thickness | 5/16" |
| Max. Mounting Hole Center Distance | 4" |
| Mounting | Wall |
| Mounting Hole Center To Center | 4" |
| Mounting Type | Wall |
| Mounting Type (faucet) | Wall |
| No. Of Handles | 2 |
| No. Of Holes | 2.0 |
| Product Datasheet | chicago-faucets-521-gn2ae1abcp.pdf |
| Replacement Cartridge Mfr. Model No. | 1-099XTJKABNF, 1-100XTJKABNF |
| Series | 521 Series |
| Spout Height | 6 3/4" |
| Spout Length | 5 1/4" |
| Spout Reach | 6 1/4" |
| Temp. Control | No |
| Valve Type | Compression |
| Valve Type-faucets | Hot/Cold Cartridge |
| Vandal Resistant Features | Vandal Resistant Handles |
| Water Inlet Connection Size | 1/2" |
| Water Inlet Connection Type | Male NPSM |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 28.7 |
| Ship width (cm) | 16 |
| HS code | 8481901000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Flow Rate | Spout Length | Spout Height | Faucet Body Material | Max. Installation Surface Thickness | Valve Type | Faucet Spout | Spout Reach | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

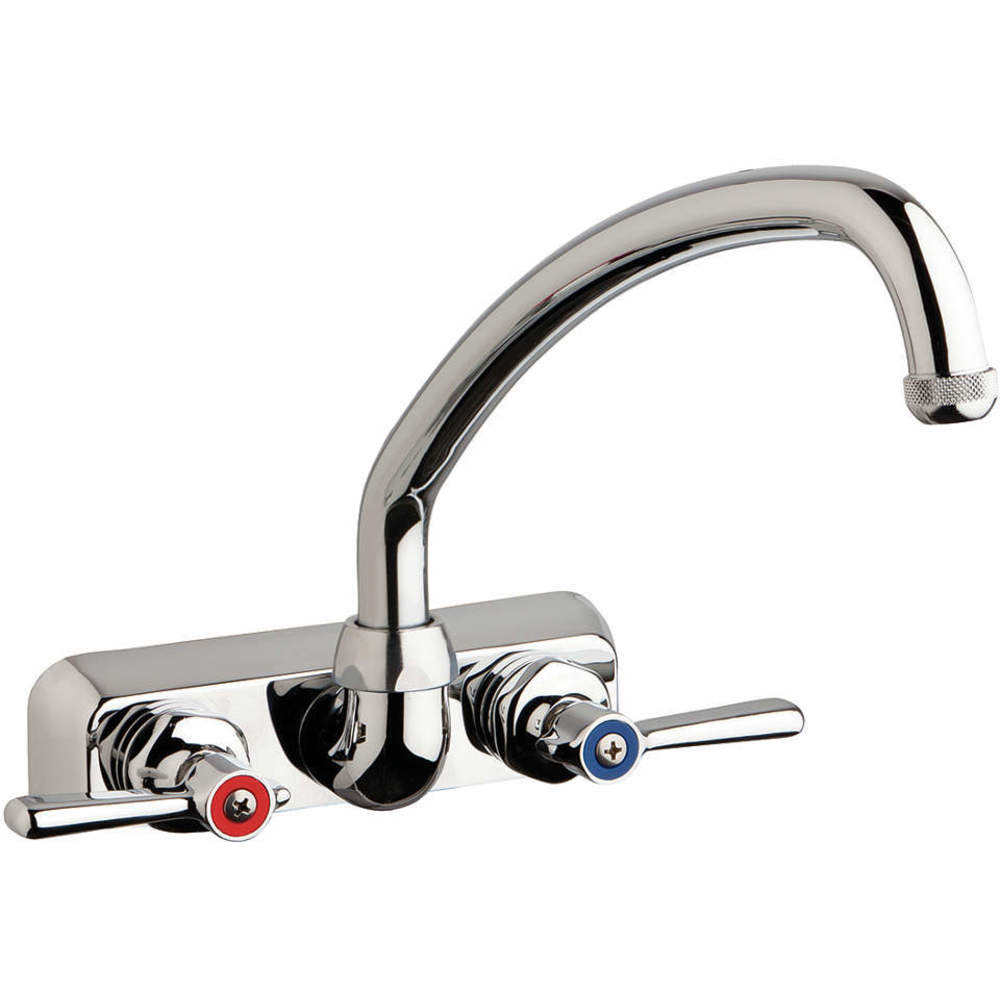

W4W-L9E1-369AB | 6 GPM | 9 1/2" | 7" | Brass | 1/4" | Ceramic Disc | Swing | 9 1/2" | €223.95 |
