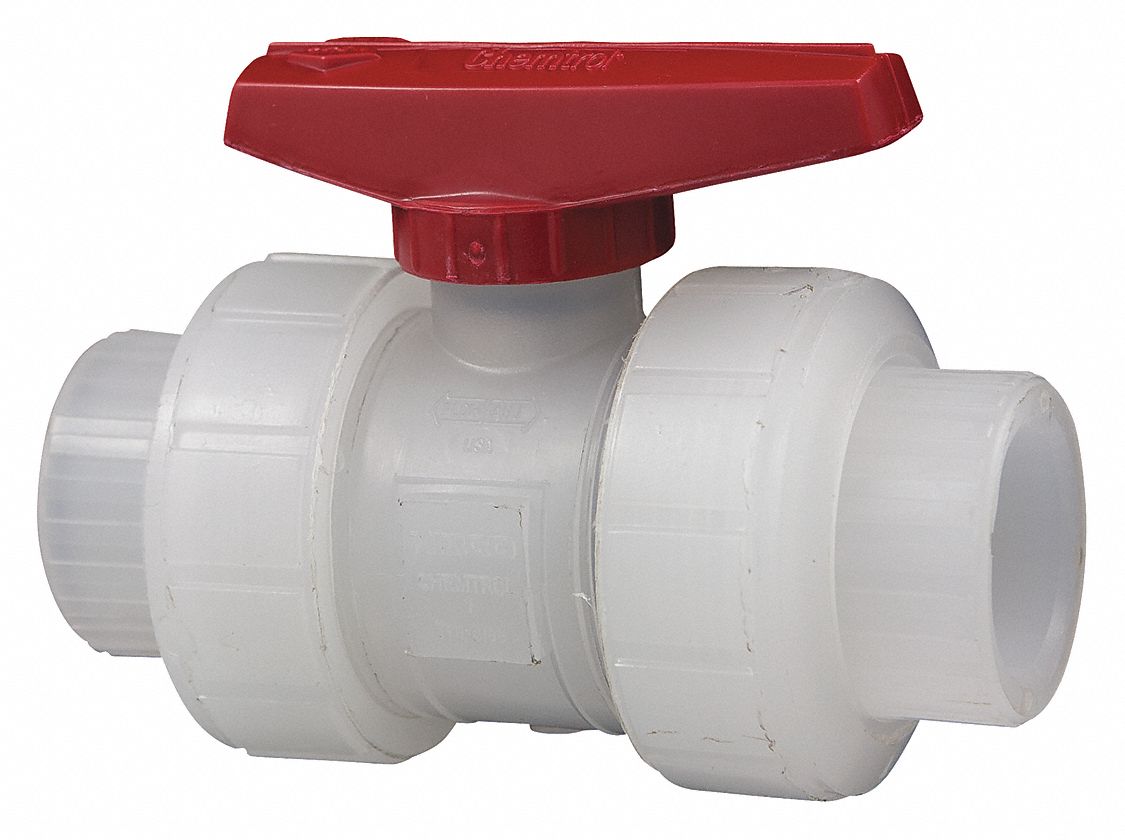

CHEMTROLS VALVES MN913A6 Ball Valve, Polypropylene, True Union, 3-Piece, 1/2 Inch Pipe Size
Item: CH6QNKModel: MN913A6Cross Ref: 489X73
7 In Stock
Ships within 2 days via
10.00% off
€425.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Polypropylene |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Polypropylene |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | Socket x Socket |
| Connection Type - Side 1 | Socket |
| Connection Type - Side 2 | Socket |
| For Media | Water |
| Handle | Tee |
| Handle Color | Black |
| Handle Material | PVC |
| Handle Type | TEE |
| Hose I.d. | 1/2" |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 150 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 150 psi |
| Media Temperature Range | 73°F to 180°F |
| Nominal Valve Size | 1/2" |
| Number Of Pieces | 3 |
| Overall Length | 4.19" |
| Pipe Schedule Compatibility | Schedule 80 |
| Pipe Size | 1/2" |
| Port | Full |
| Seal Material | FKM |
| Seat Material | PTFE |
| Standards | Astm D4101 |
| Stem Material | Polypropylene |
| Stem Type | Blowout Proof |
| Temp. Range | -163°F to +356°F |
| Tube Size | 1/2" |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
| Valve Structure | Three Piece |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | USA |
Product Variants
| Model | Pipe Size | Connection Type | Body Material | Temp. Range | Ball Material | Seat Material | Max. Pressure | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

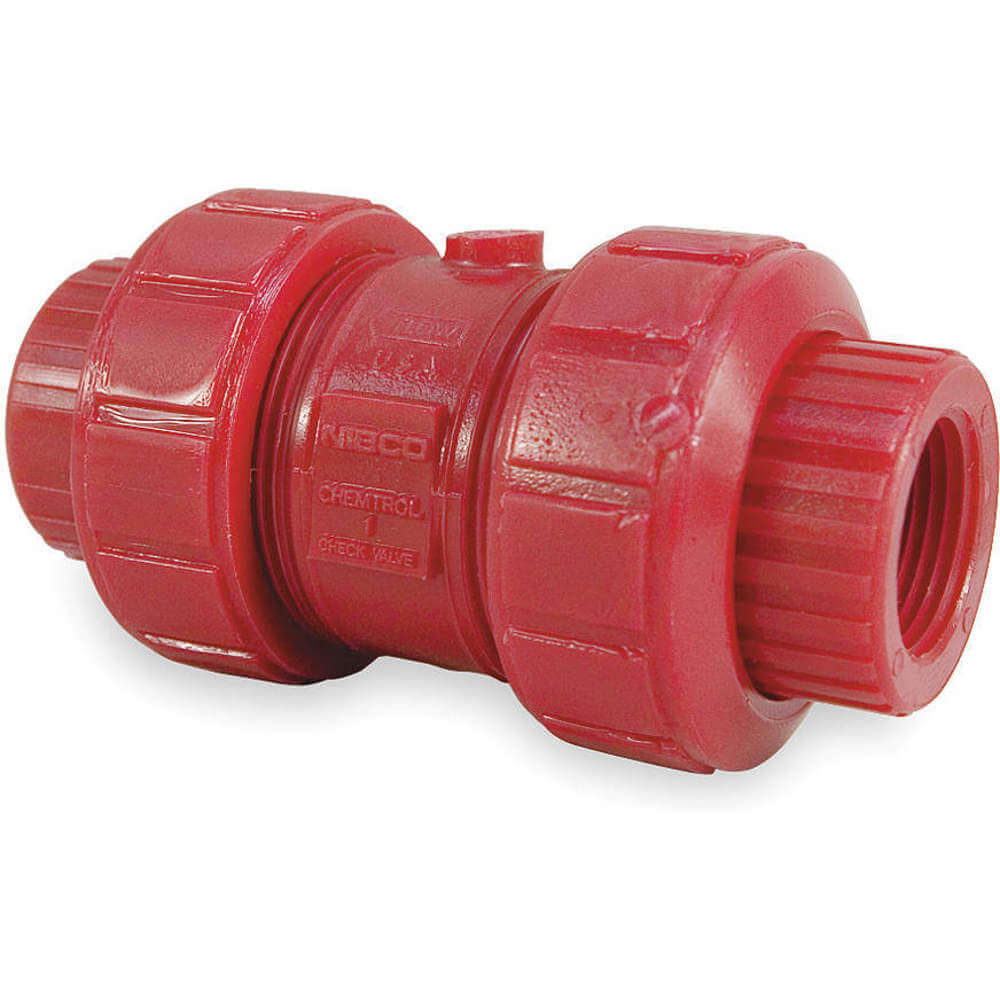

| T65BC-V 1/2 | 1/2" | FNPT x FNPT | PVDF | +73°F to +280°F | PVDF | FKM | 150 psi | Red | €736.93 | |
| T65BC-V 3/4 | 3/4" | FNPT x FNPT | PVDF | +73°F to +280°F | PVDF | FKM | 150 psi | Red | €936.39 | |
| T65BC-V 1 | 1" | FNPT x FNPT | PVDF | +73°F to +280°F | PVDF | FKM | 150 psi | Red | €1,299.43 |
