CHEMTROLS VALVES MA930U8 Ball Valve PVC 3/4 Inch True Block
Item: AH4CZKModel: MA930U8Cross Ref: 34CY82
7 In Stock
Ships within 2 days via
13.00% off
€105.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | PVC |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | PVC |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 3/4" |
| Connection Size-side 2 | 3/4" |
| Connection Type | Socket |
| Connection Type-side 1 | Socket |
| Connection Type-side 2 | True Union Socket, True Union NPT |
| For Media | Corrosive Chemicals, Water |
| Handle | Lever |
| Handle Color | Orange |
| Handle Length | 2.74" |
| Handle Material | PVC |
| Handle Type | Lever |
| Max. Pressure | 250 psi |
| Max. Pressure (cwp) | 250 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 250 psi |
| Max. Steam Pressure | 130 psi WSP |
| Media Temp. | 73°F to 140°F |
| No. Of Pieces | 3 |
| Nominal Valve Size | 3/4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 7.34" |
| Pipe Schedule Compatibility | Schedule 80 |
| Port | Full |
| Seal Material | FKM |
| Seat Material | PTFE |
| Stem Material | PVC |
| Temp. | 0°F to +180°F |
| Valve Body Style | Straight |
| Valve Construction | Three-Piece |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 10.41 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 9.14 |
| Country of Origin | US |
Product Variants
| Model | Ball Material | Stem Material | Max. Pressure | Temp. | Nominal Valve Size | Max. Pressure (cwp) | Media Temp. | For Media | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

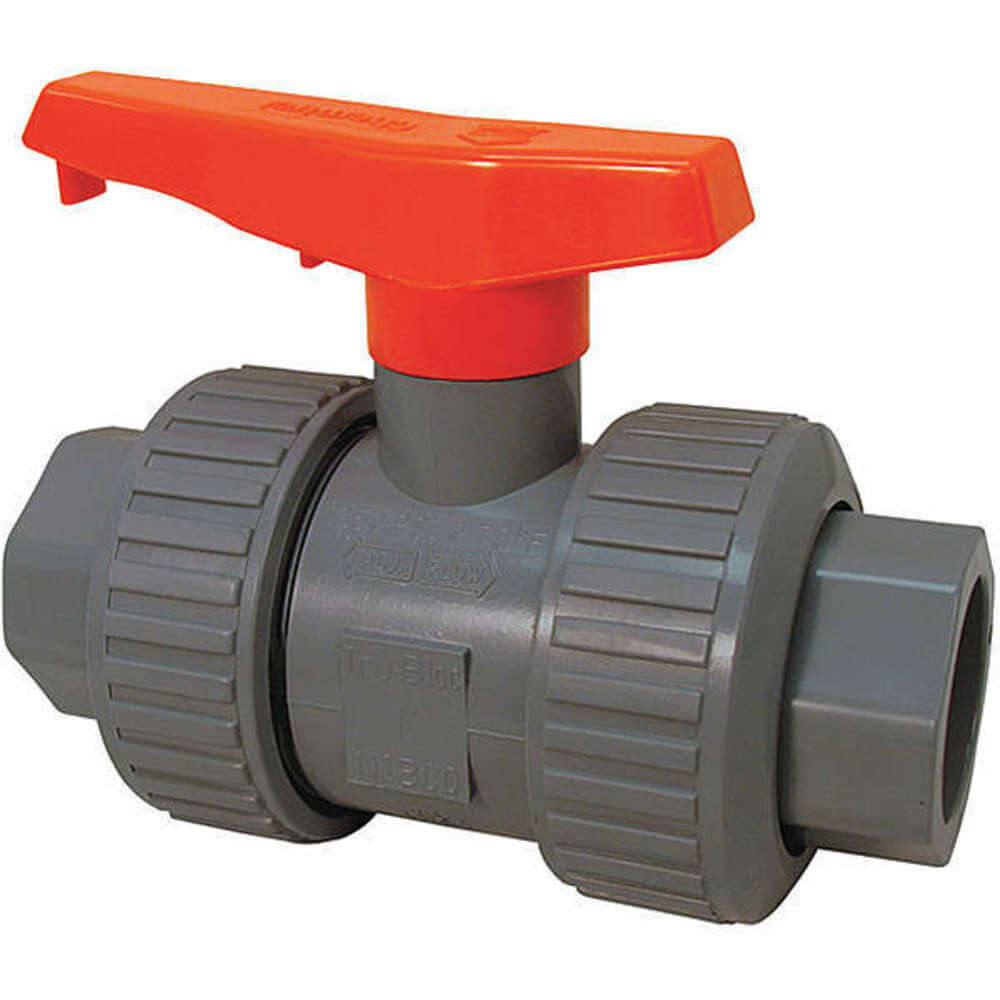

| MA930U6 | PVC | PVC | 250 psi | 0°F to +180°F | 1/2" | 250 psi | 73°F to 140°F | Corrosive Chemicals, Water | €104.76 | |

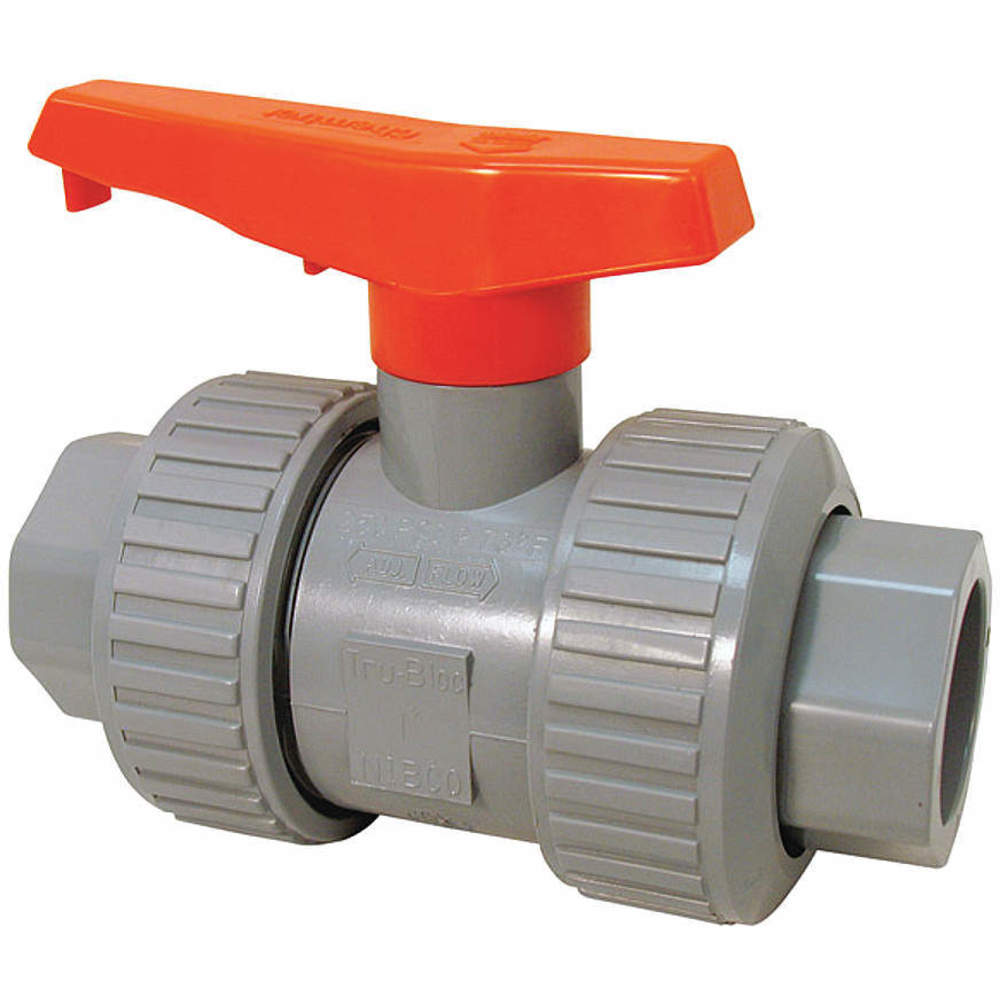

| U51TB-V 1/2 | CPVC | CPVC | 250 psi | +73°F to +210°F | 1/2" | 250 psi | 73°F to 210°F | Corrosive Chemicals, Water | €109.99 | |
| U51TB-V 3/4 | CPVC | CPVC | 250 psi | +73°F to +210°F | 3/4" | 250 psi | 73°F to 210°F | Corrosive Chemicals, Water | €146.46 | |
| U51TB-V 1 | CPVC | CPVC | 250 psi | +73°F to +210°F | 1" | 250 psi | 73°F to 210°F | Corrosive Chemicals, Water | €169.27 | |
| U51TB-V 11/4 | CPVC | CPVC | 250 psi | +73°F to +210°F | 1 1/4" | 250 psi | 73°F to 210°F | Corrosive Chemicals, Water | €279.68 | |
| U51TB-V 11/2 | CPVC | CPVC | - | +73°F to +210°F | 1 1/2" | 250 psi | 73°F to 210°F | Corrosive Chemicals, Water | €270.41 | |
| U51TB-V 2 | CPVC | CPVC | 250 psi | +73°F to +210°F | 2" | 250 psi | 73°F to 210°F | Corrosive Chemicals, Water | €373.92 |
