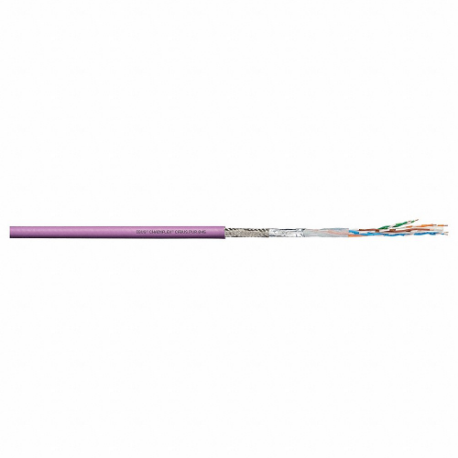

CHAINFLEX CFBUS-PUR-050 Bus Cable, CFBUS-PUR, Ethernet/CAT6A, PUR Jacket, Red, Shielded, 7 x OD, Order by the Foot
Item: CQ8MDHModel: CFBUS-PUR-050Cross Ref: 801ME1
7 In Stock
Ships within 2 days via
10.00% off
€14.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cable |
| Bus System | Ethernet/CAT6A |
| Cable Series | CFBUS-PUR Series |
| Conductor Color Code | White-Blue/Blue, White-Brown/Brown, White-Green/Green, White-Orange/Orange |
| Conductor Configuration | (4) Pair 26 AWG (0.20) |
| Conductor Material | Copper |
| Impedance | 100 ohms |
| Includes Ground | No |
| Jacket Color | Red |
| Jacket Material | PUR |
| Length | Order By The Foot |
| Max. Acceleration | 98.4 m/sq. sec. |
| Max. Operating Temp. | 158°F |
| Maximum Velocity (unsupported) | 10 FPS |
| Maximum Velocity - Supported | 7 FPS |
| Min. Operating Temp. (fixed) | -58°F |
| Min. Operating Temp. (flexible) | -40°F |
| Minimum Bend Radius Factor (fixed) | 7 x OD |
| Minimum Bend Radius Factor (flexible) | 10 x OD |
| Minimum Bend Radius Factor E-chain | 12.5 x OD |
| Outside Dia. | 0.39" |
| Product Type | Bus Cable |
| Resistance Properties | Antimicrobial, Oil And Grease Resistant, UV/Sunlight Resistant |
| Shielding | Shielded |
| Voltage | 50V |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Jacket Color | Shielding | Voltage | Number Of Conductors | Includes Ground | Max. Operating Temp. | Jacket Material | Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF888-021 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.98 | |
| CF888-045 | Red | Shielded | 50V | - | No | 158°F | - | - | €3.92 | |
| CF888-001 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.58 | |
| CF888-060 | Yellow, Green | Shielded | 50V | - | No | 158°F | - | - | €4.07 | |
| CF898-083 | Black | Shielded | 50V | - | No | 158°F | PUR | - | €5.21 | |
| CF898-082 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €5.21 | |
| CF898-080 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €4.40 |
