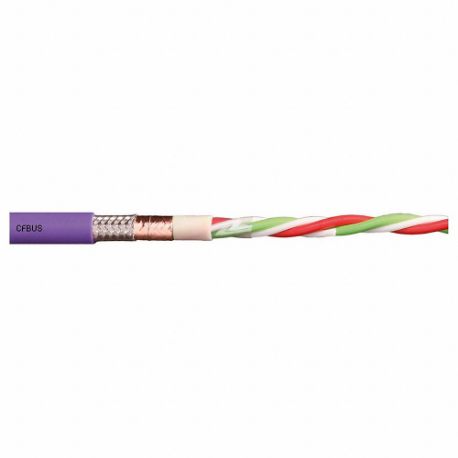

CHAINFLEX CFBUS-035 Bus Cable, CFBUS, CC Link, TPE Jacket, Red, Shielded, 5 x OD, Order by the Foot
Item: CQ8MCGModel: CFBUS-035Cross Ref: 801MA8
7 In Stock
Ships within 2 days via
10.00% off
€8.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cable |
| Bus System | CC Link |
| Cable Series | CFBUS Series |
| Conductor Color Code | Blue, White, Yellow |
| Conductor Configuration | (3) 20 AWG (0.5) |
| Conductor Material | Copper |
| Impedance | 110 ohms |
| Includes Ground | No |
| Jacket Color | Red |
| Jacket Material | TPE |
| Length | Order By The Foot |
| Max. Acceleration | 328.1 m/sq. sec. |
| Max. Operating Temp. | 158°F |
| Maximum Velocity (supported) | 20 FPS |
| Maximum Velocity (unsupported) | 33 FPS |
| Min. Operating Temp. (fixed) | -58°F |
| Min. Operating Temp. (flexible) | -49°F |
| Minimum Bend Radius Factor (fixed) | 5 x OD |
| Minimum Bend Radius Factor (flexible) | 8 x OD |
| Minimum Bend Radius Factor E-chain | 10 x OD |
| Product Type | Bus Cable |
| Resistance Properties | Antimicrobial, Oil And Grease Resistant, UV/Sunlight Resistant |
| Shielding | Shielded |
| Voltage | 50V |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Jacket Color | Shielding | Voltage | Number Of Conductors | Includes Ground | Max. Operating Temp. | Jacket Material | Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF888-021 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.98 | |
| CF888-045 | Red | Shielded | 50V | - | No | 158°F | - | - | €3.92 | |
| CF888-001 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.58 | |
| CF888-060 | Yellow, Green | Shielded | 50V | - | No | 158°F | - | - | €4.07 | |
| CF898-083 | Black | Shielded | 50V | - | No | 158°F | PUR | - | €5.21 | |
| CF898-082 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €5.21 | |
| CF898-080 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €4.40 |
