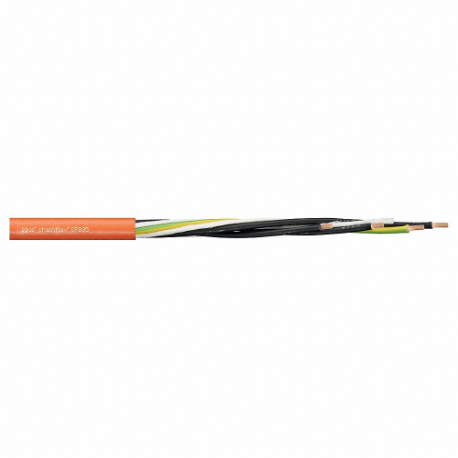

CHAINFLEX CF895-100-04 Power Cable, Pur Jacket, 4 Conductors, 8 Awg000 V, 8 x Od, Order By The Foot | CQ8NXE 801M79

CHAINFLEX CF895-100-04 Power Cable, Pur Jacket, 4 Conductors, 8 Awg000 V, 8 x Od, Order By The Foot

Item: CQ8NXEModel: CF895-100-04Cross Ref: 801M79
7 In Stock

Ships within 2 days via

€18.98
10.00% off
€17.08 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Power Cable
Cable Series CF895 Series
Conductor Color Code Black, White, Green, Yellow
Conductor Material Copper
Conductor Size 8 AWG
Includes Ground Yes
Jacket Color Pastel Orange
Jacket Material PUR
Length Order By The Foot
Max. Acceleration 65.6 m/sq. sec.
Max. Operating Temp. 176°F
Maximum Velocity (unsupported) 10 FPS
Min. Operating Temp. (fixed) -58°F
Min. Operating Temp. (flexible) -40°F
Minimum Bend Radius Factor (fixed) 8 x OD
Minimum Bend Radius Factor - Flexible 12 x OD
Minimum Bend Radius Factor E-chain 15 x OD
Number Of Conductors 4
Resistance Properties Oil And Grease Resistant, UV/Sunlight Resistant
Shielding Unshielded
Voltage 1000V

Shipping Info:

Ship weight (kg) 0.16
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelJacket ColorShieldingVoltageNumber Of ConductorsIncludes GroundMax. Operating Temp.Jacket MaterialConductor SizePrice
CHAINFLEX CF888-021 Bus Cable, CF888, CAN-Bus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBU 801M69 CF888-021RedShielded50V-No158°F--€2.98
CHAINFLEX CF888-045 Bus Cable, CF888, Ethernet/CAT5e, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBV 801M70 CF888-045RedShielded50V-No158°F--€3.92
CHAINFLEX CF888-001 Bus Cable, CF888, Profibus, PVC Jacket, Red, Shielded, 8 x OD, Order by the Foot | CQ8MBW 801M68 CF888-001RedShielded50V-No158°F--€2.58
CHAINFLEX CF888-060 Bus Cable, CF888, Profinet, PVC Jacket, Yellow/Green, Shielded, 8 x OD, Order by the Foot | CQ8MBX 801M71 CF888-060Yellow, GreenShielded50V-No158°F--€4.07
CHAINFLEX CF898-083 Bus Cable, CF898, ASI Bus, PUR Jacket, Black, Shielded, 8 x OD, Order by the Foot | CQ8MBZ 801MA3 CF898-083BlackShielded50V-No158°FPUR-€5.21
CHAINFLEX CF898-082 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCA 801MA2 CF898-082YellowShielded--No158°FPUR-€5.21
CHAINFLEX CF898-080 Bus Cable, CF898, ASI Bus, PUR Jacket, Yellow, Shielded, 8 x OD, Order by the Foot | CQ8MCB 801MA0 CF898-080YellowShielded--No158°FPUR-€4.40
