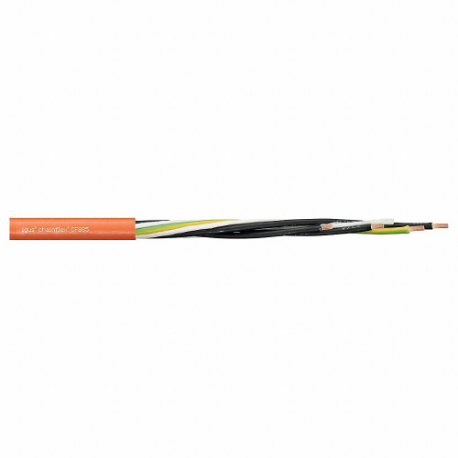

CHAINFLEX CF885-15-04 Power Cable, Pvc Jacket, 4 Conductors, 16 Awg000 V, 8 x Od, Order By The Foot
Item: CQ8NXGModel: CF885-15-04Cross Ref: 801M28
7 In Stock
Ships within 2 days via
10.00% off
€2.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Power Cable |
| Cable Series | CF885 Series |
| Conductor Color Code | Black, White, Green, Yellow |
| Conductor Material | Copper |
| Conductor Size | 16 AWG |
| Includes Ground | Yes |
| Jacket Color | Pastel Orange |
| Jacket Material | PVC |
| Length | Order By The Foot |
| Max. Acceleration | 65.6 m/sq. sec. |
| Max. Operating Temp. | 158°F |
| Maximum Velocity (unsupported) | 10 FPS |
| Min. Operating Temp. (fixed) | 5°F |
| Min. Operating Temp. (flexible) | 23°F |
| Minimum Bend Radius Factor (fixed) | 8 x OD |
| Minimum Bend Radius Factor - Flexible | 12 x OD |
| Minimum Bend Radius Factor E-chain | 15 x OD |
| Number Of Conductors | 4 |
| Outside Dia. | 0.31" |
| Resistance Properties | Flame Retardant, Oil And Grease Resistant |
| Shielding | Unshielded |
| Voltage | 1000V |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Jacket Color | Shielding | Voltage | Number Of Conductors | Includes Ground | Max. Operating Temp. | Jacket Material | Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF888-021 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.98 | |
| CF888-045 | Red | Shielded | 50V | - | No | 158°F | - | - | €3.92 | |
| CF888-001 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.58 | |
| CF888-060 | Yellow, Green | Shielded | 50V | - | No | 158°F | - | - | €4.07 | |
| CF898-083 | Black | Shielded | 50V | - | No | 158°F | PUR | - | €5.21 | |
| CF898-082 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €5.21 | |
| CF898-080 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €4.40 |
