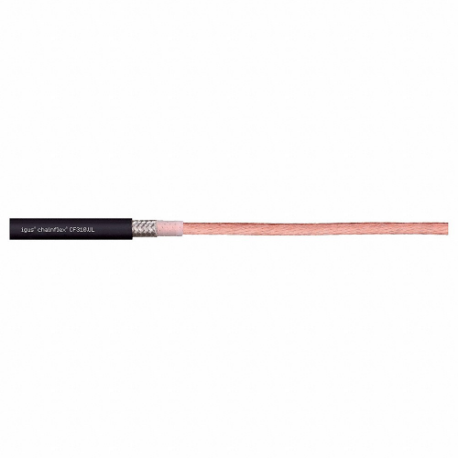

CHAINFLEX CF310-25-01 VFD Motor Cable, CF310-UL, TPE Jacket, 1 Conductors, 14 AWG, 1000 V, 4 x OD
Item: CQ8NQVModel: CF310-25-01Cross Ref: 801LZ3
7 In Stock
Ships within 2 days via
10.00% off
€5.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Cable |
| Cable Series | CF310-UL Series |
| Conductor Size | 14 AWG |
| Jacket Color | Signal Black |
| Jacket Material | TPE |
| Length | Order By The Foot |
| Max. Acceleration | 328.1 m/sq. sec. |
| Max. Operating Temp. | 194°F |
| Maximum Velocity (supported) | 20 FPS |
| Maximum Velocity (unsupported) | 33 FPS |
| Min. Operating Temp. (fixed) | -58°F |
| Min. Operating Temp. (flexible) | -49°F |
| Minimum Bend Radius Factor (flexible) | 6 x OD |
| Minimum Bend Radius Factor - E-chain | 7.5 x OD |
| Minimum Bend Radius Factor - Fixed | 4 x OD |
| Number Of Conductors | 1 |
| Outside Dia. | 6/25" |
| Resistance Properties | Oil And Grease Resistant, UV/Sunlight Resistant |
| Shielding | Shielded |
| Voltage | 1000V |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Jacket Color | Shielding | Voltage | Number Of Conductors | Includes Ground | Max. Operating Temp. | Jacket Material | Conductor Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CF888-021 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.98 | |
| CF888-045 | Red | Shielded | 50V | - | No | 158°F | - | - | €3.92 | |
| CF888-001 | Red | Shielded | 50V | - | No | 158°F | - | - | €2.58 | |
| CF888-060 | Yellow, Green | Shielded | 50V | - | No | 158°F | - | - | €4.07 | |
| CF898-083 | Black | Shielded | 50V | - | No | 158°F | PUR | - | €5.21 | |
| CF898-082 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €5.21 | |
| CF898-080 | Yellow | Shielded | - | - | No | 158°F | PUR | - | €4.40 |
