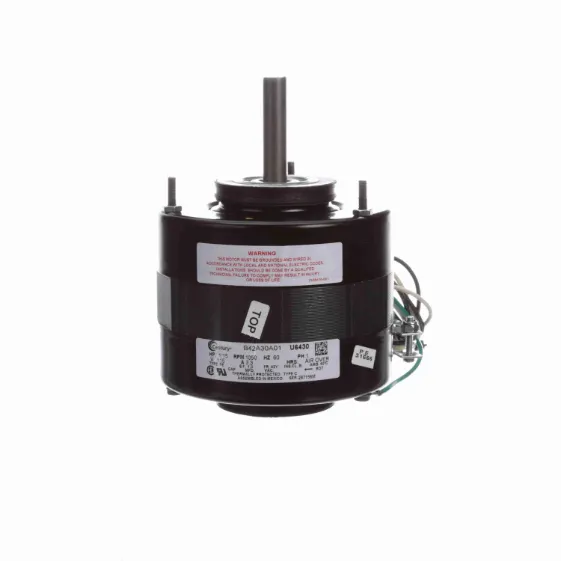

CENTURY U6430 Fan/Blower Motors, 5 Inch Dia
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€353.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Body Dia. | 5" |
| Frame | 42 |
| Full Load Amps | 3.3A |
| Hp | 1/15 hp |
| Hz | 60 Hz |
| Includes | #10-32 Extended Studs, Conduit Connector, Resilient Rings |
| Ins. Class | Class B |
| Lead Length | 35" |
| Length Less Shaft | 4 11/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Totally Enclosed |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CCWLE |
| Motor Sub Application | Unit Heater |
| Motor Thermal Protection | Auto |
| Mounting Stud Length | 11/16" |
| Mounting Stud Location | Shaft End |
| Nameplate Rpm | 1050 RPM |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Overall Length | 6 13/16" |
| Phase | Single |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 4 5/16" |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 11/16" |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 8 lbs. |
Shipping Info:
| Ship weight (kg) | 8 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 22.53 |
| Ship width (cm) | 14.76 |
| Country of Origin | MX |
Product Variants
| Model | Motor Mounting Type | Shaft Length | Hp | Nameplate Rpm | Motor Enclosure Design | Voltage | No. Of Speeds | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KT61DZ060 | - | - | - | - | - | - | - | - | €283.74 | |
| HT32TC705 | - | - | - | - | - | - | - | - | €208.82 | |
| HT32BH943 | - | - | - | - | - | - | - | - | €152.15 | |
| LA22RB575 | - | - | - | - | - | - | - | - | €267.17 | |
| 17122000002587 | - | - | - | - | - | - | - | - | €127.92 | |
| 48HG500422 | - | - | - | - | - | - | - | - | €67.01 | |
| P291-0773 | - | - | - | - | - | - | - | - | €26.04 |
