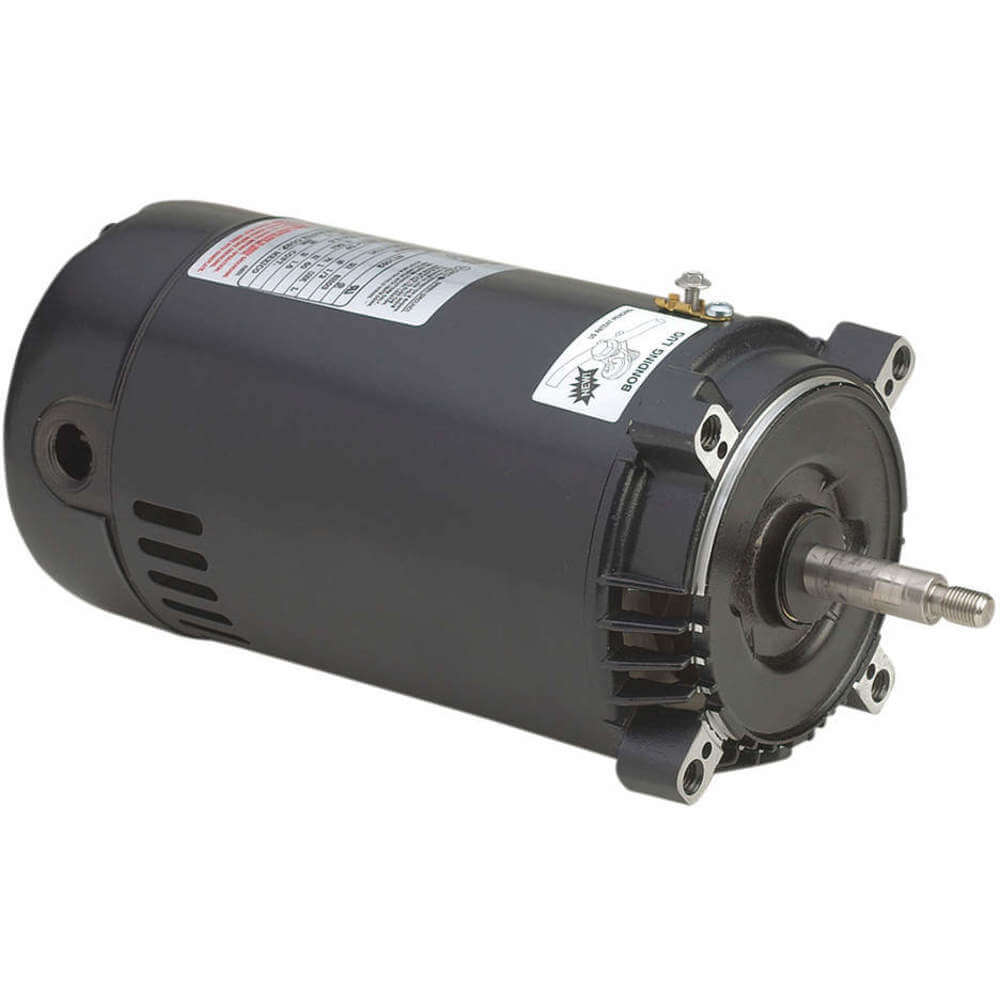

CENTURY ST1072 Pool Motor 3/4 Hp 3450 Rpm 115/230vac
Get it by Tuesday, Dec 23
10.00% off
€418.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pool and Spa Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Bolt Circle Dia. | 5 13/16" |
| Color | Black |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Finish | Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 15/7.5A |
| Height | 5 5/8" |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Length Less Shaft | 10 15/16" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face Footless |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Height | 5 5/8" |
| Overall Length | 13 1/2" |
| Phase | 1 |
| Service Factor | 1.5 |
| Service Factor Amps | 15/7.5A |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/8" |
| Shaft Material | Stainless Steel |
| Shaft Size | 5/8" |
| Shaft Thread Class | Class 2A |
| Shaft Thread Direction | Right Hand |
| Shaft Thread Size | 7/16"-20 |
| Shaft Thread Type | Fine |
| Shaft Type | Threaded |
| Standards | Csa, Ul |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 21 lbs. |
Shipping Info:
| Ship weight (kg) | 21 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| HS code | 8501404040 |
| Country of Origin | TH |
Product Variants
| Model | Service Factor | Frame | Voltage | Phase | Nameplate Rpm | Motor Shaft Rotation | Motor Application | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| USN1202 | 1.2 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 2 hp | €896.09 | |
| USN1152 | 1.25 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 1 1/2 hp | €802.70 | |
| SN1202 | 1.35 | 56J | 208-230V AC | 1 | - | Counter Clockwise Shaft End | Pump | 2 hp | €1,092.56 | |
| SN1152 | 1.6 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 1 1/2 hp | €956.64 | |
| SN1102 | 1.85 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 1 hp | €856.79 | |
| SN1072 | 1.85 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 3/4 hp | €783.31 | |
| USN1302 | 1.2 | 56J | 208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 3 hp | €1,446.07 |
