CENTURY RF6402 Motor Shaded Pole 1/10 Hp 1050 115/208-230 42y
Get it by Tuesday, Dec 23
10.00% off
€314.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Bolt Circle Dia. | 3 1/2" |
| Capacitor Included | No |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Frame | 42Y |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 4/2A |
| Hp | 1/10 hp |
| Hz | 60 Hz |
| Includes | Extended Studs, Hex Nuts, Mounting Clamps, Mounting Ring Adaptors, Resilient Rings |
| Insulation Class | Class A |
| Lead Length | 29" |
| Length Less Shaft | 4 15/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Cradle Base |
| Mounting Holes | (4) #10-32 |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 2 1/2" x 2 1/2" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1050 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 7 3/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 4 9/16" |
| Service Factor | 1 |
| Shaft Dia. | 3/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | Flat |
| Stud Location | Shaft End |
| Stud Pattern | 2 1/2" x 2 1/2" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Weight | 11 lbs. |
Shipping Info:
| Ship weight (kg) | 11 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 22.53 |
| Ship width (cm) | 14.76 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Nameplate Rpm | Motor Shaft Rotation | Voltage | Hp | Motor Enclosure Design | Motor Type | No. Of Speeds | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

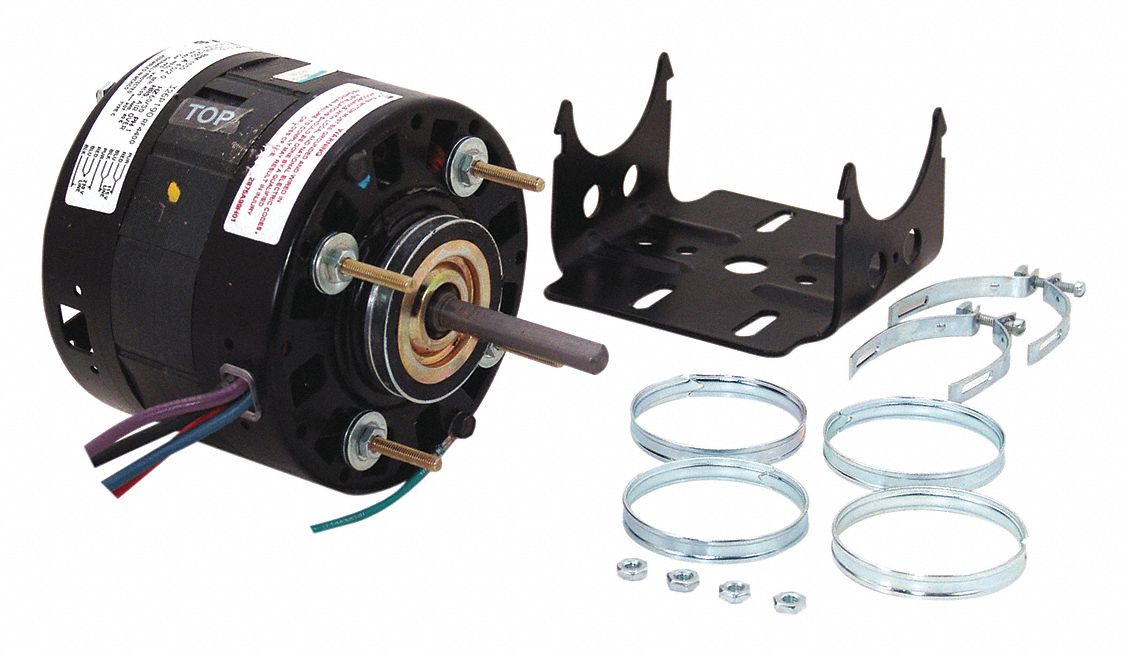

RF4400 | 1550 RPM | Clockwise Shaft End | 115/208-230V AC | 1/10 hp | Open Air Over | Shaded Pole | 1 | Ring, Stud | €291.96 | |
 |
RF6403 | 1050 RPM | CCWLE | 115/208-230V AC | 1/10 hp | Open Air Over | Shaded Pole | 1 | Ring, Stud | €343.93 | |
 |
RF4401 | 1550 RPM | Counter Clockwise Shaft End | 115/208-230V AC | 1/10 hp | Open Air Over | Shaded Pole | 1 | Ring, Stud | €313.87 |
