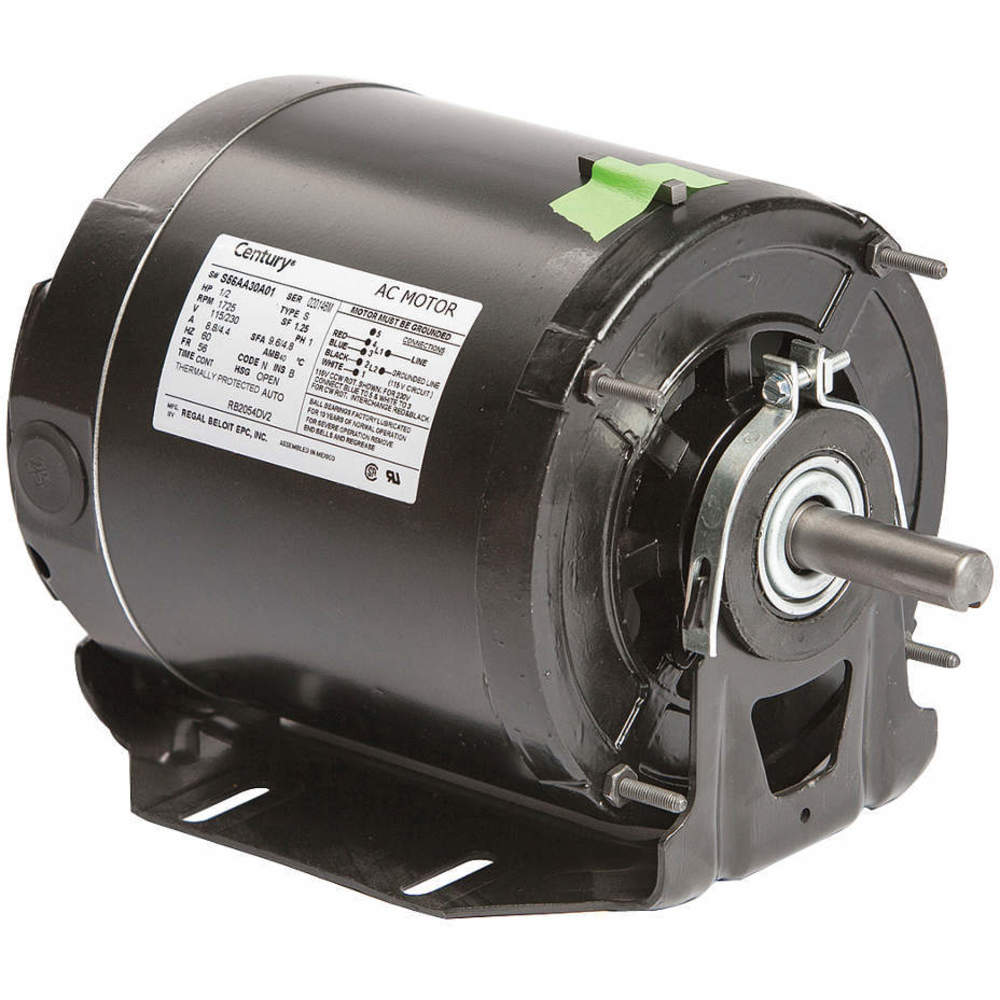

CENTURY RB2054DV2 Motor Split Phase 1/2 Hp 1725 115/230v 56 Open
Get it by Tuesday, Dec 23
10.00% off
€530.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.4A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 5/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Stud Pattern | 4 1/8" x 4 1/8" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 10 5/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 7 13/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Standards | CSA |
| Stud Pattern | 4 1/8" x 4 1/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 20 lbs. |
Shipping Info:
| Ship weight (kg) | 20 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 20.32 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Rpm Range | Motor Enclosure Design | No. Of Speeds | Motor Mounting Type | Phase | Nameplate Rpm | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H262V2 | 200-230/460V AC | 1701-1800 RPM | Open Dripproof | 1 | Cradle Base | 3 | 1725 RPM | 56 | €561.19 | |
 |
B722L | 115/208-230V AC | 3001-3600 RPM | Open Dripproof | 1 | Cradle Base | 1 | 3450 RPM | 56 | €805.40 | |
 |
H843V1 | 200-230/460V AC | 3001-3600 RPM | Open Dripproof | 1 | Cradle Base | 3 | 3450 RPM | 56H | €560.97 | |
 |
H844 | 200-230/460V AC | 3001-3600 RPM | Open Dripproof | 1 | Cradle Base | 3 | 3450 RPM | 56H | €568.05 | |
 |
RB1204AV1 | 115/208-230V AC | 1701-1800 RPM | Open Dripproof | 1 | Cradle Base | 1 | 1725 RPM | 56H | €911.01 | |
 |
C533 | 115V AC | 1701-1800 RPM | Open Dripproof | 2 | Cradle Base | 1 | 1725/1140 RPM | 56 | €1,015.34 | |
|
C471A | 115V AC | 1701-1800 RPM | Open Dripproof | 2 | Cradle Base | 1 | 1725/1140 RPM | 56 | - | RFQ
|
