CENTURY HW2024BL Water Circulator Motor Nema/iec Bracket
Get it by Wednesday, Dec 17
10.00% off
€459.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Water Circulator Motor |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Compatible With Pump Type | In Line Circulating Pumps |
| Duty Cycle | Continuous |
| Finish | Red |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 4.6A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 3/8" |
| Max. Ambient Temp. | 70°C |
| Maximum Ambient Temperature | 122°F |
| Maximum Rpm | 1725 RPM |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Spot Drill |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Water Circulator |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 8 15/16" |
| Phase | 1 |
| Pump Type | In-Line Circulating Pump |
| Replacement For | Mfr. No. HW2024B |
| Resilient Ring Dia. | 2 1/2" |
| Ring Dia. | 2 1/2" |
| Ring To Ring Center | 8 3/8" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5/8" |
| Standards | Csa, Ul Listed |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 19 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 25.4 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Full Load Amps | Motor Shaft Rotation | Motor Type | Phase | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

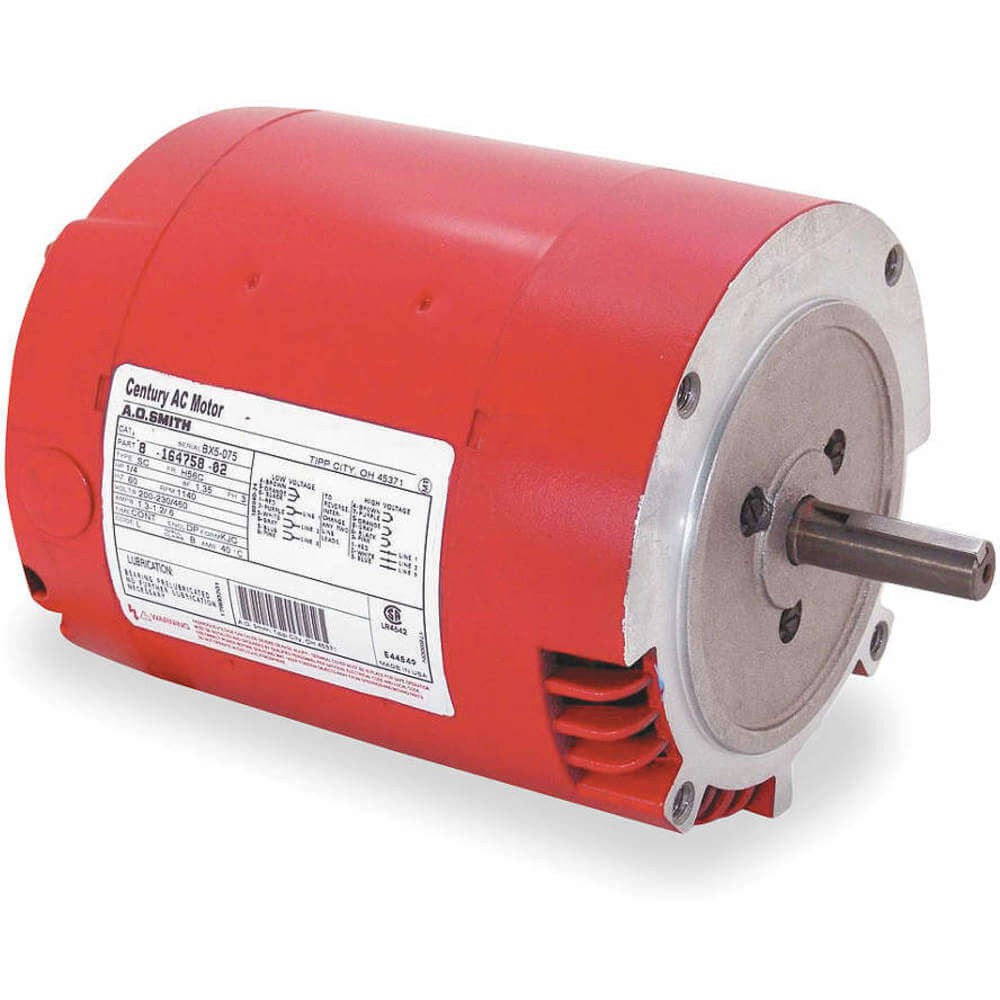

H1043L | 208-230/460V AC | 1 hp | 56CZ | 3.4A | Clockwise/Counter Clockwise | Three Phase | 3 | 50°C | €596.96 | |
 |

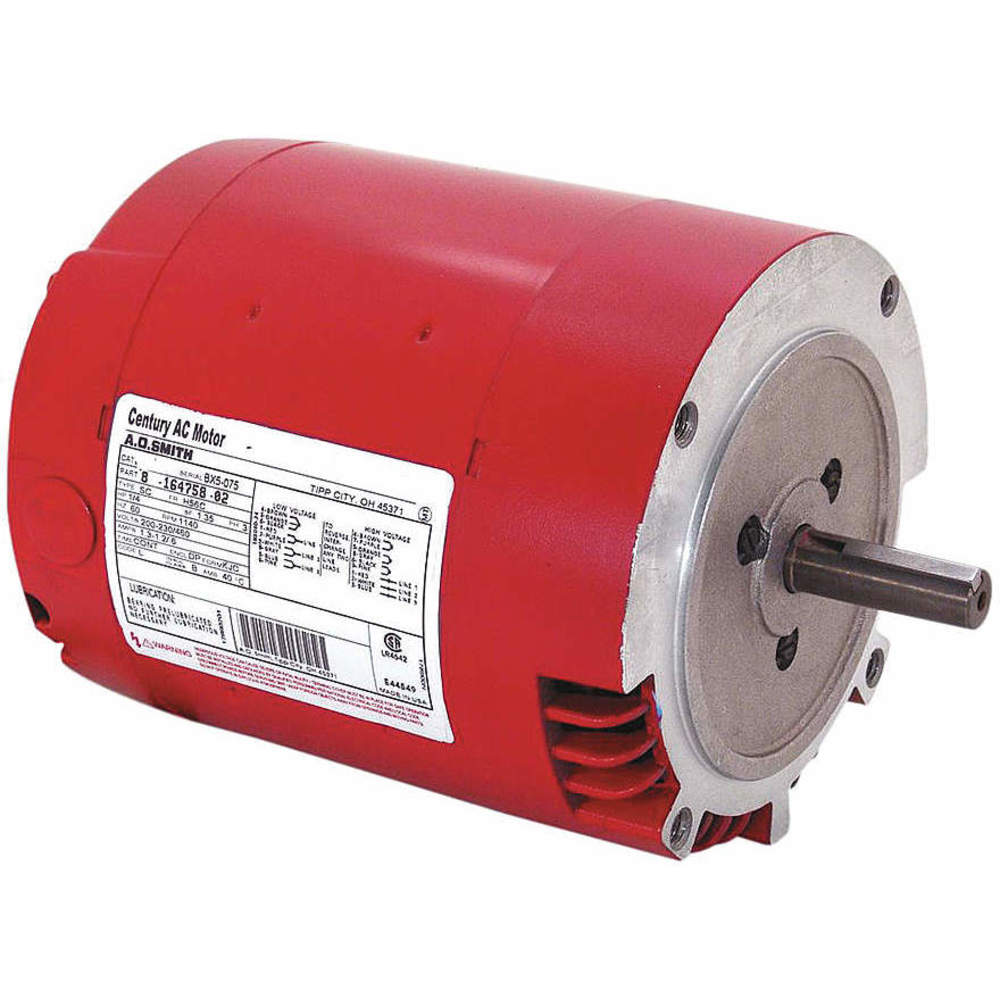

H1042L | 208-240/460V AC | 3/4 hp | 56CZ | 2.7A | Clockwise/Counter Clockwise | Three Phase | 3 | 50°C | €936.33 | |
 |

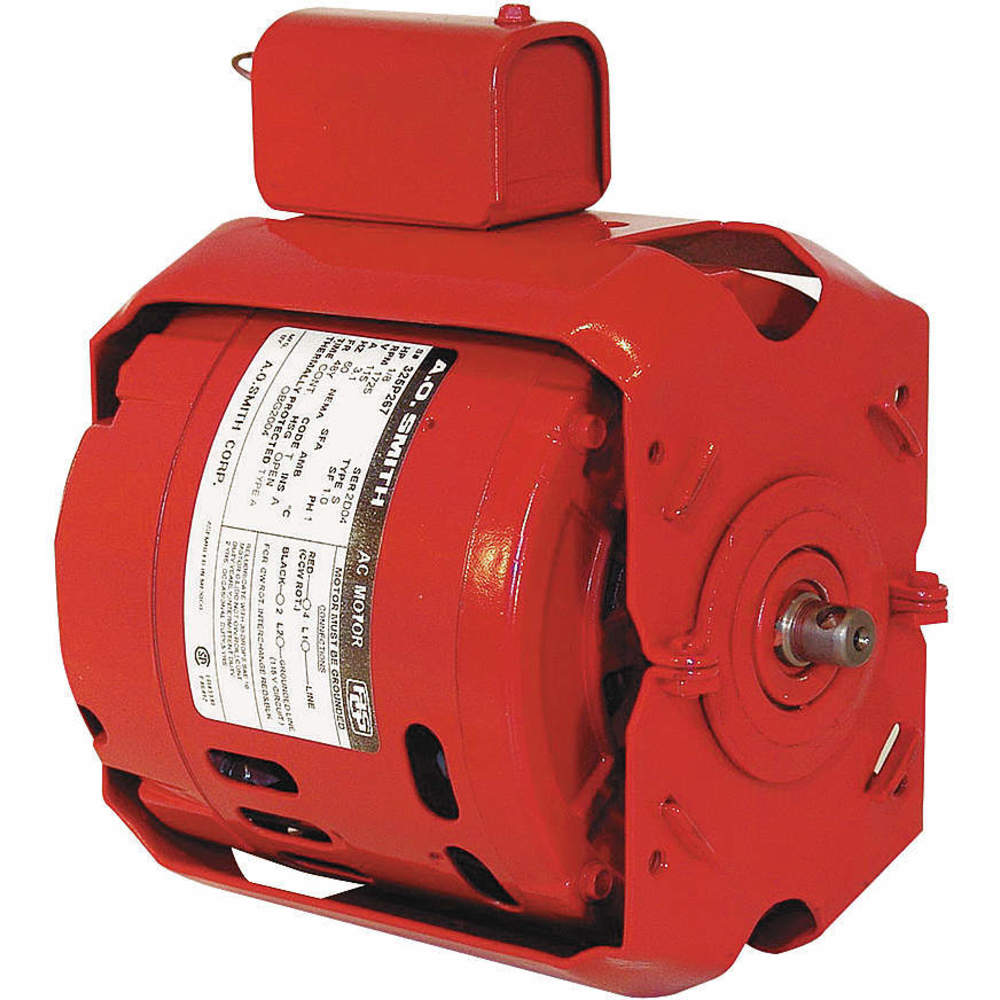

HW2024B1L | 115V AC | 1/4 hp | 48Z | 3.5A | Clockwise/Counter Clockwise | Split Phase | 1 | 50°C | €490.35 | |
|
HW2034BL | 115V AC | 1/3 hp | 48Z | 5.7A | Clockwise Lead End | Split Phase | 1 | 50°C | €619.99 |
