CENTURY

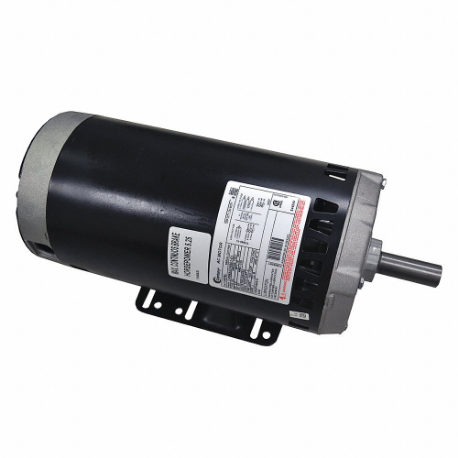

CENTURY H979L Belt Drive Motor, Carrier/BDP OEM Repl, 5 HP, 1, 725 Nameplate RPM, 208-230/460VAC

Item: CQ8LMYModel: H979LCross Ref: 45GM03

In Stock

Get it by Thursday, Aug 27

€1,871.02 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Belt Drive Motor
Ambient Temp.	40°C
Bearing Type	Ball
Body Dia.	6 1/2"
Capacitor Required	No
Duty Cycle	Continuous
Frame	56Y
Frame Material	Steel
Full Load Amps	14.5-14.4/7.2A
Hp	5 hp
Ins. Class	Class B
Length Less Shaft	16 1/16"
Max. Ambient Temp.	104°F
Motor Application	OEM Replacement
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	CW, CCW
Motor Sub Application	Belt Drive Fan, Blower
Motor Thermal Protection	None
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Speed	1725 RPM
No. Of Shafts	1
No. Of Speed	1
No. Of Speeds	1
Overall Length	16 5/16"
Phase	3
Replacement For	182779
Service Factor	1.15
Shaft Dia.	7/8"
Shaft Length	2 5/16"
Thermal Protection	None
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V AC

Model	Motor Enclosure Design	Voltage	Phase	Full Load Amps	Hp	Service Factor	Mounting Type	Motor Type	Price
H845	Dripproof	200-230/460V AC	3	4.3/9-8.6A	3 hp	1.15	Cushion Base	Three Phase	€844.80
BK3074	-	208-230V/460V	3	2.5/1.25A	-	1.25	-	-	€736.91
RB3154AV1	Open Dripproof	208-230/460V AC	3	4.6/2.3A	1 1/2 hp	1.15	Resilient Base	Three Phase	€819.92
H852L	Open Dripproof	200-230/460V AC	3	2/3.7-4A	-	1.15	Resilient Base	Three Phase	€696.41
RB3204AV1	Open Dripproof	208-230/460V AC	3	5.8/2.9A	2 hp	1.15	Resilient Base	Three Phase	€806.42
OB3204V1	Open Drip Proof	200-230V/460V	3	6.8/3.4A	2 hp	1.15	-	-	€697.80
H847	Dripproof	208-230/460V AC	3	6.6/13.4-13.2A	5 hp	1.15	Rigid Base	Three Phase	€978.45
