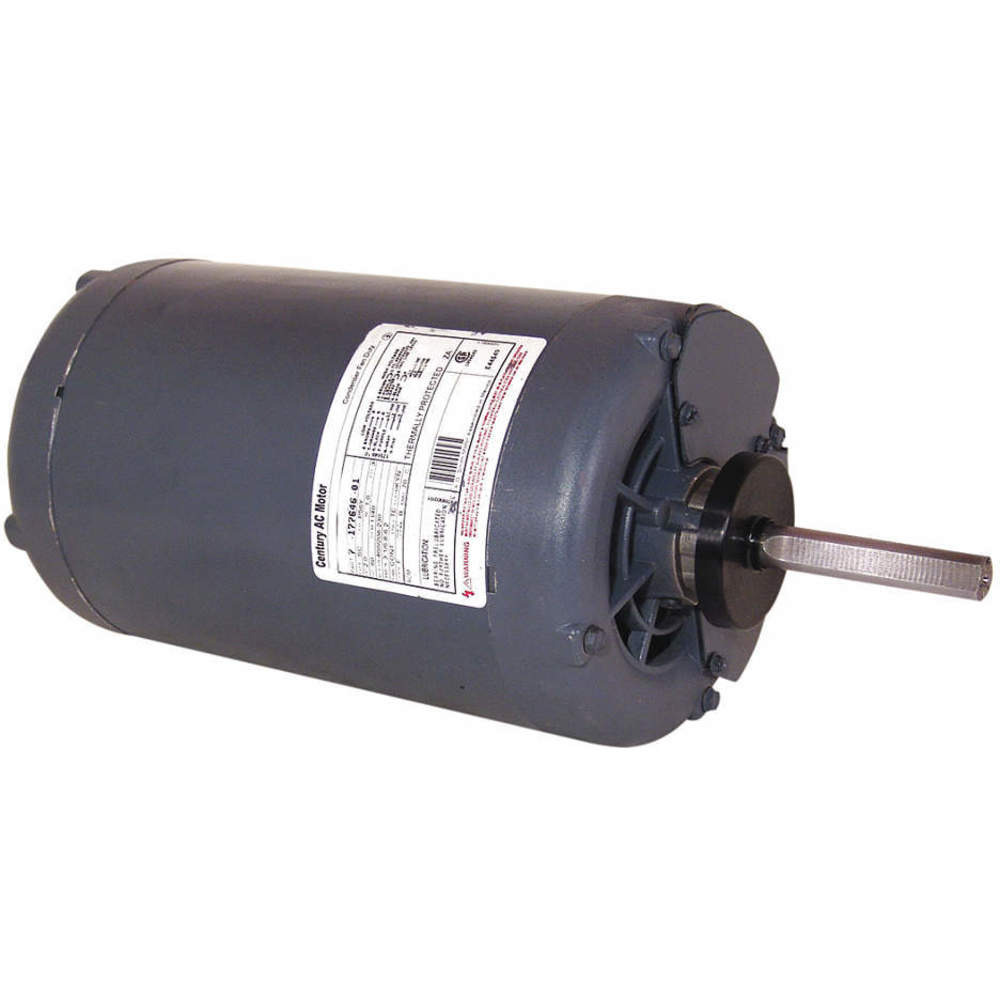

CENTURY H699 Condenser Fan Motor 2 Hp 1140 Rpm 60 Hz
Get it by Tuesday, Sep 1
€722.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 1/8" |
| Duty Cycle | Continuous |
| Efficiency | 84% |
| Enclosure Type | Open Air Over |
| Features | Quick Connect Design, Reversible |
| Frame | 56Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.8-6.2/3.1A |
| Hp | 2 hp |
| Insulation Class | Class B |
| Length | 18 3/16" |
| Length Less Shaft | 12" |
| Max. Ambient Temp. | 60°C |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Band |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Nominal Efficiency | 84% |
| Output Watts | 1500 W |
| Overall Length | 18 3/16" |
| Phase | 3 |
| Power | 1.5 kW |
| Power | 1500 W |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 6 3/16" |
| Shaft Orientation | Up |
| Shaft Type | Keyed |
| Speed | 1140 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 44 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 25.4 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Phase | Shaft Length | Motor Design | Motor Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24PR70 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 3" | 3-Phase | Band | €1,041.14 | |
 |
24PR71 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | 3-Phase | Band | €1,156.23 | |
|
24PR72 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | 3-Phase | Band | €638.48 | |
|
24PR73 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | 3 | - | 3-Phase | Band | €1,171.38 | |
|
24PR74 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | - | 5 5/8" | 3-Phase | Band | €1,012.76 | |
|
24PR75 | 208-230/460V AC | 2 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | 3-Phase | Band | €823.68 | |
 |
24PR76 | 230/460V AC | 1/2 hp | Vertical Shaft Up | 56YZ | 3 | 3 1/4" | 3-Phase | Rigid Base | €1,329.86 |
