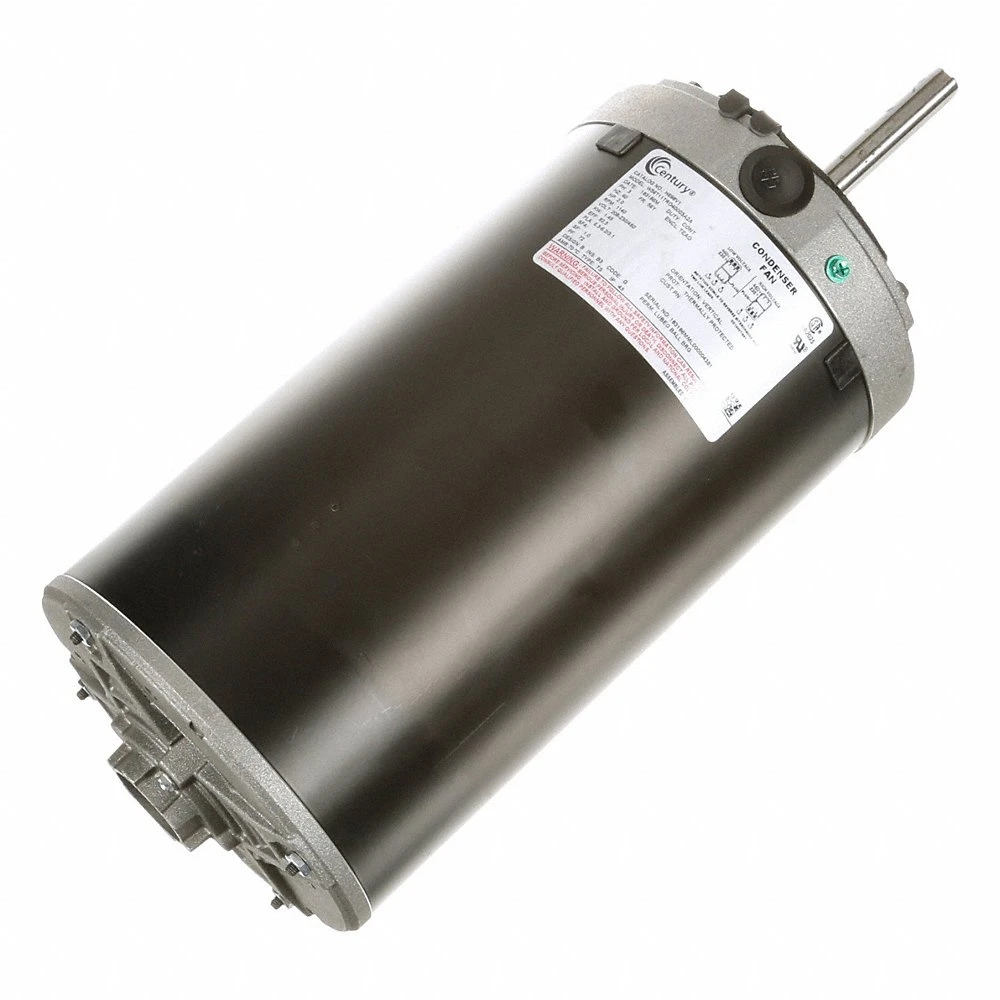

CENTURY H698V1 Direct Drive Blower Motor, 1 Speed, Totally Enclosed Air-Over, 2 HP, 1140 Nameplate RPM
Get it by Friday, Aug 21
€1,001.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Ambient Temp. | 70°C |
| Bearing Drive End | Ball |
| Body Dia. | 6 1/2" |
| Capacitor Required | Capacitor Not Required |
| Duty Cycle | Continuous |
| Electrical Phase | 3 |
| Enclosure | Teao |
| Enclosure Type | Totally Enclosed |
| Frame Type | 56Y |
| Frequency | 60 Hz |
| Full Load Amps | 6.2/3.1A , 6.3-6.2/3.1A , 6.2/3.1A, 6.3-6.2/3.1A |
| Hp | 2 hp |
| Insulation Class | Class B |
| Material | Rolled Steel |
| Motor Design | Three-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | C-Face |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Nameplate Speed | 1140 RPM |
| No. Of Speeds | 1 |
| Phase | 3 |
| Rotation | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 0.625" , 5/8" |
| Shaft Length | 3 7/16" |
| Speed | 1000-1425 RPM , 1100-1200 RPM |
| Thermal Protection | Thermally Protected |
| Usable @ 208 V | No |
| Voltage | 208-230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 20.32 |
| Country of Origin | MX |
