CENTURY H1039L Motor 3 Phase 5 Hp 3450 208-230/460v Eff 85.2
Get it by Monday, Jul 13
€776.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Bearing Type | Ball |
| Body Dia. | 6 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Footnotes | 15 |
| Frame | 56HZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.4-13.2/6.6A |
| Hp | 5 hp |
| Insulation Class | Class B |
| Length Less Shaft | 12 1/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Belt Drive Fan, Blower |
| Motor Thermal Protection | Auto |
| Mounting Stud Pattern | 4 1/8" x 4 1/8" |
| Mounting Type | Cradle Base |
| Nameplate Speed | 3450 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.2% |
| Overall Length | 14 9/16" |
| Phase | 3 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 11 15/16" |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 5/16" |
| Speed | 3001-3600 RPM |
| Stud Pattern | 4 1/8" x 4 1/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 50 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 30.48 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Type | Frame Material | Insulation Class | Body Dia. | Nominal Efficiency | Usable @ 200v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

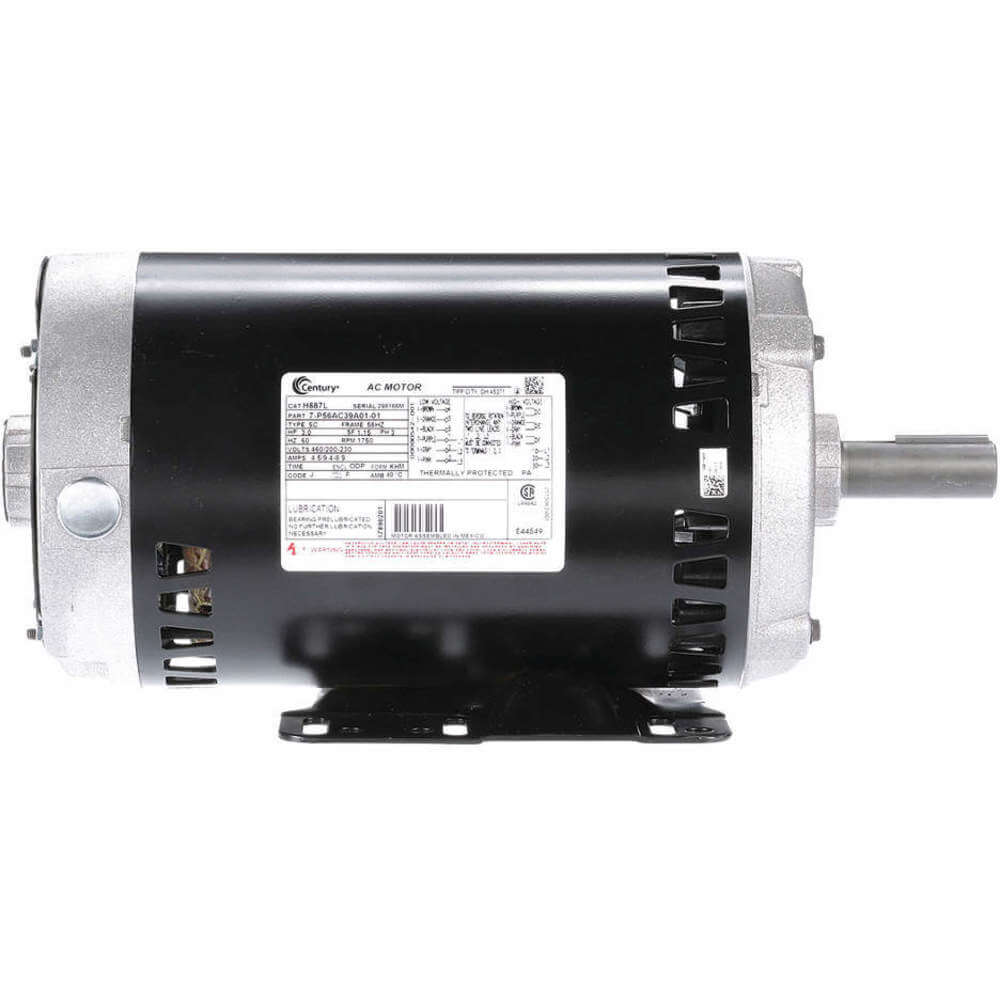

H887L | 200-230/460V AC | 3 hp | Rigid Base | Rolled Steel | Class F | 6 1/2" | 83.1% | Yes | €820.66 |
