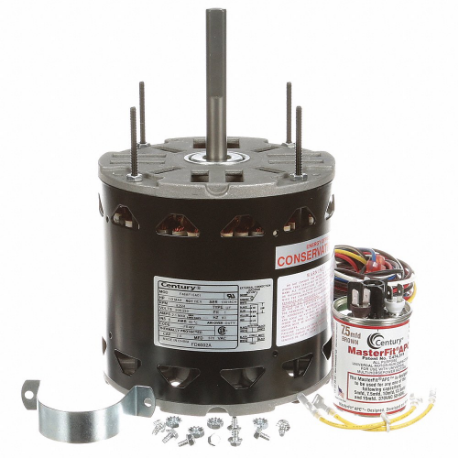

CENTURY FD6002A Direct Drive Blower Motor, 4 Speed, Open Air-Over, Stud Mount, 1/3, 1/8 Hp, 208-230VAC
Get it by Wednesday, Dec 24
10.00% off
€312.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 3/16" |
| Capacitor Required | 2MEC2 |
| Cord Length | 36" |
| Efficiency | 0.6% |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.01A |
| Hp | 1/3 hp, 1/8 hp |
| Includes | Capacitor |
| Ins. Class | Class B |
| Lead Length | 36" |
| Length Less Shaft | 5 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Hole Thread Size | #8-32 |
| Mounting Holes | (4) #8-32 |
| Mounting Stud Length | 1 1/2" |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Stud |
| Nameplate Rpm | 825 RPM |
| No. Of Shafts | 1 |
| No. Of Speeds | 4 |
| No. Of Studs | 4 |
| Nominal Efficiency | 0.6% |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 8 7/8" |
| Phase | Single |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3 1/2" |
| Stud Length | 1 1/2" |
| Stud Location | Shaft End |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 14 lbs. |
Shipping Info:
| Ship weight (kg) | 14 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 35 |
| Ship width (cm) | 16.28 |
| Country of Origin | IN |
Product Variants
| Model | Motor Mounting Type | Shaft Length | Hp | Nameplate Rpm | Motor Enclosure Design | Voltage | No. Of Speeds | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| KT61DZ060 | - | - | - | - | - | - | - | - | €283.74 | |
| HT32TC705 | - | - | - | - | - | - | - | - | €208.82 | |
| HT32BH943 | - | - | - | - | - | - | - | - | €152.15 | |
| LA22RB575 | - | - | - | - | - | - | - | - | €267.17 | |
| 17122000002587 | - | - | - | - | - | - | - | - | €127.92 | |
| 48HG500422 | - | - | - | - | - | - | - | - | €67.01 | |
| P291-0773 | - | - | - | - | - | - | - | - | €26.04 |
