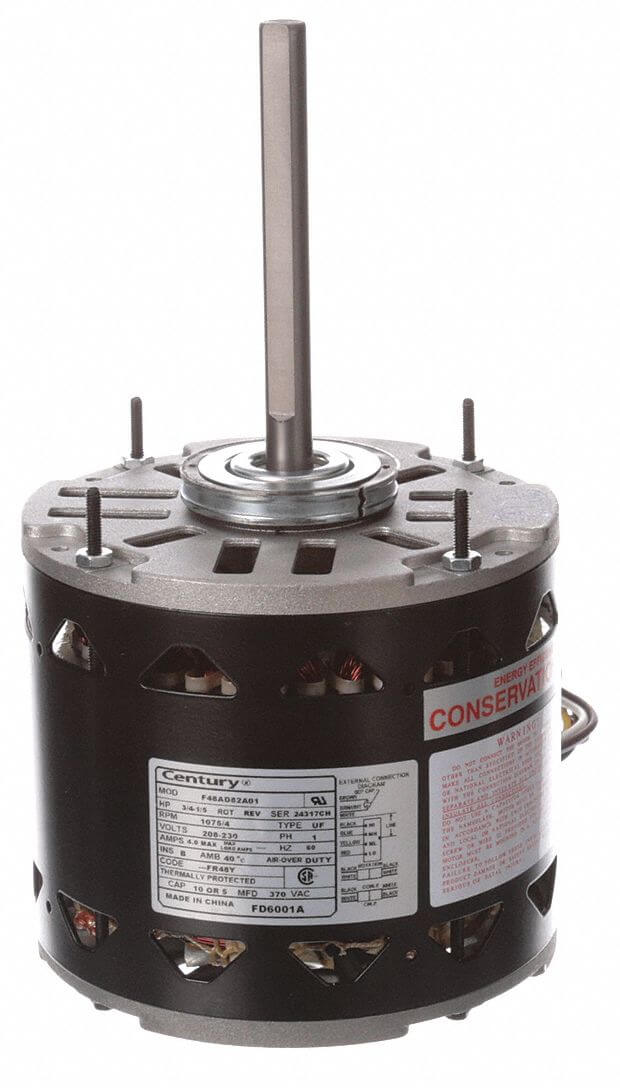

CENTURY FD6001A Motor Psc 3/4 Hp 1075 208-230v 48y Open
Get it by Tuesday, Dec 23
10.00% off
€241.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 3/16" |
| Capacitor Required | Included |
| Duty Cycle | Continuous |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4A |
| Hp | 1/5 hp to 3/4 hp |
| Includes | Resilient Mounting Ring |
| Insulation Class | Class B |
| Lead Length | 36" |
| Length Less Shaft | 5 13/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Resilient Ring Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Stud |
| Mounting Holes | (4) #8-32 |
| Mounting Stud Length | 5/8" |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1075 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 4 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 10 3/8" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 5 7/16" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 5" |
| Shaft Type | Flat |
| Stud Length | 5/8" |
| Stud Location | Shaft End |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 16 lbs. |
Shipping Info:
| Ship weight (kg) | 16 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 35 |
| Ship width (cm) | 16.28 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Motor Type | Shaft Dia. | Motor Shaft Rotation | Hp | No. Of Speeds | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGF8 | 115V AC | 1550 RPM | Shaded Pole | 1/2" | Counter Clockwise Shaft End | 1/17 hp | 3 | 2 3/4" | €288.91 | |
 |
1AGF9 | 115V AC | 1550 RPM | Permanent Split Capacitor | 1/2" | Counter Clockwise Shaft End | 1/8 hp | 3 | 3 3/4" | €309.38 | |
 |
3LU71 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 6" | €179.41 | |
 |
3LU72 | 208-230V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 5 13/16" | €263.33 | |
 |
3LU73BG | 115V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €346.96 | |
 |
3LU74 | 208-230V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €379.29 | |
 |
3LU75 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 4 | 6" | €319.51 |
