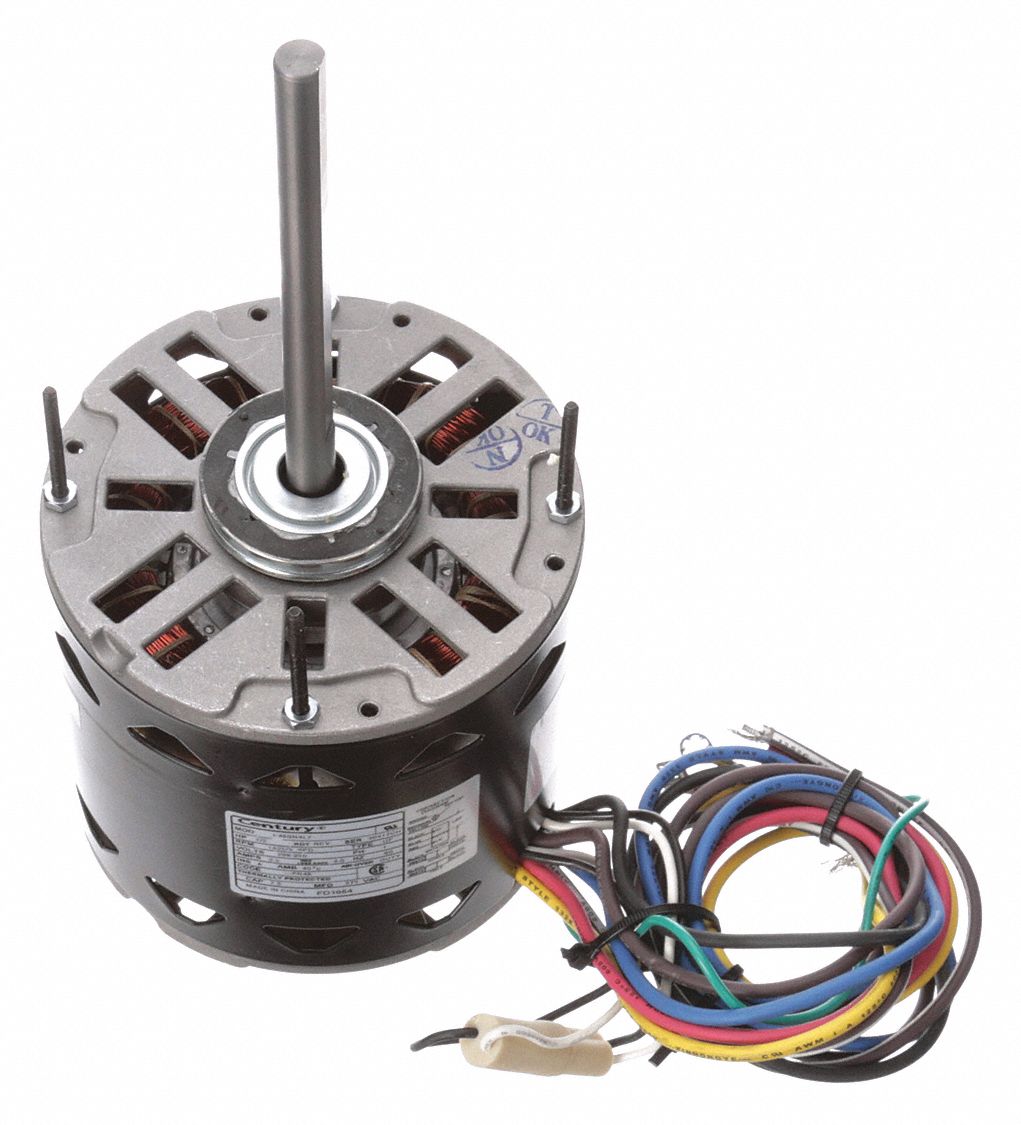

CENTURY FD1054 Motor Psc 1/2 Hp 1625 208-230v 48y Oao
Get it by Wednesday, Dec 24
10.00% off
€380.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Capacitor Included | No |
| Capacitor Required | 2MDV6 |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.08A |
| Hp | 1/2 hp |
| Includes | Belly Band, Resilient Mounting Ring |
| Insulation Class | Class A |
| Lead Length | 26" |
| Length Less Shaft | 6 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Resilient Ring Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting | Stud |
| Mounting Holes | (4) #8-32 |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1625 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 3 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 12 1/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 5 11/16" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6 7/16" |
| Shaft Type | Flat |
| Stud Location | Shaft End |
| Stud Pattern | 3 5/8" x 3 5/8" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 17 lbs. |
Shipping Info:
| Ship weight (kg) | 17 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 35 |
| Ship width (cm) | 16.28 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Mounting Type | Shaft Length | Max. Ambient Temp. | Insulation Class | Capacitor Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FDL1056 | 115V AC | 1/2 hp | 1075 RPM | Ring | 6 1/2" | 50°C | Class A | 2MDV7 | €341.51 | |
 |
FD1056 | 208-230V AC | 1/2 hp | 1075 RPM | Ring | 6 7/16" | 50°C | Class A | 2MDV6 | €330.87 | |
 |

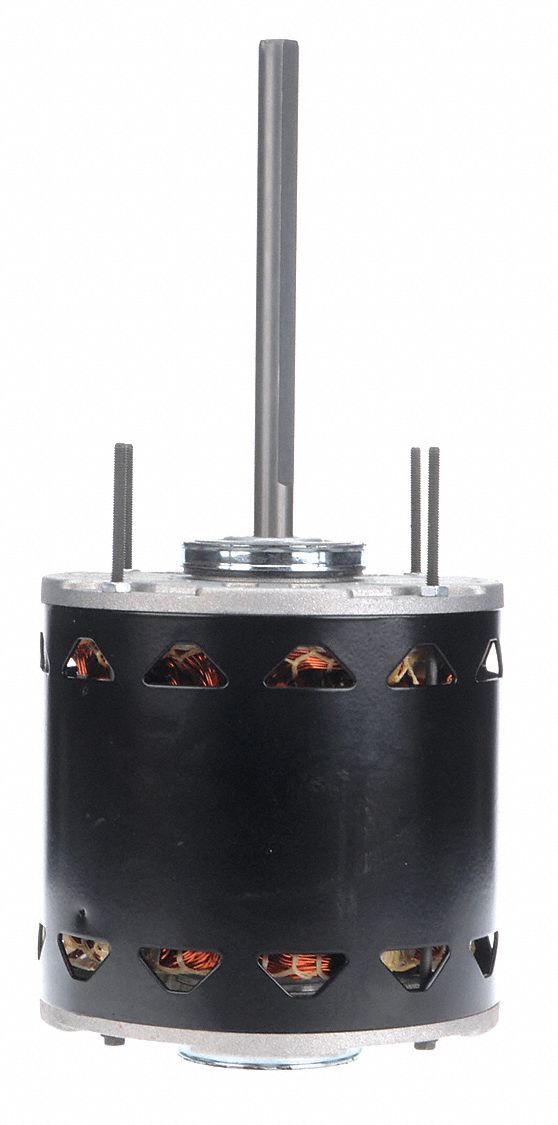

FD1076 | 208-230V AC | 3/4 hp | 1075 RPM | Ring | 6 7/16" | 50°C | Class B | 2MDV7 | €450.99 | |
 |

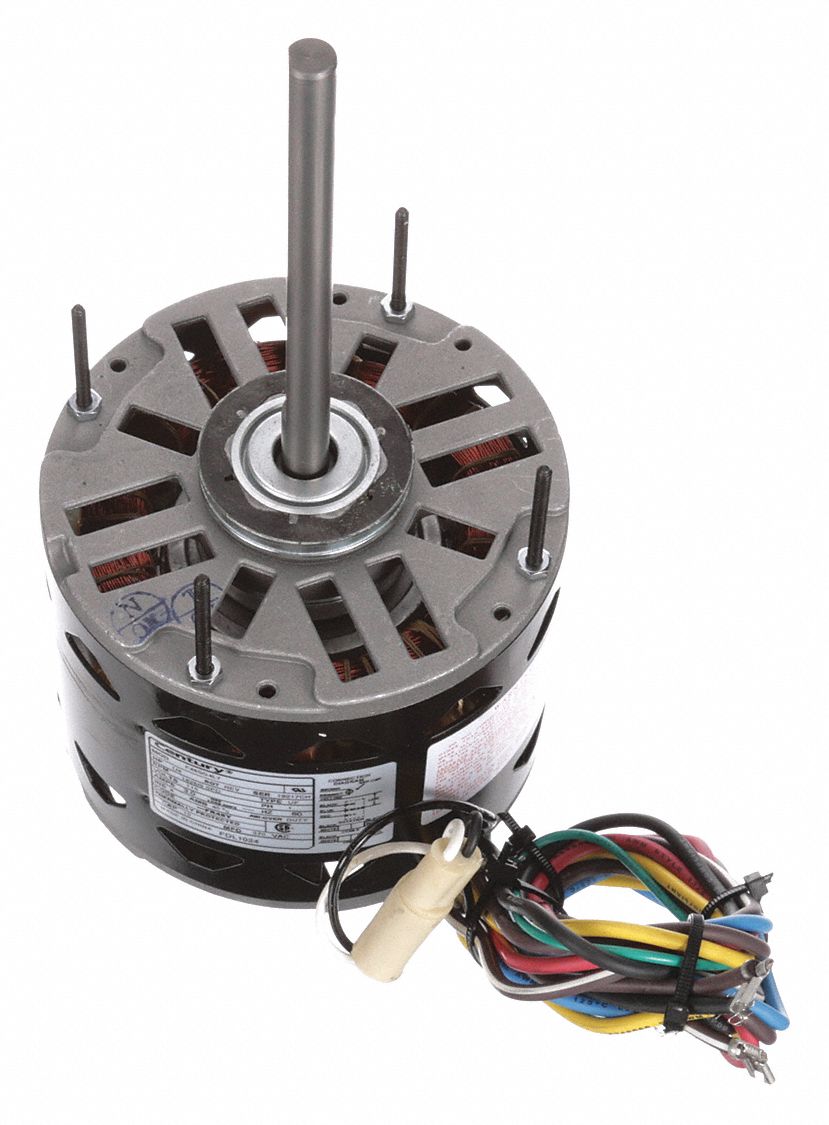

FDL1024 | 115V AC | 1/4 hp | 1625 RPM | Ring | 6 7/16" | 40°C | Class A | 2MDV7 | €392.26 | |
 |

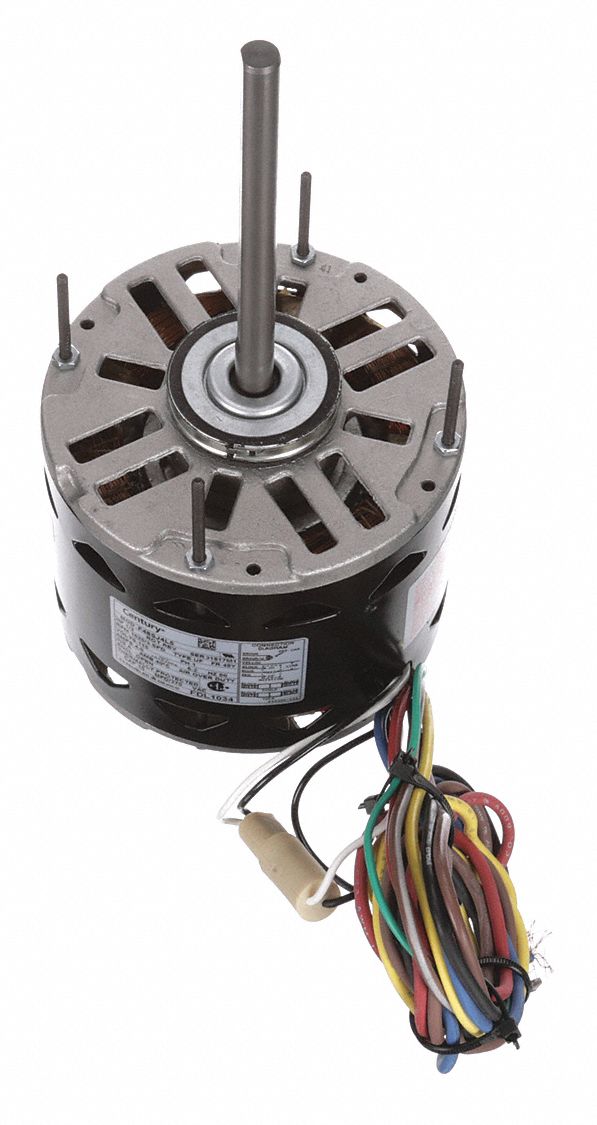

FDL1034 | 115V AC | 1/3 hp | 1625 RPM | Ring | 6 7/16" | 40°C | Class A | 2MDV9 | €353.96 | |
|
FDL1054 | 115V AC | 1/2 hp | 1625 RPM | Ring | 6 7/16" | 40°C | Class A | 2MDV9 | €438.75 | |
|
FDL1074 | 115V AC | 3/4 hp | 1625 RPM | Ring | 6 7/16" | 40°C | Class A | 2MDV9 | €451.09 |
