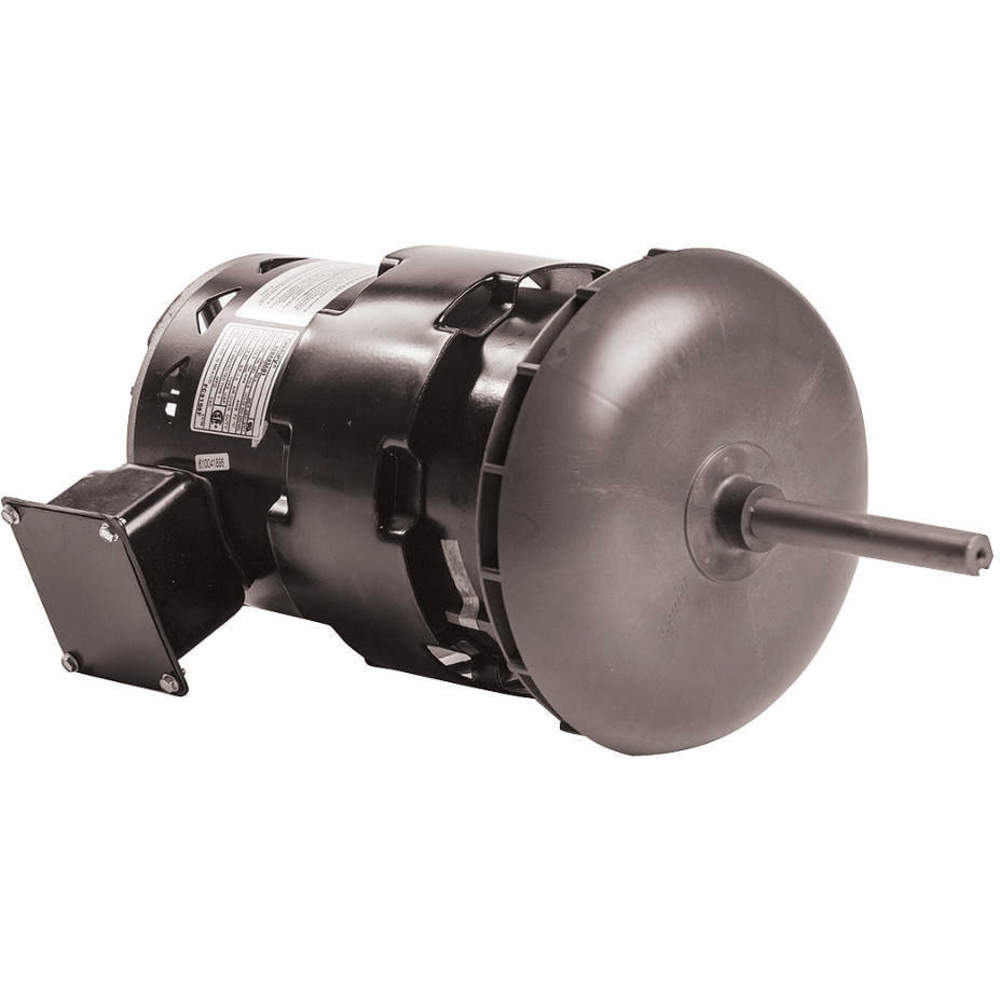

CENTURY FC3156F Condenser Fan Motor 1-1/2hp 1120rpm 60hz
Get it by Tuesday, Dec 23
10.00% off
€1,120.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 70°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Dia. | 5 5/8" |
| Diameter | 5 5/8" |
| Duty Cycle | Continuous |
| Enclosure Type | Open Air Over |
| Features | Belly Band, Thermally Protected, Vertical Shaft Up |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.8/2.9A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Lead Length | 5" |
| Length | 15 7/16" |
| Motor Application | HVAC/R |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Band |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Band |
| No. Of Speeds | 1 |
| Phase | 3 |
| Power | 750 W |
| Power | 0.75 kW |
| Removable Base | Yes |
| Rpm | 1120 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 4 1/16" |
| Shaft Orientation | Vertical |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V AC |
Shipping Info:
| Ship weight (kg) | 31 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 22.86 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Phase | Shaft Length | Motor Enclosure Design | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24PR70 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 3" | Open Air Over | 3-Phase | €1,106.24 | |
 |
24PR71 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €1,306.91 | |
|
24PR72 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €721.68 | |
|
24PR73 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | 3 | - | Open Air Over | 3-Phase | €1,244.59 | |
|
24PR74 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | - | 5 5/8" | Open Air Over | 3-Phase | €1,076.05 | |
|
24PR75 | 208-230/460V AC | 2 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €875.16 | |
 |
24PR76 | 230/460V AC | 1/2 hp | Vertical Shaft Up | 56YZ | 3 | 3 1/4" | Open Air Over | 3-Phase | €1,412.98 |
