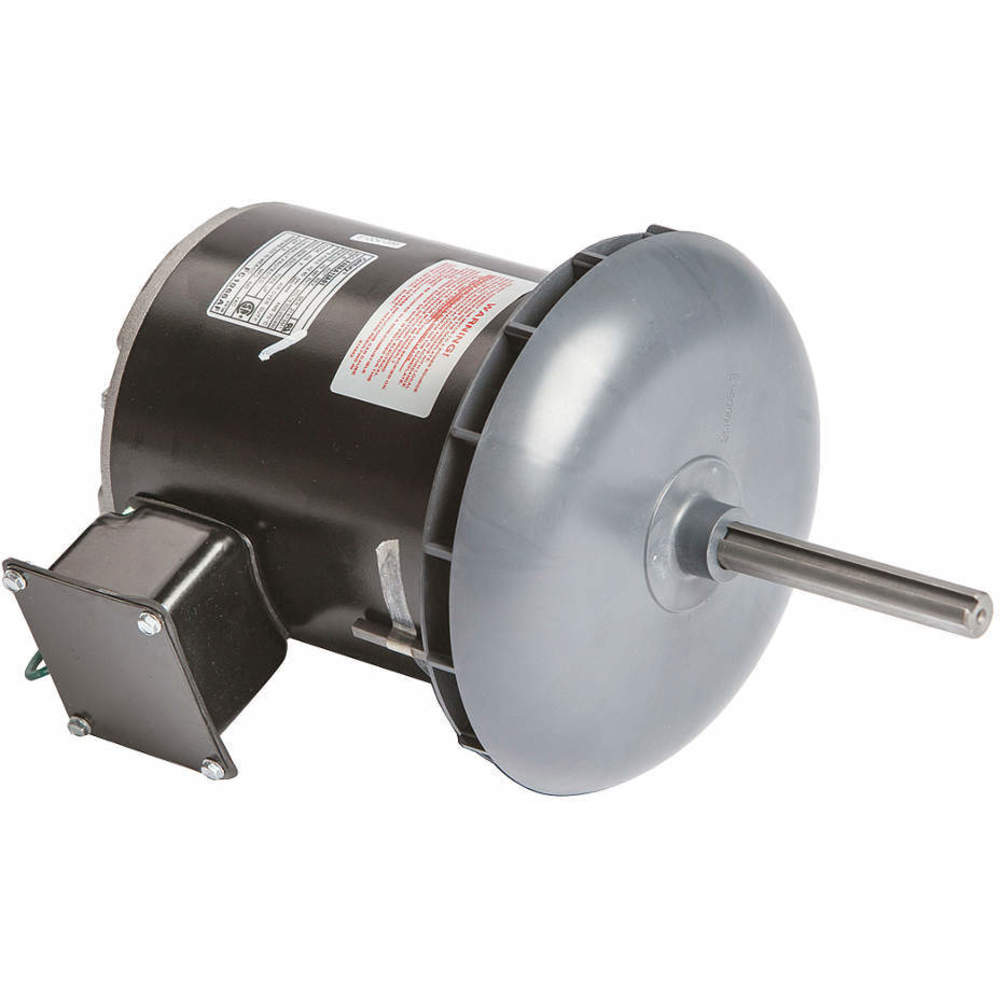

CENTURY FC1066AF Condenser Fan Motor 5/8 Hp 1075 Rpm 60hz
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 70°C |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Capacitor Required | 2MDY7 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Dia. | 5 5/8" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Type | Open Air Over |
| Features | Belly Band, Thermally Protected, Vertical Shaft Up |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4/2A |
| Hp | 5/8 hp |
| Insulation Class | Class F |
| Lead Length | 5" |
| Length | 12 15/16" |
| Length Less Shaft | 9 5/16" |
| Max. Ambient Temp. | 70°C |
| Motor Application | HVAC, R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Band |
| No. Of Speeds | 1 |
| Output Watts | 450 W |
| Overall Length | 12 15/16" |
| Phase | 1 |
| Power | 450 W |
| Power | 0.45 kW |
| Removable Base | Yes |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 3 5/8" |
| Shaft Orientation | Vertical |
| Shaft Type | Keyed |
| Speed | 1075 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V AC |
Shipping Info:
| Ship weight (kg) | 19 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 22.86 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Phase | Shaft Length | Motor Enclosure Design | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24PR70 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 3" | Open Air Over | 3-Phase | €1,041.14 | |
 |
24PR71 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €1,156.23 | |
|
24PR72 | 208-230/460V AC | 1 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €638.48 | |
|
24PR73 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | 3 | - | Open Air Over | 3-Phase | €1,171.38 | |
|
24PR74 | 208-230/460V AC | 1 1/2 hp | Vertical Shaft Up | 56YZ | - | 5 5/8" | Open Air Over | 3-Phase | €1,012.76 | |
|
24PR75 | 208-230/460V AC | 2 hp | Vertical Shaft Up | 56YZ | 3 | 5 5/8" | Open Air Over | 3-Phase | €823.68 | |
 |
24PR76 | 230/460V AC | 1/2 hp | Vertical Shaft Up | 56YZ | 3 | 3 1/4" | Open Air Over | 3-Phase | €1,329.86 |
