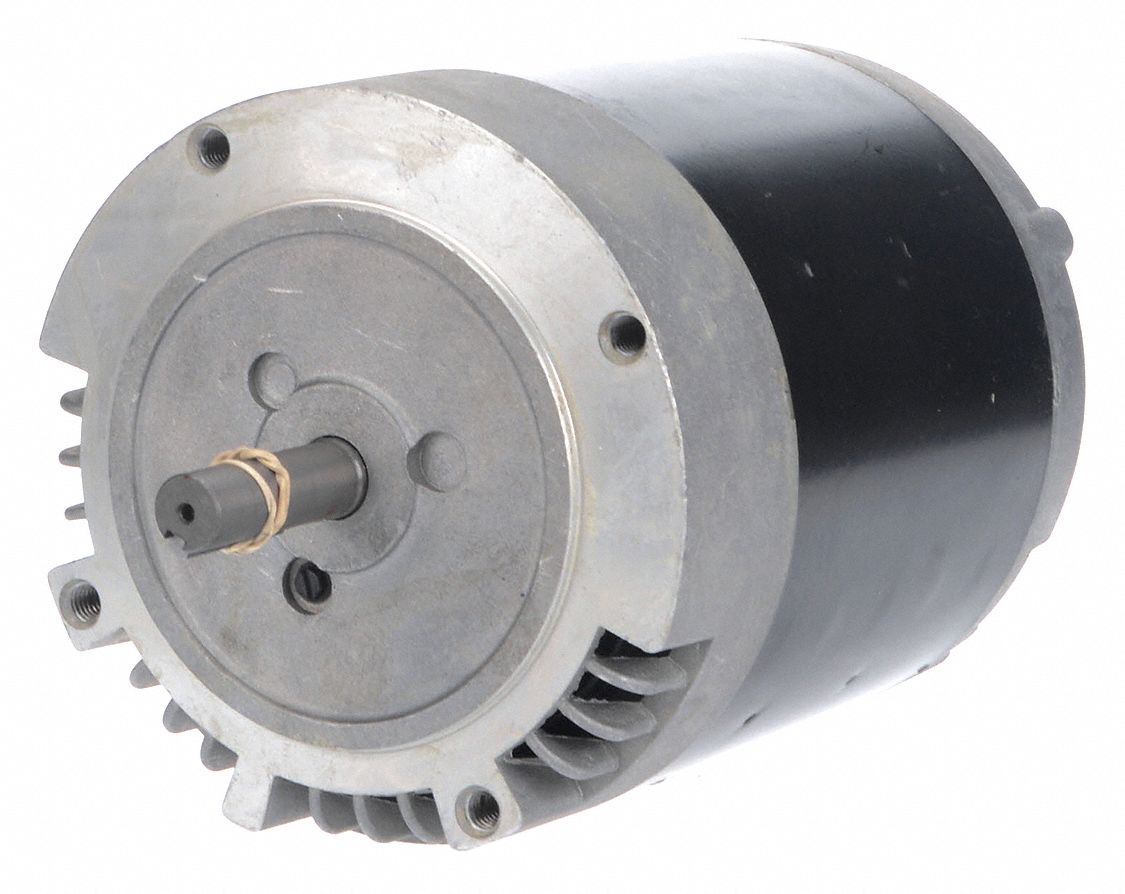

CENTURY F262 Motor Split Phase 1/3 Hp 1725 115v 56cz Odp
Get it by Thursday, Dec 25
10.00% off
€547.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Capacitor Included | No |
| Capacitor Required | No |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56CZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.4/2.3A |
| Hp | 1/3 hp, 1/10 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Aeration Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Holes | (4) 3/8"-16 |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1725 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 2 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Overall Length | 11 1/4" |
| Phase | 1 |
| Service Factor | 1.35 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | Keyed |
| Stud Size | 3/8"-16 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 23 lbs. |
Shipping Info:
| Ship weight (kg) | 23 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 22.86 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- HP @ Lower RPM (1/10)
