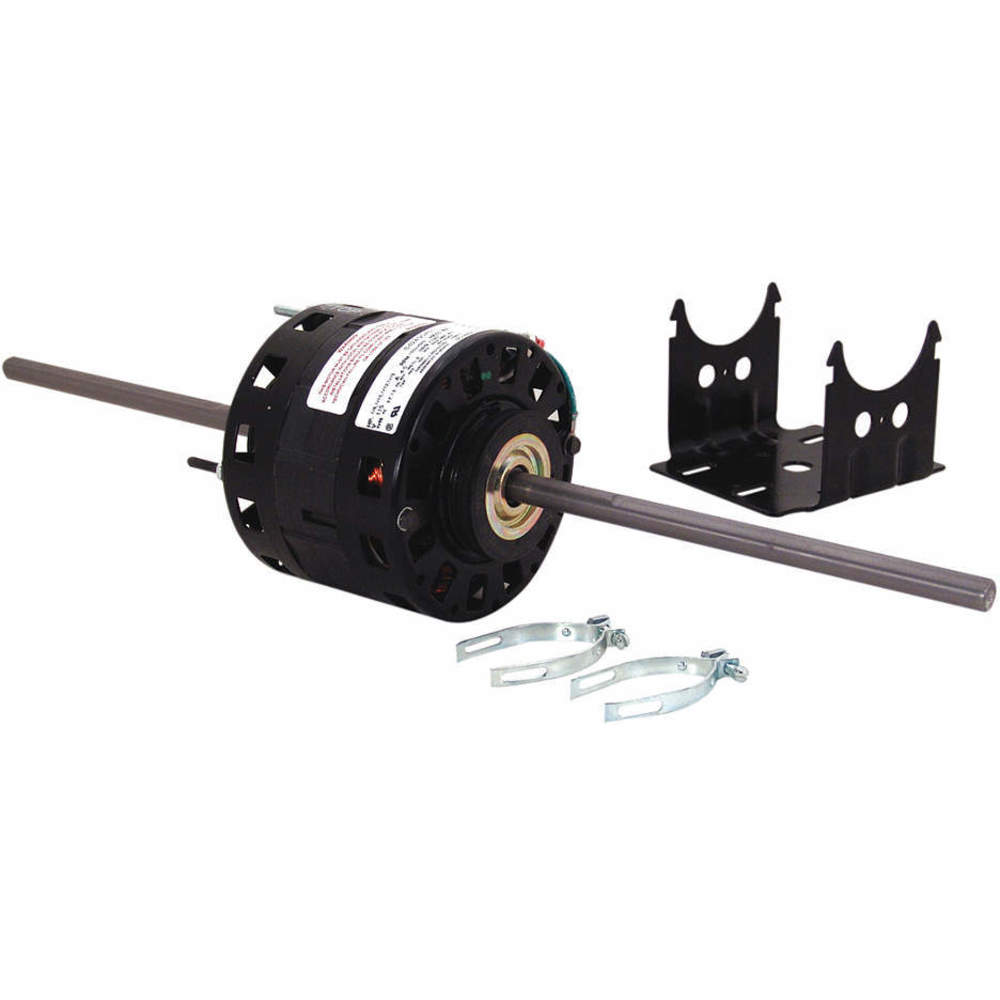

CENTURY DCL4423 Room Air Conditioner Motor Shaded Pole Oao 1550 Rpm
Get it by Tuesday, Dec 23
10.00% off
€279.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Room Air Conditioner Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Bolt Circle Dia. | 4 7/16" |
| Capacitor Required | No |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 42Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4A |
| Hp | 1/6 hp |
| Insulation Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 4 9/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Sub Application | Room Air Conditioner |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Cradle Base |
| Mounting Stud Pattern | 3 1/8" x 3 1/8" |
| Mounting Type | Ring |
| Nameplate Rpm | 1550 RPM |
| No. Of Shafts | 2 |
| No. Of Speeds | 4 |
| Number Of Shafts | 2 |
| Number Of Speeds | 4 |
| Overall Length | 20 15/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 4 9/16" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 8 1/2" |
| Shaft Type | Double Flat |
| Stud Pattern | 3 1/8" x 3 1/8" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 12 lbs. |
Shipping Info:
| Ship weight (kg) | 12 |
| Ship height (cm) | 17.3 |
| Ship length (cm) | 58.09 |
| Ship width (cm) | 17.3 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Type | Motor Shaft Rotation | Shaft Length | Frame | Nameplate Rpm | No. Of Speeds | Voltage | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DBL4404 | Shaded Pole | Counter Clockwise Lead End | 9 5/16" | 42Y | 1550 RPM | 3 | 115V AC | Cradle Base | €267.65 | |
 |
7DB6408 | Permanent Split Capacitor | Counter Clockwise Lead End | 9 19/64" | 42Y | 1050 RPM | 4 | 277V AC | Cradle Base | €315.17 | |
 |
OFC1024 | Permanent Split Capacitor | CCWLE | 7 11/16" | 42Y | 1625 RPM | 2 | 208-230V AC | Ring | - | RFQ
|
 |
747 | Permanent Split Capacitor | Counter Clockwise Lead End | 7 3/4" | 42 | - | 2 | 208-230V AC | - | - | RFQ
|
 |
RAL1006 | Permanent Split Capacitor | Counter Clockwise Lead End | 8 19/64" | 48Y | 1075 RPM | 3 | 115V AC | - | - | RFQ
|
|
RA1016 | Permanent Split Capacitor | Counter Clockwise Lead End | 8 19/64" | 48Y | 1075 RPM | 3 | 208-230V AC | - | - | RFQ
|
|
RA1026 | Permanent Split Capacitor | Counter Clockwise Lead End | 7 57/64" | 48Y | 1075 RPM | 3 | 208-230V AC | - | €360.94 |
