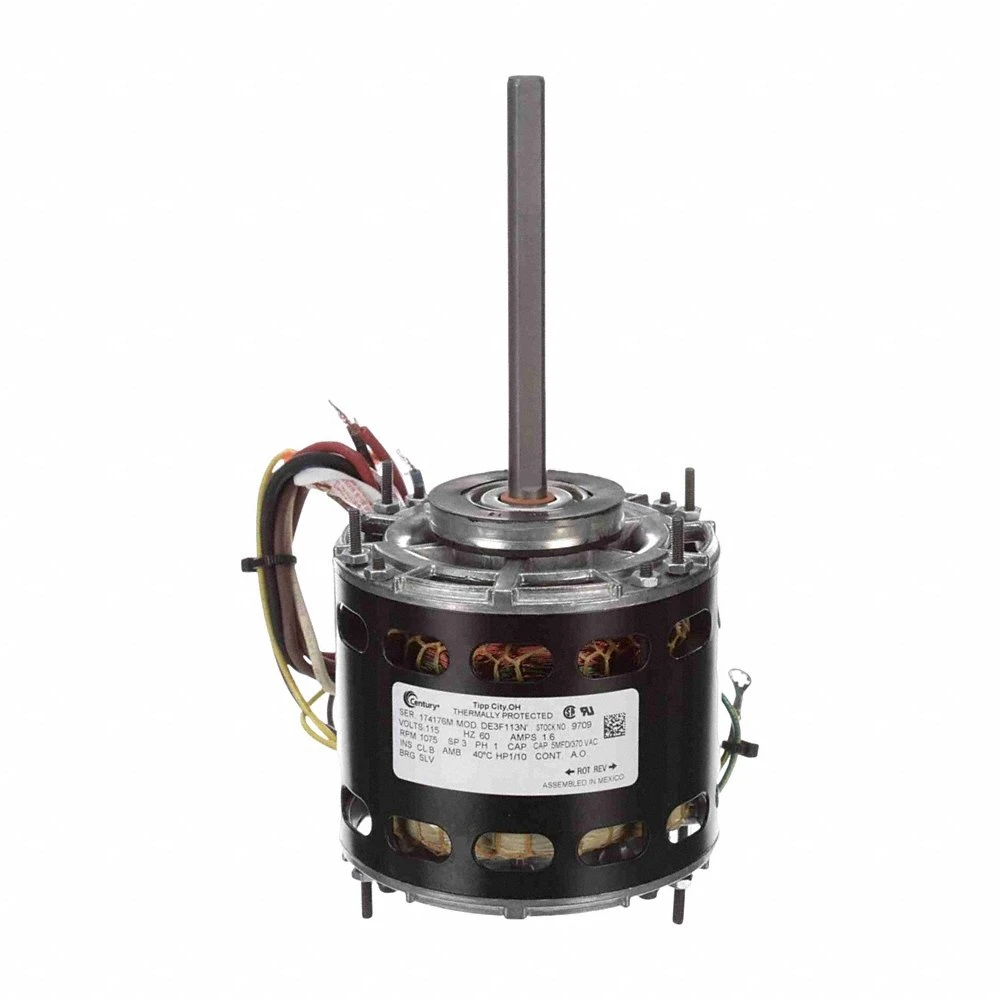

CENTURY DB6502V1A Direct Drive Blower Motor, 4 Speed, Rigid Base Mount, 1/10/1/15/1/20/1/25 HP
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€242.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Body Dia. | 5" |
| Capacitor Required | Capacitor Included |
| Frame | 42 |
| Full Load Amps | 0.33/0.52/0.75/0.42A |
| Insulation Class | Class B |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CCWLE |
| Motor Thermal Protection | Auto |
| Nameplate Horsepower @ 60 Hz | 1/10 hp, 1/20 hp, 1/15 hp, 1/25 hp |
| Nameplate Rpm @ 60 Hz | 1075 RPM |
| No. Of Shafts | 2 |
| No. Of Speed | 4 |
| Phase | Single |
| Shaft Dia. | 1/2" |
| Shaft Length | 18 11/16" |
| Speed | 1000 RPM to 1200 RPM |
| Usable @ 208 V | Yes, Usable at 208V |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 6.36 |
| Ship height (cm) | 16.36 |
| Ship length (cm) | 58.12 |
| Ship width (cm) | 15.88 |
| Country of Origin | MX |
