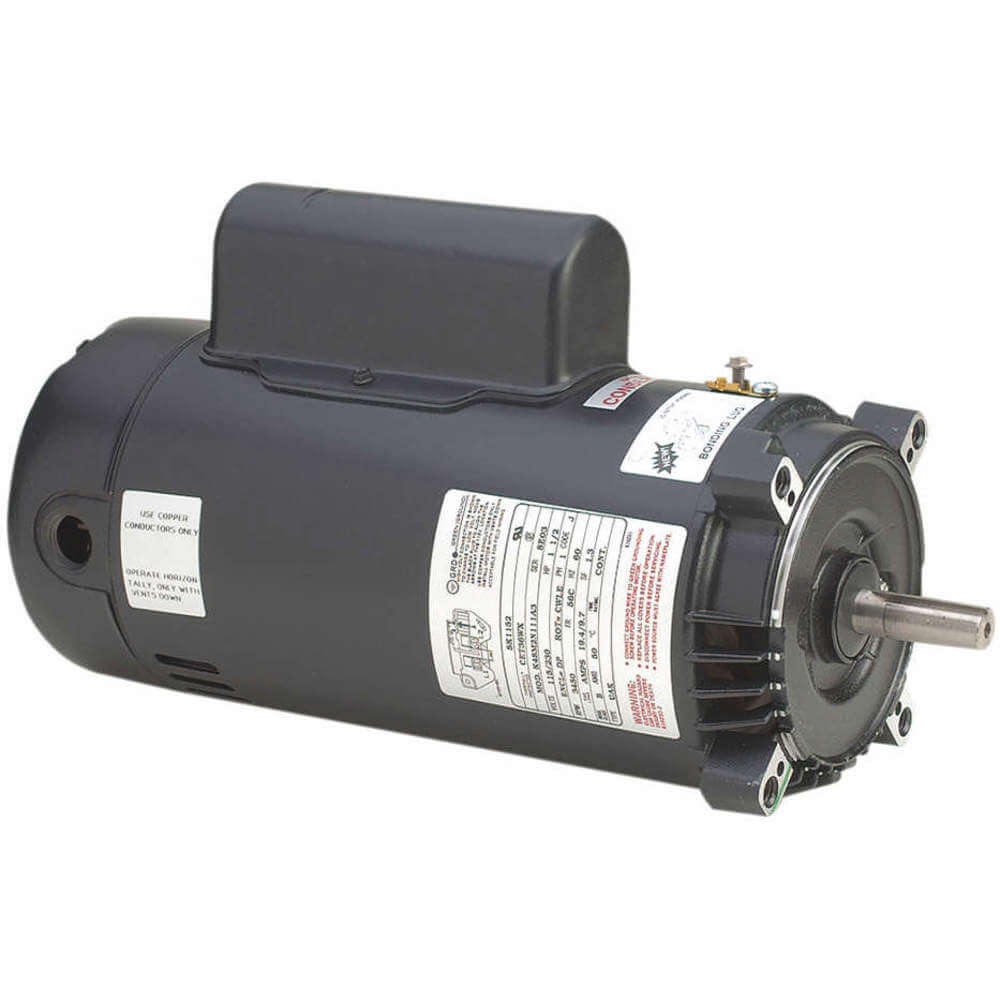

CENTURY CK1102 Pool Pump Motor 1 Hp 3450 Rpm 115/230vac
Get it by Monday, Aug 17
€646.36 /unit
This product can only be shipped in multiples of 3Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pool and Spa Pump Motor |
| Body Dia. | 5 3/5" |
| Color | Black |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Finish | Black |
| Flange Material | Aluminum |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 6.8/13.6A |
| Height | 11" |
| Insulation Class | Class B |
| Length Less Shaft | 12 1/8" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Mounting Type | C Face Footless |
| Motor Service Factor | 1.4 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pool And Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start, Run |
| Nameplate Speed | 3450 RPM |
| No. Of Speeds | 1 |
| Overall Height | 11" |
| Overall Length | 14 3/16" |
| Phase | 1 |
| Service Factor | 1.4 |
| Service Factor Amps | 13.6/6.8A |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/8" |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 303 |
| Shaft Type | Keyed |
| Usable @ 200v | No |
| Usable @ 208v | No |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 24.13 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Model | Service Factor Amps | Voltage | No. Of Speeds | Nameplate Speed | Shaft Material | Hp | Frame | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| USN1202 | 20.4/11-10A | 115/208-230V AC | 1 | 3450 RPM | Stainless Steel | 2 hp | 56J | Permanent Split Capacitor | €812.89 | |
| USN1152 | 10.2-11/20.4A | 115/208-230V AC | 1 | 3450 RPM | Stainless Steel | 1 1/2 hp | 56J | Permanent Split Capacitor | €728.18 | |
| SN1202 | 11.8-13A | 208-230V AC | 1 | - | - | 2 hp | 56J | Permanent Split Capacitor | €991.12 | |
| SN1152 | 20.4/11-10A | 115/208-230V AC | 1 | 3450 RPM | Stainless Steel | 1 1/2 hp | 56J | Capacitor Start | €867.80 | |
| SN1102 | 15.6/8.5-7.8A | 115/208-230V AC | 1 | 3450 RPM | Stainless Steel | 1 hp | 56J | Capacitor Start | €685.43 | |
| SN1072 | 11/6-5.5A | 115/208-230V AC | 1 | 3450 RPM | Stainless Steel | 3/4 hp | 56J | Capacitor Start | €710.60 | |
| USN1302 | 14.8-16A | 208-230V AC | 1 | 3450 RPM | Stainless Steel | 3 hp | 56J | Permanent Split Capacitor | €1,311.81 |
