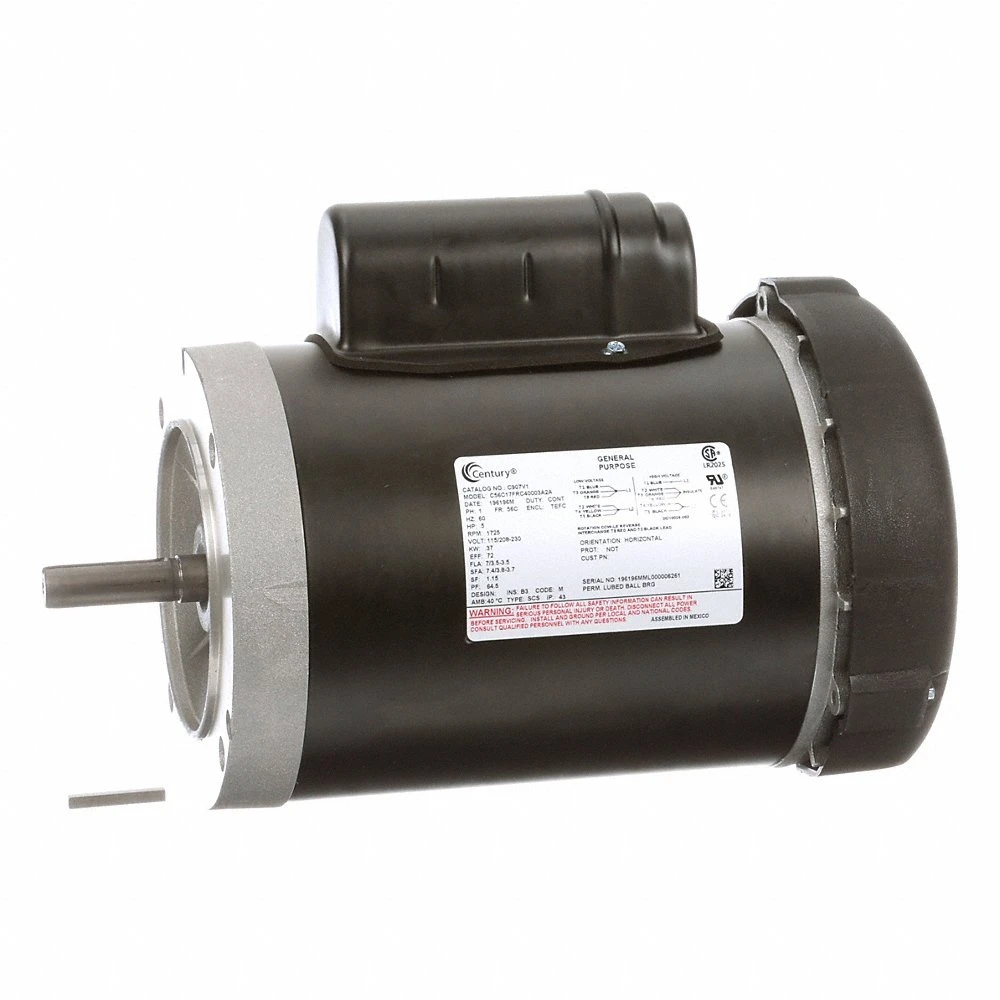

CENTURY C907V1 General Purpose Motor, Single Ph, 1/2 HP, 115/208-230V AC, 56C Frame Size, 1725 RPM
Get it by Monday, Aug 24
€799.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Drive End | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed |
| Frame | 56C |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 7/3.5A |
| Hertz | 60 Hz |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Material | Rolled Steel |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | C-Face, Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW, CCW |
| Mounting Location | Round |
| No. Of Speeds | 1 |
| Nominal Voltage | 115/208-230V AC |
| Phase | 1 |
| Rotation | Selective Counterclockwise |
| Service Factor | 1.15 |
| Shaft Dia. | 0.625 |
| Speed | 1400-1800 RPM |
| Thermal Protection | No |
| Usable @ 208 V | Yes |
| Voltage | 115V/208-230V |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
