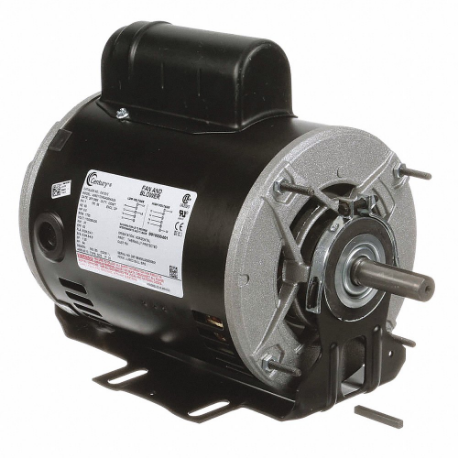

CENTURY C412V2 Belt Drive Motor, 1 Speed, Open Dripproof, Cradle Base Mount, 1/2 HP, 1, 725 Nameplate RPM
Get it by Tuesday, Dec 23
10.00% off
€568.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 6 9/16" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 62% |
| Frame | 56 |
| Frame Material | Steel |
| Full Load Amps | 8.2/4.1-4A |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 9 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 62% |
| Number Of Speeds | 1 |
| Overall Length | 11 1/2" |
| Phase | Single |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Weight | 27 lbs. |
Shipping Info:
| Ship weight (kg) | 27 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 20.32 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Nameplate Rpm | Full Load Amps | Phase | Hp | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
03739 | - | - | - | - | - | - | - | - | €445.28 | |
 |
03731 | - | - | - | - | - | - | - | - | €693.35 | |
|
06493 | - | - | - | - | - | - | - | - | €372.19 | |
 |

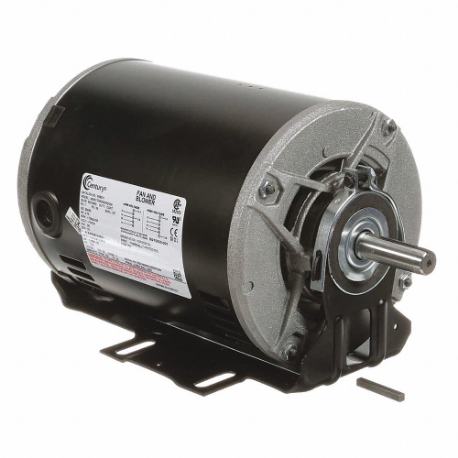

F680V1 | Open Dripproof | 115/230V AC | 1725 RPM | 10.4/5.2A | Single | 3/4 hp | Cradle Base | Split Phase | €587.96 | |
 |

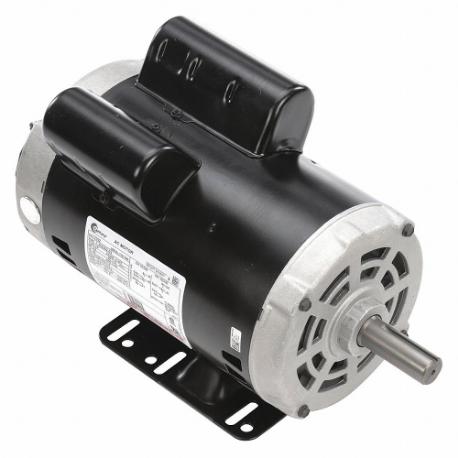

V102 | Open Dripproof | 208-230/115V AC | 1745 RPM | 10-10.2/20.4A | - | - | Rigid Base | Capacitor Start | €1,071.34 | |
 |

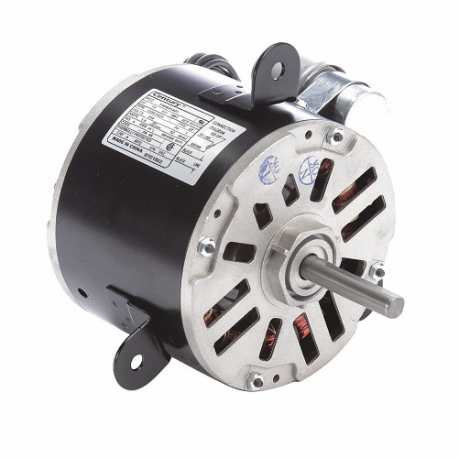

OTC1862 | Semi Enclosed Air Over | 230V AC | 1350/1625 RPM | 1.9A | Single | 1/4 hp | Lug | Permanent Split Capacitor | €423.48 | |
 |

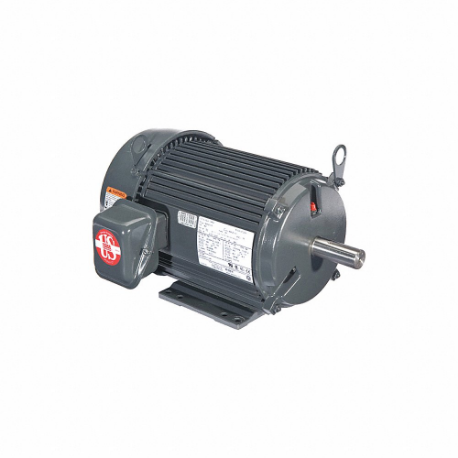

U32L9C | Totally Enclosed Fan Cooled | 460V AC | 1740/860 RPM | 2.4A | 3 | 1 1/2 hp, 3/8 hp | Rigid Base | Three Phase | €1,401.04 |
