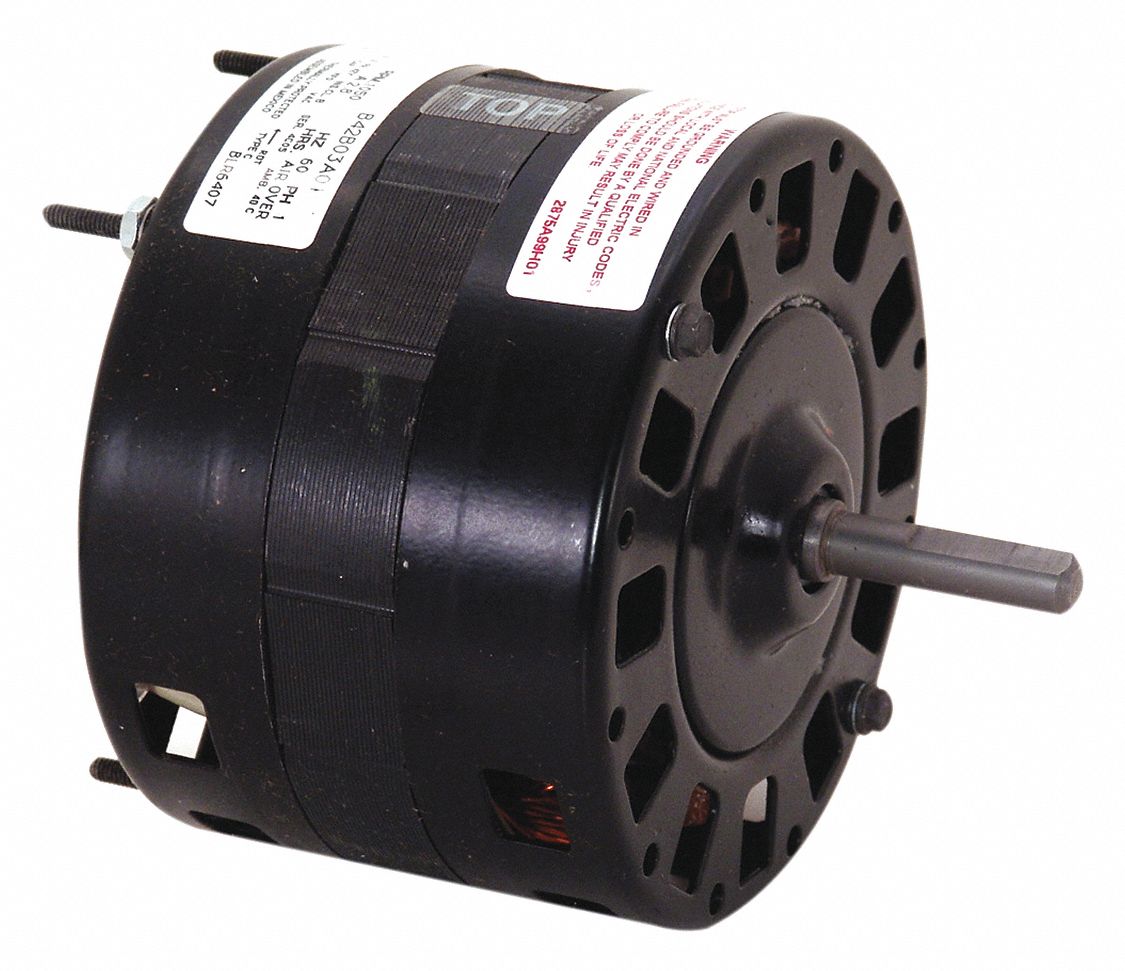

CENTURY BLR6407 Motor Shaded Pole 1/15 Hp 1050 115v 42y Oao
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€171.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Sleeve |
| Body Dia. | 5" |
| Bolt Circle Dia. | 4 7/16" |
| Capacitor Included | No |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Frame | 42Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.08A |
| Hp | 1/15 hp |
| Insulation Class | Class B |
| Lead Length | 20" |
| Length Less Shaft | 3 15/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Holes | 4 |
| Mounting Stud Location | Opposite Shaft End |
| Mounting Stud Pattern | 2 1/4" x 3 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1050 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Mounting Holes | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 5 1/4" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 3/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Flat |
| Standards | Csa, Ul |
| Stud Location | Opposite Shaft End |
| Stud Pattern | 2 1/4" x 3 7/8" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Weight | 7 lbs. |
Shipping Info:
| Ship weight (kg) | 7 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 22.53 |
| Ship width (cm) | 14.76 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Motor Type | Motor Mounting Type | Shaft Dia. | Shaft Length | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BL6410 | 115V AC | 1/8 hp | 1050 RPM | Shaded Pole | Ring | 1/2" | 5 1/2" | Counter Clockwise Lead End | €222.56 | |
 |
BL6416 | 115V AC | 1/5 hp | 1050 RPM | Shaded Pole | Ring | 1/2" | 2 11/16" | Counter Clockwise Lead End | €279.02 | |
 |
B6415 | 208-230V AC | 1/5 hp, 1/8 hp, 1/10 hp | 1050 RPM | Shaded Pole | Ring | 1/2" | 5 1/2" | Counter Clockwise Lead End | €274.49 | |
 |
B6507 | 230V AC | 1/5 hp | 1075 RPM | Permanent Split Capacitor | Ring | 1/2" | 5 1/2" | Clockwise/Counter Clockwise | €254.79 | |
 |
9644 | 115V AC | 1/8 hp | 1075 RPM | Permanent Split Capacitor | Ring | 1/2" | 6 1/2" | Clockwise/Counter Clockwise | €289.92 | |
 |
BL6505V1 | 115V AC | 1/5 hp | 1075 RPM | Permanent Split Capacitor | Ring | 1/2" | 5 1/2" | Clockwise/Counter Clockwise | - | RFQ
|
 |
BL6519V1 | 115V AC | 1/4 hp | 1075 RPM | Permanent Split Capacitor | Ring, Stud | 1/2" | 4 11/16" | Clockwise/Counter Clockwise | - | RFQ
|
