CENTURY B386 Air Compressor Motor, Rigid Base Mount, Open Dripproof, 5 HP, 3, 450 Nameplate RPM
Get it by Wednesday, Dec 24
10.00% off
€925.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Compressor Motor |
| Ambient Temp. | 40°C |
| Application | Air Compressor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Features | Heavy-Duty Construction Ensures Motor Durability, High Starting Torque On Start-Up, To Achieve A Higher Starting Load Required In Air Compressor Applications |
| Frame | 56HZ |
| Full Load Amps | 22A |
| Hp | 5 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 12 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | Air Compressor |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise |
| Motor Sub Application | General Puspose |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 14 9/16" |
| Phase | Single |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 5/16" |
| Standards | Csa, Ul Listed |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 47 lbs. |
Shipping Info:
| Ship weight (kg) | 47 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 30.48 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Phase | Nameplate Rpm | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C771 | Open | 200-230/460V AC | Single | 1075 RPM | 3.3/6.6A | Band | Permanent Split Capacitor | 1 | €1,022.33 | |
 |
DBL6409 | Open Air Over | 115V AC | Single | 1050 RPM | 1.6/1.9/2.2/2.8/3.5A | Resilient Base | Single Phase | 1 | €295.86 | |
 |
H697V1 | Totally Enclosed Air Over | 200-230/460V AC | 3 | 1140 RPM | 5.4-5.6/2.8A | Face | Three Phase | 1.15 | €1,120.62 | |
 |
FB1056 | Open Air Over | 208-230/460V AC | Single | 1075 RPM | 4/2A | - | - | - | €711.21 | |
 |
FB1076 | Open Air Over | 208-230/460V AC | Single | 1075 RPM | 5/2.5A | - | - | - | €961.79 | |
 |
FB1106 | Open Air Over | 208-230/460V AC | Single | 1075 RPM | 7.6/3.8A | - | - | - | €1,150.62 | |
 |

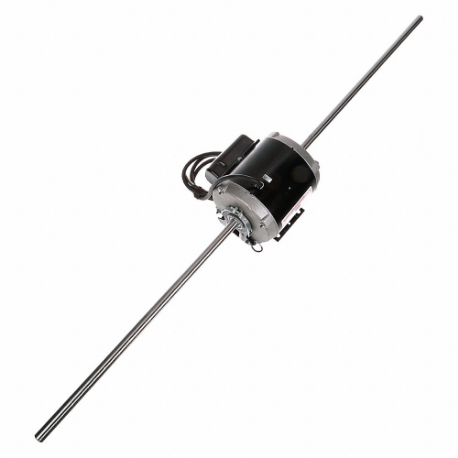

C034 | Totally Enclosed Air Over | 115V AC | Single | 800 RPM | 3A | Cushion Base | Permanent Split Capacitor | 1 | €1,549.57 |
