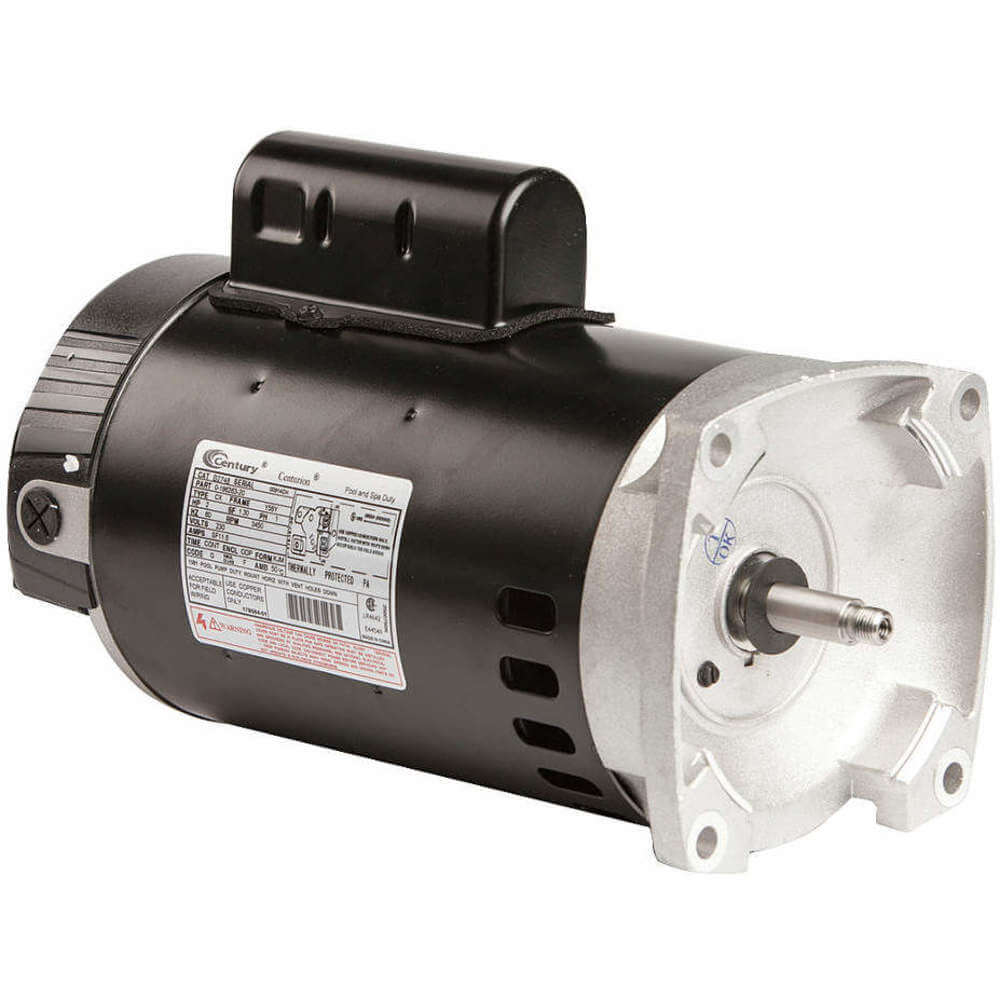

CENTURY B2748 Pump Motor 2 Hp 3450 230 V 56y Odp
Get it by Tuesday, Dec 23
10.00% off
€785.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Square Flange Pool Pump Motor |
| Bearing Type | Ball |
| Bolt Circle Dia. | 7 1/8" |
| Color | Black |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Finish | Black |
| Frame | 56Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 11.5A |
| Height | 9" |
| Hp | 2 hp |
| Includes | 30 MFD 370V AC 50/60Hz Capacitor |
| Insulation Class | Class F |
| Length | 13 3/8" |
| Length Less Shaft | 12 1/2" |
| Max. Ambient Temp. | 50°C |
| Max. Sf Amps | 11.5A |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.3 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Face |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 13 3/8" |
| Phase | 1 |
| Rpm | 3450 RPM |
| Service Factor | 1.3 |
| Service Factor Amps | 11.5A |
| Shaft Dia. | 5/8" |
| Shaft Length | 1" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Weight | 33 lbs. |
Shipping Info:
| Ship weight (kg) | 33 |
| Ship height (cm) | 22.89 |
| Ship length (cm) | 40.59 |
| Ship width (cm) | 27.28 |
| HS code | 8501406040 |
| Country of Origin | TH |
Product Variants
| Product | Model | Voltage | Hp | Rpm | Mounting Type | Service Factor | Frame | Phase | Motor Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B2983 | 230V AC | 1 1/2 hp, 1/6 hp | 3450/1725 RPM | Face | 1.47 | 56Y | 1 | Pool/Spa Motor | €941.45 | |
 |
B2984 | 230V AC | 2 hp, 1/4 hp | 3450/1725 RPM | Face | 1.3 | 56Y | 1 | Pump | €1,183.55 | |
 |
B2981 | 115V AC | 3/4 hp, 1/10 hp | 3450/1725 RPM | Face | 1.67 | 56Y | 1 | Pump | €818.28 | |
 |
B2982 | 230V AC | 1 hp, 1/10 hp | 3450/1725 RPM | Face | 1.65 | 56Y | 1 | Pump | €805.74 | |
 |
B2980 | 230V AC | 3/4 hp, 1/10 hp | 3450/1725 RPM | Face | 1.67 | 56Y | 1 | Pump | €761.79 | |
 |
SQ1302V1 | 208-230V AC | 3 hp | 3450 RPM | Face | 1.15 | 56Y | 1 | Pump | €1,082.18 | |
 |
H491 | 208-230/460V AC | 1/2 hp | 3450 RPM | Face | 1.9 | 56Y | 3 | Pump | €608.22 |
